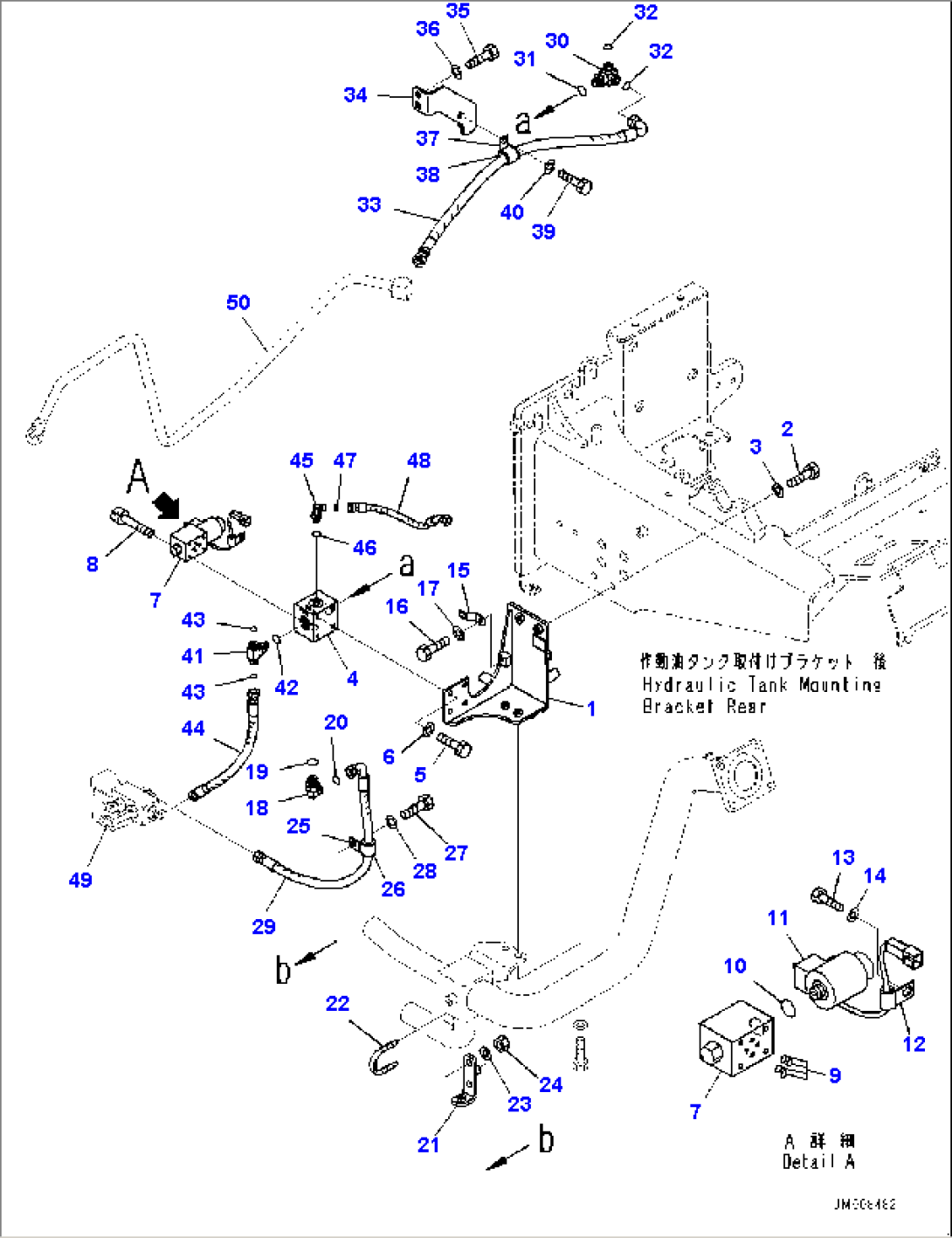

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-8L391 | Bracket | 30001- | |
| 2 | 01010-81235 | Bolt | 30001- | |
| 3 | 01643-31232 | Washer | 30001- | |
| 4 | 569-61-8M960 | Block | 30001- | |
| 5 | 01010-81020 | Bolt | 30001- | |
| 6 | 01643-31032 | Washer | 30001- | |
| 7 | 43A-60-16120 | Valve Assembly, Solenoid | 30001- | |
| 8 | 01252-70545 | Bolt, Hexagon Socket Head | 30001- | |
| 9 | 07000-11009 | O-ring | 30001- | |
| 10 | 07000-12018 | O-ring | 30001- | |
| 11 | 43A-60-16210 | Solenoid Assembly | 30001- | |
| 12 | 04434-51010 | Clip | 30001- | |
| 13 | 01010-81016 | Bolt | 30001- | |
| 14 | 01643-31032 | Washer | 30001- | |
| 15 | 08193-20010 | Clip | 30001- | |
| 16 | 01010-81020 | Bolt | 30001- | |
| 17 | 01643-31032 | Washer | 30001- | |
| 18 | 02782-10315 | Elbow | 30001- | |
| 19 | 07002-22034 | O-ring | 30001- | |
| 20 | 02896-21009 | O-ring | 30001- | |
| 21 | 569-61-8L440 | Bracket | 30001- | |
| 22 | 07283-34949 | Clip | 30001- | |
| 23 | 01643-31032 | Washer | 30001- | |
| 24 | 22P-70-12160 | Nut | 30001- | |
| 25 | 04434-52511 | Clip | 30001- | |
| 26 | 07095-20318 | Cushion | 30001- | |
| 27 | 01010-81016 | Bolt | 30001- | |
| 28 | 01643-31032 | Washer | 30001- | |
| 29 | 02766-00306 | Hose, Face Seal Type | 30001- | |
| 30 | 416-03-33840 | Elbow | 30001- | |
| 31 | 07002-22034 | O-ring | 30001- | |
| 32 | 02896-21012 | O-ring | 30001- | |
| 33 | 02766-004A7 | Hose, Face Seal Type | 30001- | |
| 34 | 569-61-8L381 | Bracket | 30001- | |
| 35 | 01010-81225 | Bolt | 30001- | |
| 36 | 01643-31232 | Washer | 30001- | |
| 37 | 04434-52712 | Clip | 30001- | |
| 38 | 07095-20419 | Cushion | 30001- | |
| 39 | 01010-81225 | Bolt | 30001- | |
| 40 | 01643-31232 | Washer | 30001- | |
| 41 | 207-62-72160 | Tee | 30001- | |
| 42 | 07002-21423 | O-ring | 30001- | |
| 43 | 02896-21009 | O-ring | 30001- | |
| 44 | 02765-003A4 | Hose, Face Seal Type | 30001- | |
| 45 | 02782-10210 | Elbow | 30001- | |
| 46 | 07002-21423 | O-ring | 30001- | |
| 47 | 02896-21008 | O-ring | 30001- | |
| 48 | 02776-00203 | Hose | 30001- | |
| 49 | (569-61-8B660) | Bracket | - | |
| 50 | (569-61-8A750) | Tube | - |
