| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-61-11110 | TUBE | 2001- | |
| 2 | 07000-F2075 | O-RING | 2001- | |
| 3 | 01010-81245 | BOLT | 2001- | |
| 4 | 01643-31232 | WASHER | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 2 s/n 2001 2784 (ecot3)
- Hydraulic system
- Hydraulic tank (tank to pump line)(#2001 )
Поиск по каталогу

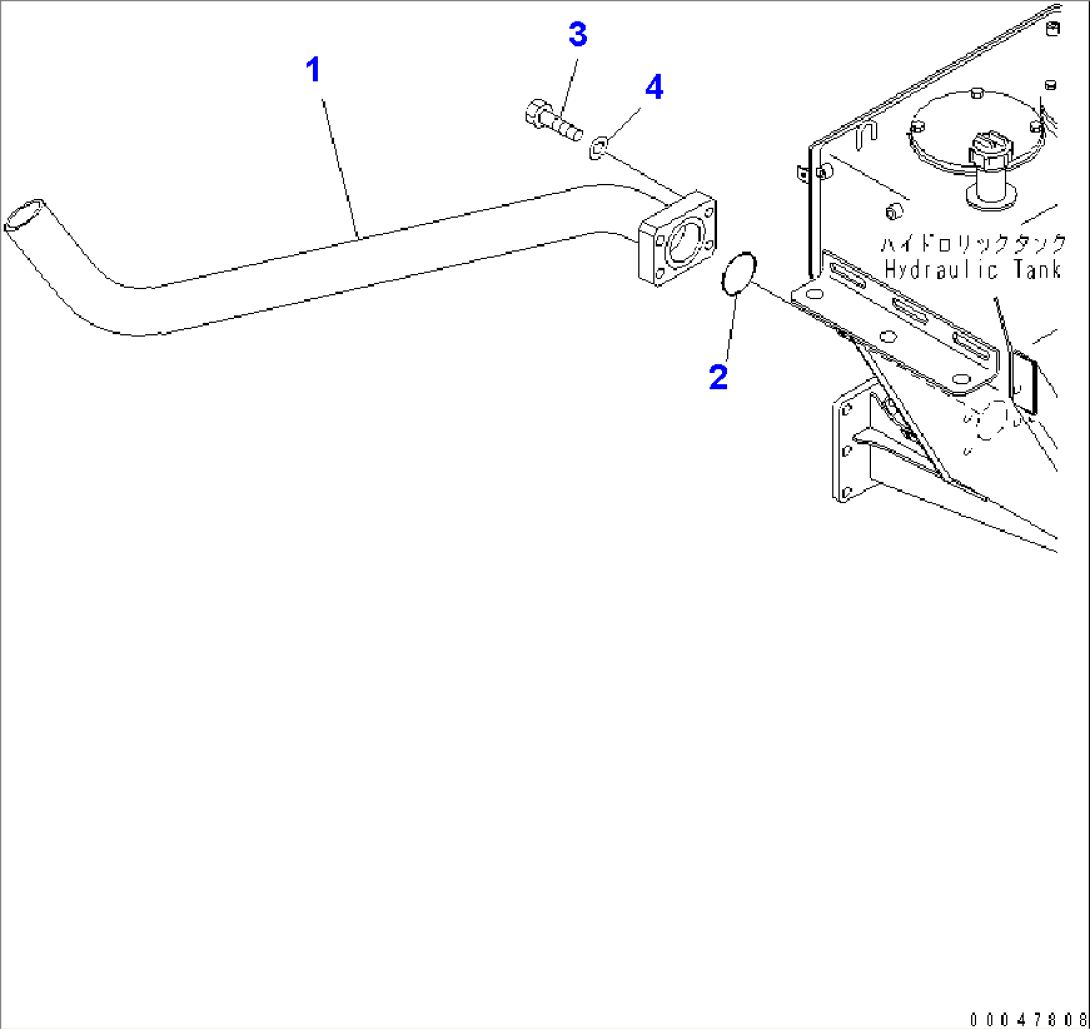

HYDRAULIC TANK (TANK TO PUMP LINE)(#2001-)
