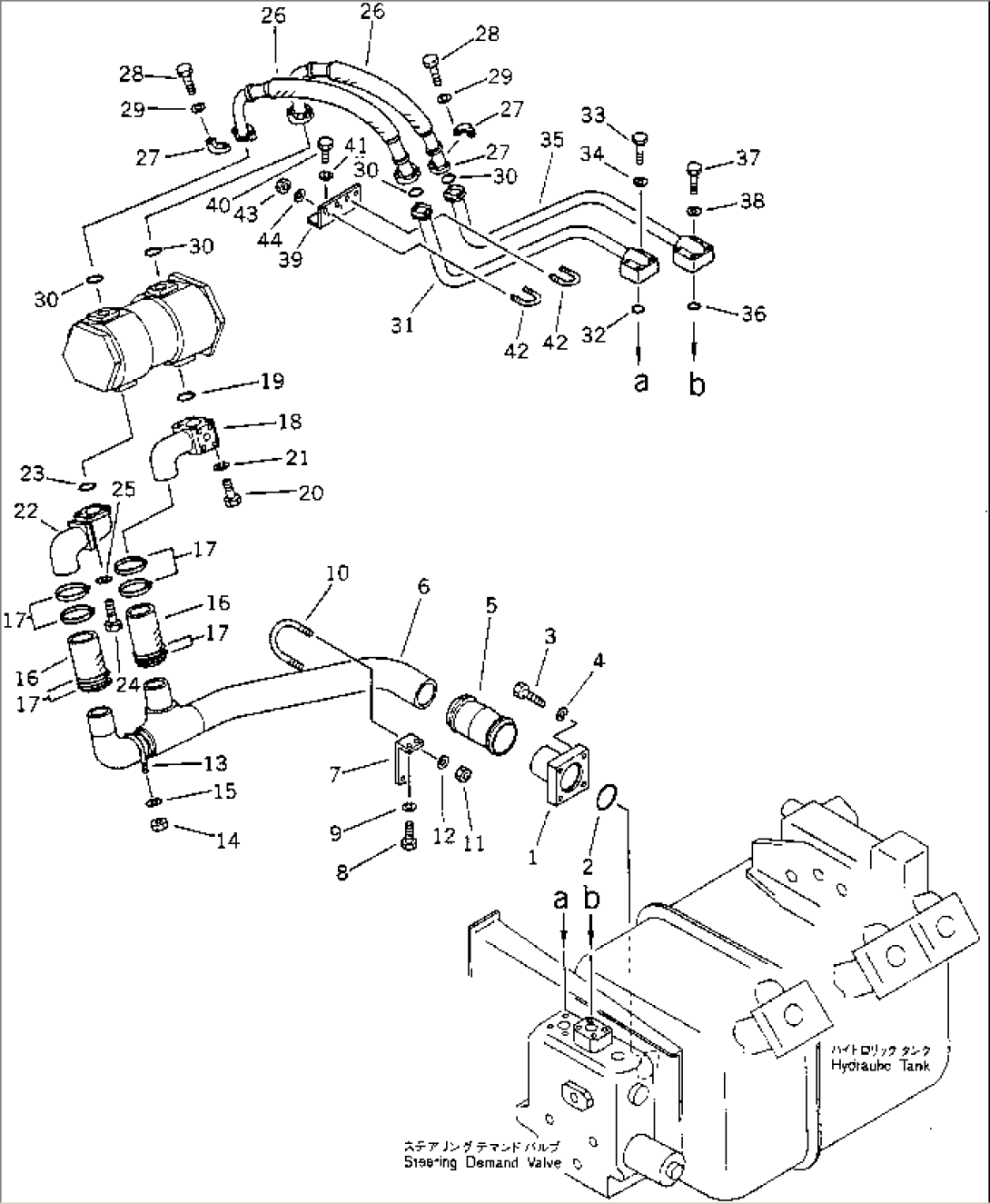

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-31110 | TUBE | 1002- | |
| 2 | 07000-02110 | O-RING | 1002- | |
| 3 | 01010-51650 | BOLT | 1002- | |
| 4 | 01602-21648 | WASHER | 1002- | |
| 5 | 07332-03400 | COUPLING | 1002- | |
| 6 | 561-61-31120 | TUBE | 1002- | |
| 7 | 561-61-31310 | BRACKET | 1002- | |
| 8 | 01010-51230 | BOLT | 1002- | |
| 9 | 01602-21236 | WASHER | 1002- | |
| 10 | 07283-21079 | CLIP | 1002- | |
| 11 | 01599-01214 | NUT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 07283-27671 | CLIP | 1002- | |
| 14 | 01599-01011 | NUT | 1002- | |
| 15 | 01643-31032 | WASHER | 1002- | |
| 16 | 07260-07422 | HOSE | 1002- | |
| 17 | 07281-01029 | CLAMP | 1002- | |
| 18 | 561-61-31130 | TUBE | 1002- | |
| 19 | 07000-12075 | O-RING | 1002- | |
| 20 | 01010-51240 | BOLT | 1002- | |
| 21 | 01602-21236 | WASHER | 1002- | |
| 22 | 561-61-31140 | TUBE | 1002- | |
| 23 | 07000-12070 | O-RING | 1002- | |
| 24 | 01011-51225 | BOLT | 1002- | |
| 25 | 01602-21236 | WASHER | 1002- | |
| 26 | 07118-01408 | HOSE | 1002- | |
| 27 | 07371-31645 | FLANGE | 1002- | |
| 28 | 07372-21245 | BOLT | 1002- | |
| 29 | 01602-21236 | WASHER | 1002- | |
| 30 | 07000-13048 | O-RING | 1002- | |
| 31 | 561-61-32110 | TUBE | 1002- | |
| 32 | 07000-13045 | O-RING | 1002- | |
| 33 | 01010-51485 | BOLT | 1002- | |
| 34 | 01602-21442 | WASHER | 1002- | |
| 35 | 561-61-32120 | TUBE | 1002- | |
| 36 | 07000-13045 | O-RING | 1002- | |
| 37 | 01011-51440 | BOLT | 1002- | |
| 38 | 01602-21442 | WASHER | 1002- | |
| 39 | 561-61-32310 | BRACKET | 1002- | |
| 40 | 01010-51225 | BOLT | 1002- | |
| 41 | 01602-21236 | WASHER | 1002- | |
| 42 | 07283-24346 | CLIP | 1002- | |
| 43 | 01599-01011 | NUT | 1002- | |
| 44 | 01643-31032 | WASHER | 1002- |
