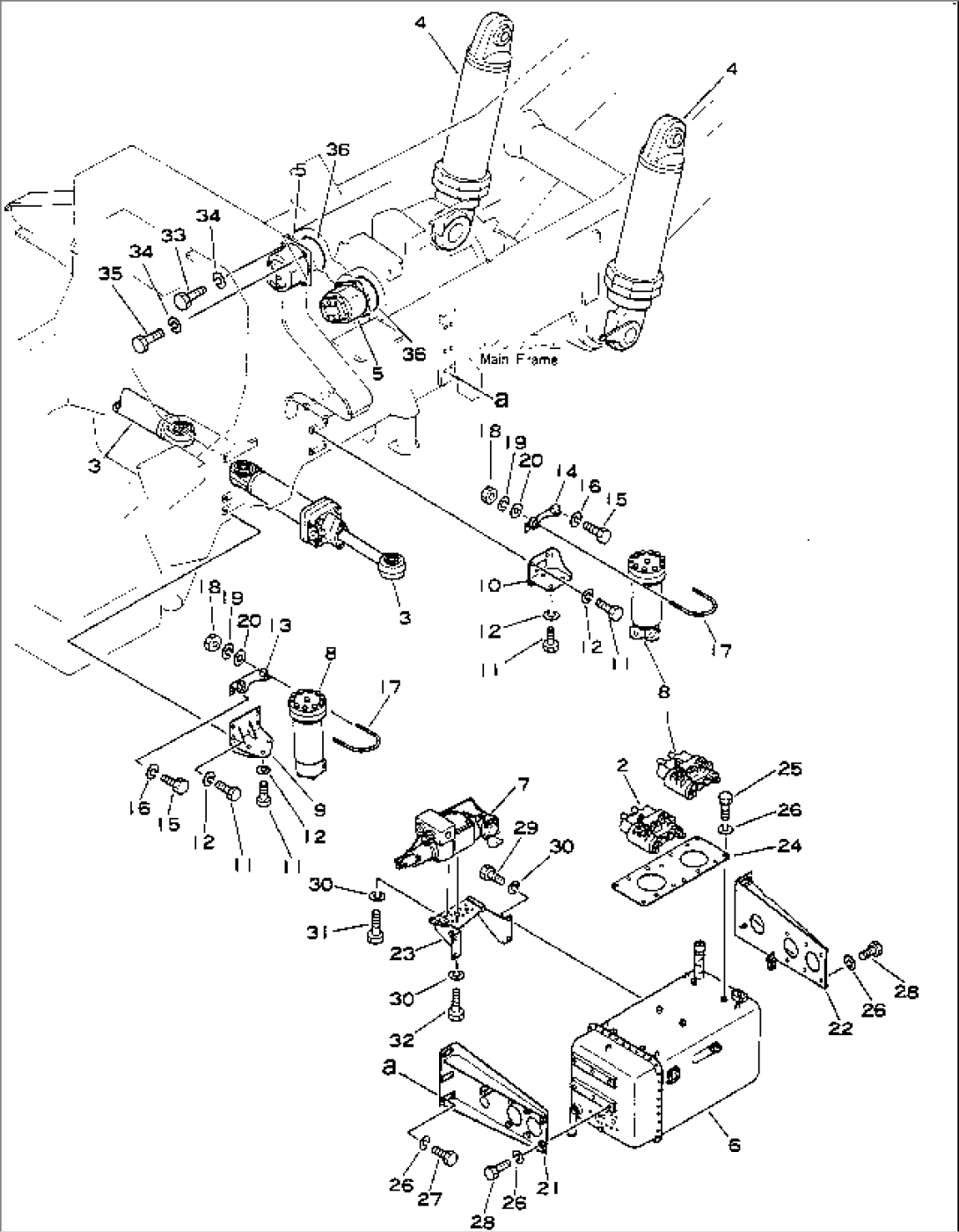

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (561-64-11000) | VALVE ASS'Y,DEMAND | 1002- | |
| 2 | (568-64-11001) | VALVE ASS'Y,DEMAND | 1002- | |
| 3 | (568-63-12101) | CYLINDER ASS'Y | 1002- | |
| 4 | (568-63-23101) | CYLINDER ASS'Y | 1002- | |
| 5 | (07448-66107) | HYDRAULIC PUMP ASS'Y | 1002- | |
| 6 | (561-60-11001) | TANK ASS'Y | 1002- | |
| 7 | (561-60-17000) | HOIST VALVE ASS'Y | 1002- | |
| 8 | (568-61-12500) | FILTER ASS'Y | 1002- | |
| 9 | 566-61-12190 | BRACKET | 1002- | |
| 10 | 568-61-12411 | BRACKET | 1002- | |
| 11 | 01010-51430 | BOLT | 1002- | |
| 12 | 01602-21442 | WASHER | 1002- | |
| 13 | 568-61-12670 | BRACKET | 1002- | |
| 14 | 568-61-12680 | BRACKET | 1002- | |
| 15 | 01010-51425 | BOLT | 1002- | |
| 16 | 01602-21442 | WASHER | 1002- | |
| 17 | 568-61-12690 | U-BOLT | 1002- | |
| 18 | 01580-11210 | NUT | 1002- | |
| 19 | 01602-21236 | WASHER | 1002- | |
| 20 | 01643-31232 | WASHER | 1002- | |
| 21 | 561-60-12111 | BRACKET | 1002- | |
| 22 | 561-60-12121 | BRACKET | 1002- | |
| 23 | 561-60-12130 | BRACKET | 1002- | |
| 24 | 561-60-12140 | PLATE | 1002- | |
| 25 | 01010-51635 | BOLT | 1002- | |
| 26 | 01602-21648 | WASHER | 1002- | |
| 27 | 01010-51660 | BOLT | 1002- | |
| 28 | 01010-51645 | BOLT | 1002- | |
| 29 | 01010-51235 | BOLT | 1002- | |
| 30 | 01602-21236 | WASHER | 1002- | |
| 31 | 01010-51230 | BOLT | 1002- | |
| 32 | 01010-51240 | BOLT | 1002- | |
| 33 | 01010-51455 | BOLT | 1002- | |
| 34 | 01602-21442 | WASHER | 1002- | |
| 35 | 01010-51445 | BOLT | 1002- | |
| 36 | 07000-22095 | O-RING | 1002- |
