| Item | Part No. | Part Name | Qty | Serial No. |

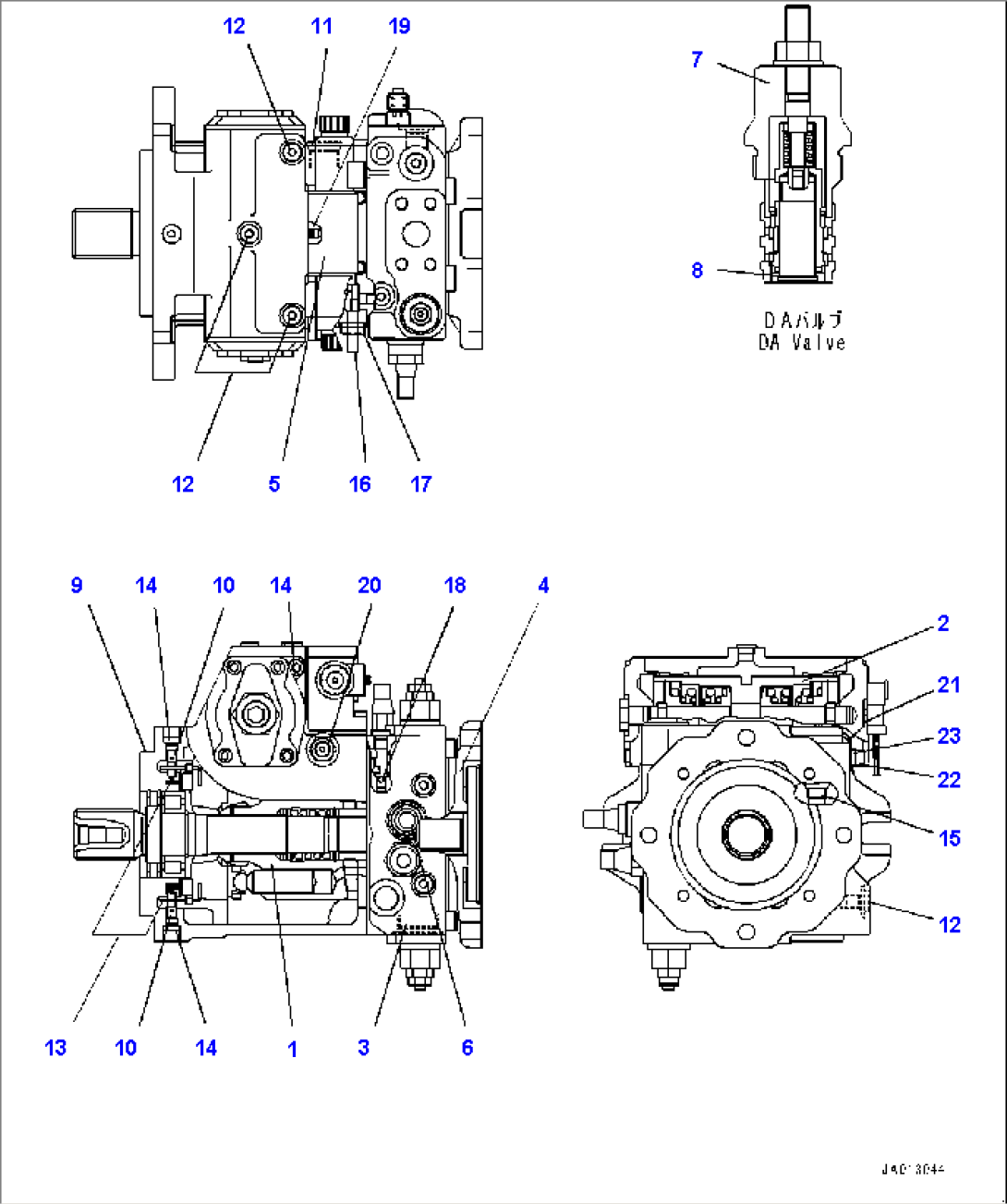

| 417-18-41101 | Pump | 71447- | ||
| 1 | (UC4100516369) | Rotary Group | 70883- | |
| 2 | (UC4020162421) | HD Control | 70883- | |
| 3 | (UC4100656147) | Cover | 70883- | |
| 4 | (UC4706068025) | Pump, Gear | 71447- | |
| 5 | (UC4020482808) | Valve | 70883- | |
| 6 | (UC4100707382) | Cartridge Assembly | 71447- | |
| 7 | (UC4720005354) | Cartridge | 71447- | |
| 8 | UC1704080282 | Orifice | 71447- | |
| 9 | UC1100679859 | Housing | 70883- | |
| 10 | UC1704497149 | Pin | 70883- | |
| 11 | UC4100104453 | Plug Assembly | 70883- | |
| 11 | Plug | 70883- | ||
| 11 | UC1301205004 | O-ring | 70883- | |
| 12 | UC4100104426 | Plug Assembly | 70883- | |
| 12 | Plug | 70883- | ||
| 12 | UC1301169009 | O-ring | 70883- | |
| 13 | UC1701544279 | Pin, Clamp | 70883- | |
| 14 | UC1701533646 | Plug | 70883- | |
| 15 | UC1700879134 | Plug | 70883- | |
| 16 | (UC1720356169) | Screw | 70883- | |
| 17 | (UC1700874056) | Nut, Lock, Seal | 70883- | |
| 18 | UC1704267067 | Orifice | 70883- | |
| 19 | UC1181066129 | Orifice | 70883- | |
| 20 | UC4100695445 | Bushing Assembly | 70883- | |
| 20 | Bushing | 70883- | ||
| 20 | UC1301181009 | O-ring | 70883- | |
| 21 | UC1100695026 | Bracket | 70883- | |
| 22 | UC1301564009 | Bolt | 71447- | |
| 23 | UC1700805179 | Shim | 71447- |
