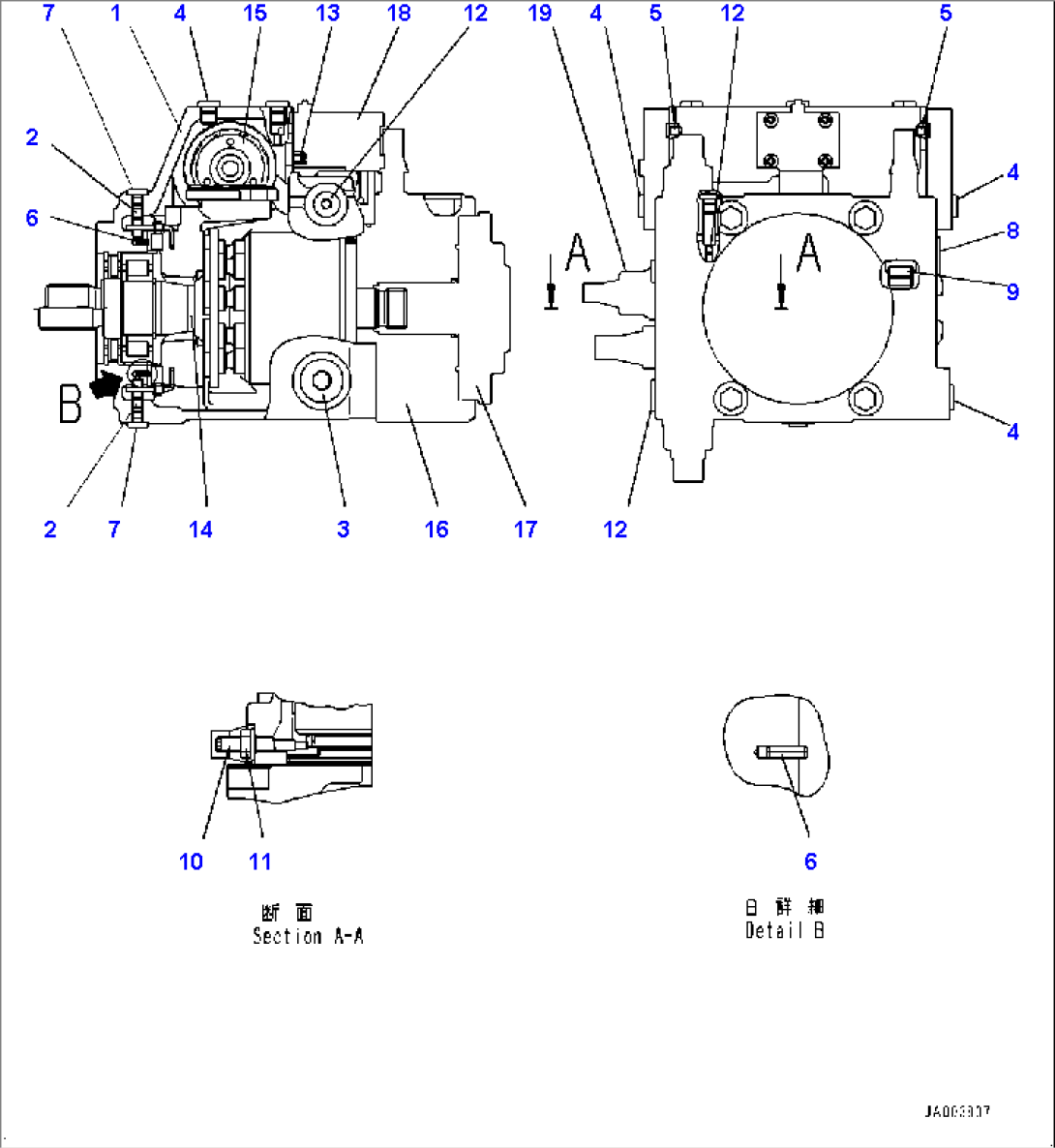

| Item | Part No. | Part Name | Qty | Serial No. |
| 416-18-41601 | Pump Assembly | 80712- | ||
| 416-18-41600 | Pump Assembly | 80001-80711 | ||
| 1 | UC1100679849 | Housing | 80001- | |
| 2 | UC1704497149 | Pin | 80001- | |
| 3 | UC4100104453 | Plug Assembly | 80001- | |
| 3 | Plug | 80001- | ||
| 3 | UC1301205004 | O-ring | 80001- | |
| 4 | UC4100104426 | Plug Assembly | 80001- | |
| 4 | Plug | 80001- | ||
| 4 | UC1301169009 | O-ring | 80001- | |
| 5 | UC1701538797 | Plug | 80001- | |
| 6 | UC1701565799 | Pin, Spring | 80001- | |
| 7 | UC1701533646 | Plug | 80001- | |
| 8 | UC4100104444 | Plug | 80001- | |
| 8 | Plug | 80001- | ||
| 8 | UC1301190003 | O-ring | 80001- | |
| 9 | UC1700879134 | Plug | 80001- | |
| 10 | (UC1704361316) | Screw | 80001- | |
| 11 | (UC1700874056) | Nut, Lock, Seal | 80001- | |
| 12 | UC1701564979 | Orifice | 80001- | |
| 13 | UC1701564934 | Orifice | 80001- | |
| 14 | (UC4100567285) | Rotary Group | - | |
| 15 | (UC4020160773) | HD Control | - | |
| 16 | (UC4100693926) | Plate | - | |
| 17 | (UC4706066643) | Pump Assembly, Gear | - | |
| 18 | (UC4720446755) | Valve | - | |
| 19 | (UC4094147197) | Cartridge Assembly | - |
