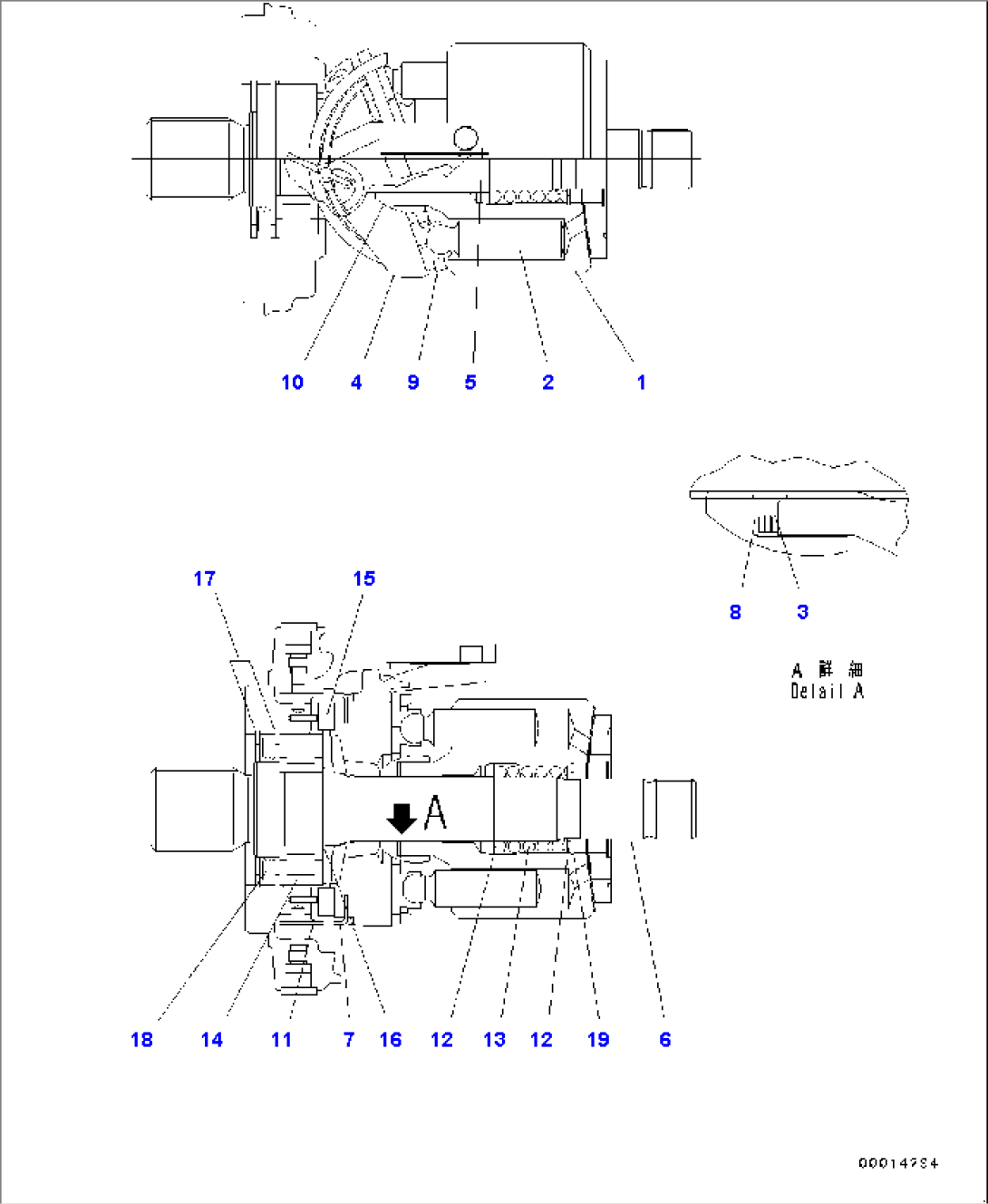

| Item | Part No. | Part Name | Qty | Serial No. |
| 416-18-41601 | Pump Assembly | 80712- | ||
| 416-18-41600 | Pump Assembly | 80001-80711 | ||
| (UC4100567285) | Rotary Group | 80001- | ||
| 1 | UC4100663512 | Cylinder Block | 80001- | |
| 1 | Cylinder Block | 80001- | ||
| 1 | UC1100566065 | Plate | 80001- | |
| 2 | (UC4704167368) | Piston | 80001- | |
| 3 | UC1709219018 | Spring | 80001- | |
| 4 | UC1704433613 | Hanger | 80001- | |
| 5 | UC1704498106 | Guide | 80001- | |
| 6 | UC1709219366 | Shaft | 80001- | |
| 7 | UC1700762339 | Lever | 80001- | |
| 8 | (UC1704329871) | Shim | 80001- | |
| 8 | (UC1704329889) | Shim | 80001- | |
| 8 | (UC1704329899) | Shim | 80001- | |
| 8 | (UC1704329909) | Shim | 80001- | |
| 9 | (UC1709219045) | Retainer | 80001- | |
| 10 | (UC1709219054) | Guide | 80001- | |
| 11 | UC1020665868 | Bearing | 80001- | |
| 12 | UC1709219036 | Shim | 80001- | |
| 13 | UC1704352541 | Spring | 80001- | |
| 14 | UC1701531044 | Bearing | 80001- | |
| 15 | UC1708301529 | Bearing | 80001- | |
| 16 | UC1302133001 | Ring | 80001- | |
| 17 | UC1726000019 | Washer | 80001- | |
| 18 | UC1026017944 | Seal, Oil | 80001- | |
| 19 | UC1700834039 | Washer | 80001- |
