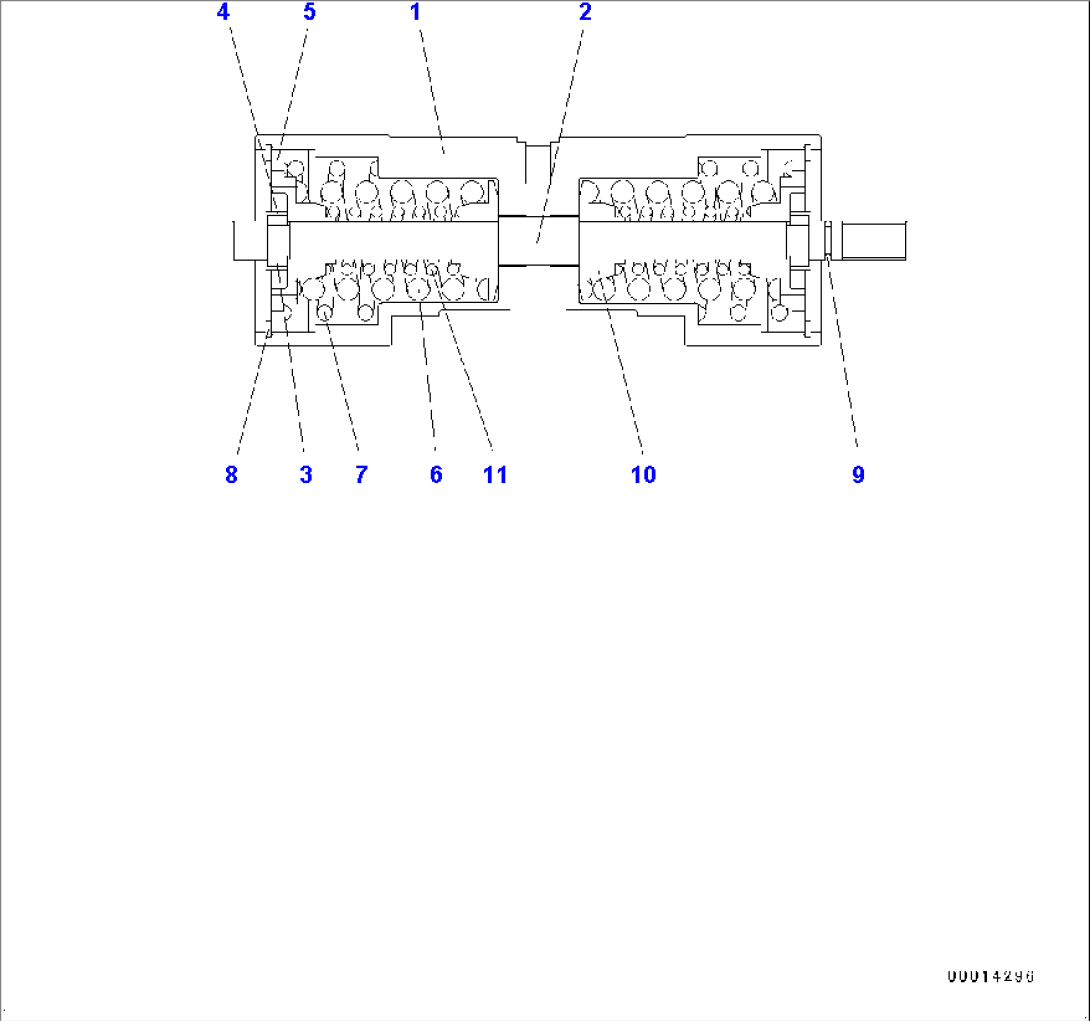

| Item | Part No. | Part Name | Qty | Serial No. |
| 416-18-41601 | Pump Assembly | 80712- | ||
| 416-18-41600 | Pump Assembly | 80001-80711 | ||
| (UC4020160773) | HD Control | 80001- | ||
| (UC4020255248) | Piston | 80001- | ||
| 1 | (UC1020088766) | Piston | 80001- | |
| 2 | (UC1704492391) | Rod | 80001- | |
| 3 | (UC1720155085) | Ring | 80001- | |
| 3 | (UC1720134932) | Ring | 80001- | |
| 3 | (UC1720155094) | Ring | 80001- | |
| 3 | (UC1720155104) | Ring | 80001- | |
| 3 | (UC1720155113) | Ring | 80001- | |
| 3 | (UC1720155122) | Ring | 80001- | |
| 3 | (UC1720155149) | Ring | 80001- | |
| 3 | (UC1720155131) | Ring | 80001- | |
| 4 | UC1726004891 | Ring | 80001- | |
| 5 | UC1720201014 | Collar | 80001- | |
| 6 | UC1704328869 | Spring | 80001- | |
| 7 | UC1704328988 | Spring | 80001- | |
| 8 | (UC1700845571) | Washer | 80001- | |
| 9 | UC1300030001 | O-ring | 80001- | |
| 10 | UC1704492483 | Collar | 80001- | |
| 11 | UC1704328859 | Spring | 80001- |
