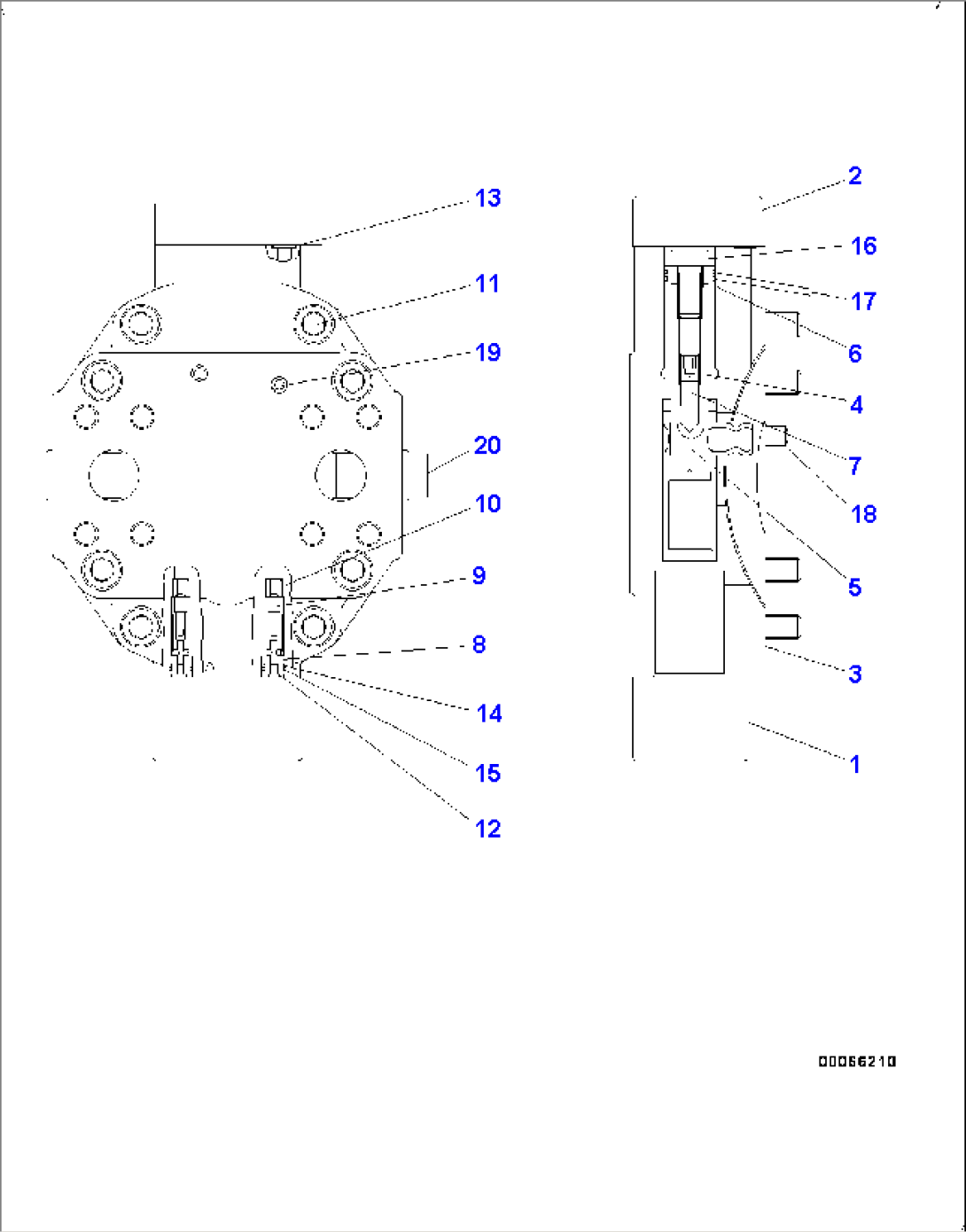

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31203 | Motor | |||
| UC4706037791 | Cylinder Block | |||
| 1 | (UC1720068844) | Cylinder Block | ||
| 2 | (UC1709217874) | Plate | ||
| 3 | (UC1709215089) | Pin, Center | ||
| 4 | UC4720219021 | Piston Assembly | ||
| 5 | (UC1100590857) | Shim, T=3.3mm | ||
| 5 | (UC1100590866) | Shim, T=3.4mm | ||
| 5 | (UC1709215263) | Shim, T=3.5mm | ||
| 5 | (UC1020273331) | Shim, T=3.6mm | ||
| 5 | (UC1020273322) | Shim, T=3.7mm | ||
| 5 | (UC1020273313) | Shim, T=3.8mm | ||
| 5 | (UC1020273304) | Shim, T=3.9mm | ||
| 5 | (UC1020273294) | Shim, T=4.0mm | ||
| 6 | (UC1709215079) | Spring | ||
| 7 | UC1700628477 | Plate | ||
| 8 | UC1704492355 | Screw |
