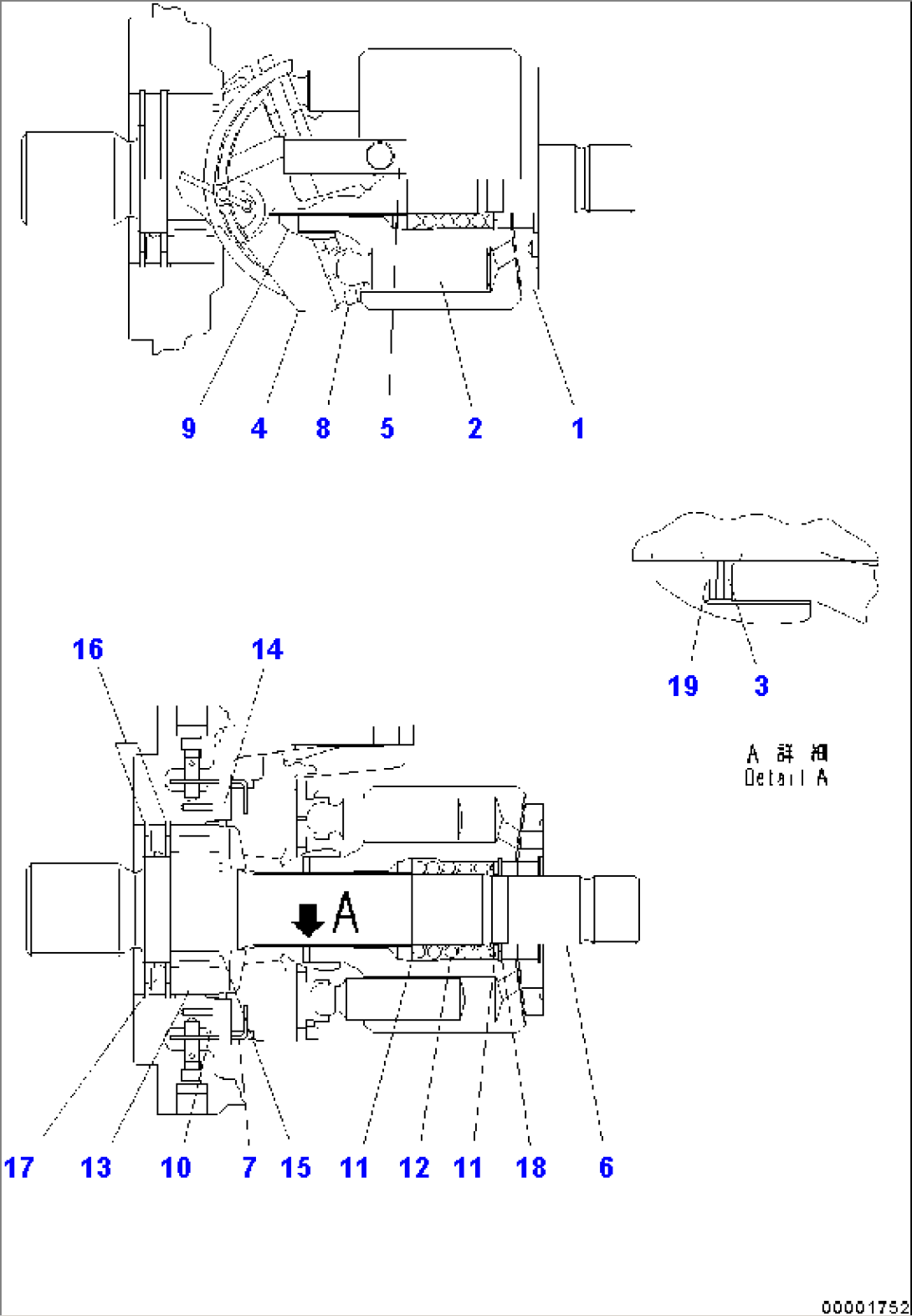

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31101 | Pump | C10001- | ||
| UC4100516369 | Rotary Group | C10001- | ||
| 1 | UC4100663833 | Cylinder Block | C10001- | |
| 2 | UC4704145157 | Piston | C10001- | |
| 3 | UC1709217287 | Spring | C10001- | |
| 4 | UC1709222555 | Hanger | C10001- | |
| 5 | UC1704498106 | Guide | C10001- | |
| 6 | UC1099215509 | Shaft | C10001- | |
| 7 | UC1704179593 | Pin | C10001- | |
| 8 | UC1709217296 | Retainer | C10001- | |
| 9 | UC1709217306 | Guide | C10001- | |
| 10 | UC1020665932 | Bearing | C10001- | |
| 11 | UC1704498858 | Shim | C10001- | |
| 12 | UC1704356497 | Spring | C10001- | |
| 13 | UC1701531044 | Bearing | C10001- | |
| 14 | UC1708301657 | Bearing | C10001- | |
| 15 | UC1302133001 | Ring | C10001- | |
| 16 | UC1726000019 | Washer | C10001- | |
| 17 | UC1026018204 | Seal Ring | C10001- | |
| 18 | UC1700845562 | Washer | C10001- | |
| 19 | UC1704329835 | Shim | C10001- | |
| UC1704329844 | Shim | C10001- | ||
| UC1704329853 | Shim | C10001- | ||
| UC1704329862 | Shim | C10001- |
