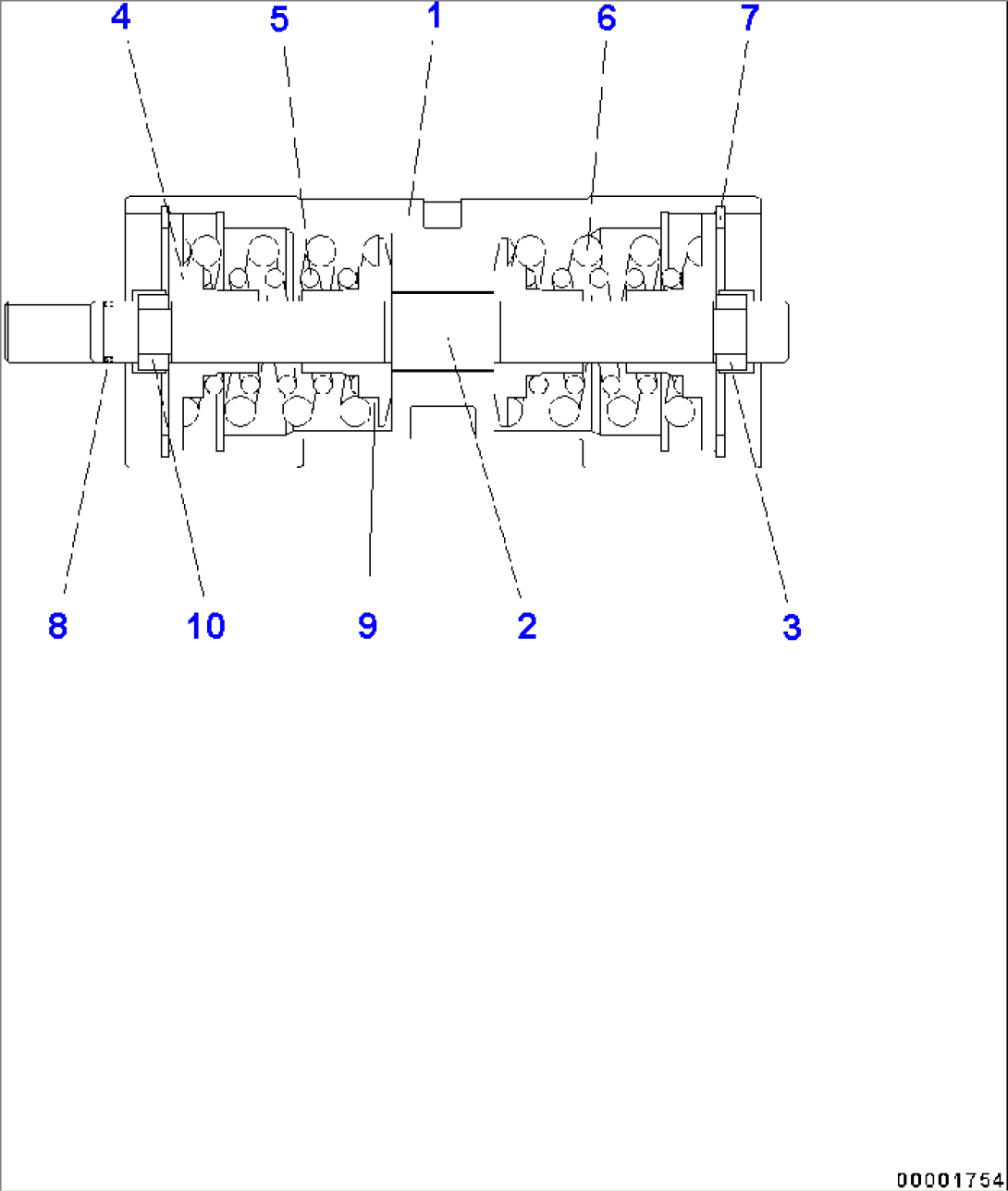

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31101 | Pump | C10001- | ||
| UC4020255367 | Piston | C10001- | ||
| 1 | UC1020155343 | Piston | C10001- | |
| 2 | UC1709221093 | Rod | C10001- | |
| 3 | UC1726007679 | Ring | C10001- | |
| 4 | UC1720201005 | Collar | C10001- | |
| 5 | UC1709221149 | Spring | C10001- | |
| 6 | UC1709221158 | Spring | C10001- | |
| 7 | UC1708303121 | Washer | C10001- | |
| 8 | UC1300038005 | O-ring | C10001- | |
| 9 | UC1709221167 | Collar | C10001- | |
| 10 | UC1720204939 | Ring | C10001- | |
| UC1720204949 | Ring | C10001- | ||
| UC1720204958 | Ring | C10001- | ||
| UC1720204967 | Ring | C10001- | ||
| UC1720204976 | Ring | C10001- | ||
| UC1720204985 | Ring | C10001- | ||
| UC1720207565 | Ring | C10001- | ||
| UC1720297574 | Ring | C10001- | ||
| UC1720431499 | Ring | C10001- |
