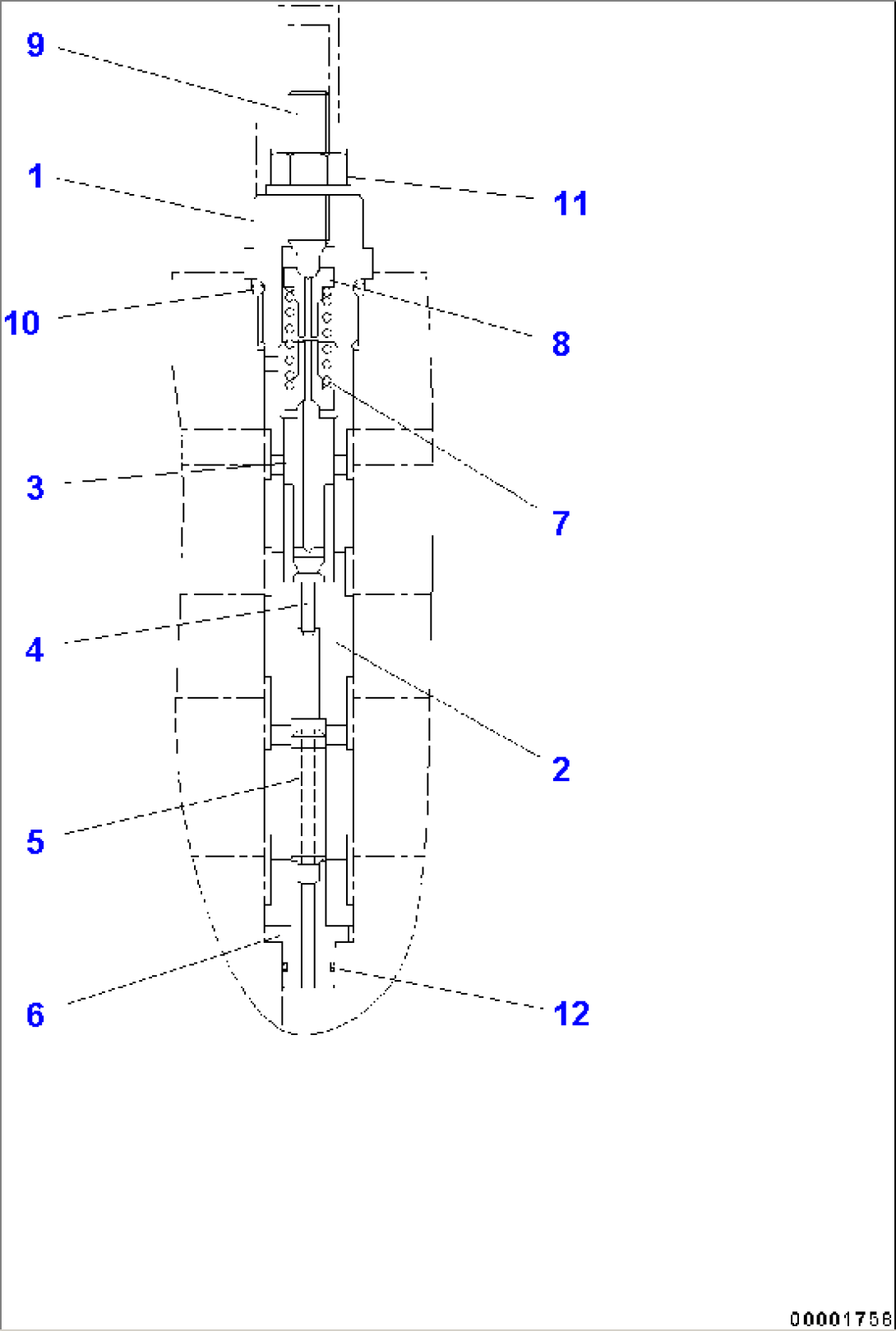

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-18-31101 | Pump | C10001- | ||
| UC4704373637 | Valve, Cut-off | C10001- | ||
| 1 | UC1704365693 | Plug | C10001- | |
| 2 | UC1704365538 | Barrel | C10001- | |
| 3 | UC1704321629 | Poppet | C10001- | |
| 4 | UC1704321639 | Piston | C10001- | |
| 5 | UC1704321648 | Spool | C10001- | |
| 6 | UC1704362841 | Seat, Valve | C10001- | |
| 7 | UC1720094027 | Spring | C10001- | |
| 8 | UC1720430928 | Seat, Spring | C10001- | |
| 9 | UC1704321675 | Screw | C10001- | |
| 10 | UC1300142003 | O-ring | C10001- | |
| 11 | UC1701527072 | Nut | C10001- | |
| 12 | UC1300022009 | O-ring | C10001- |
