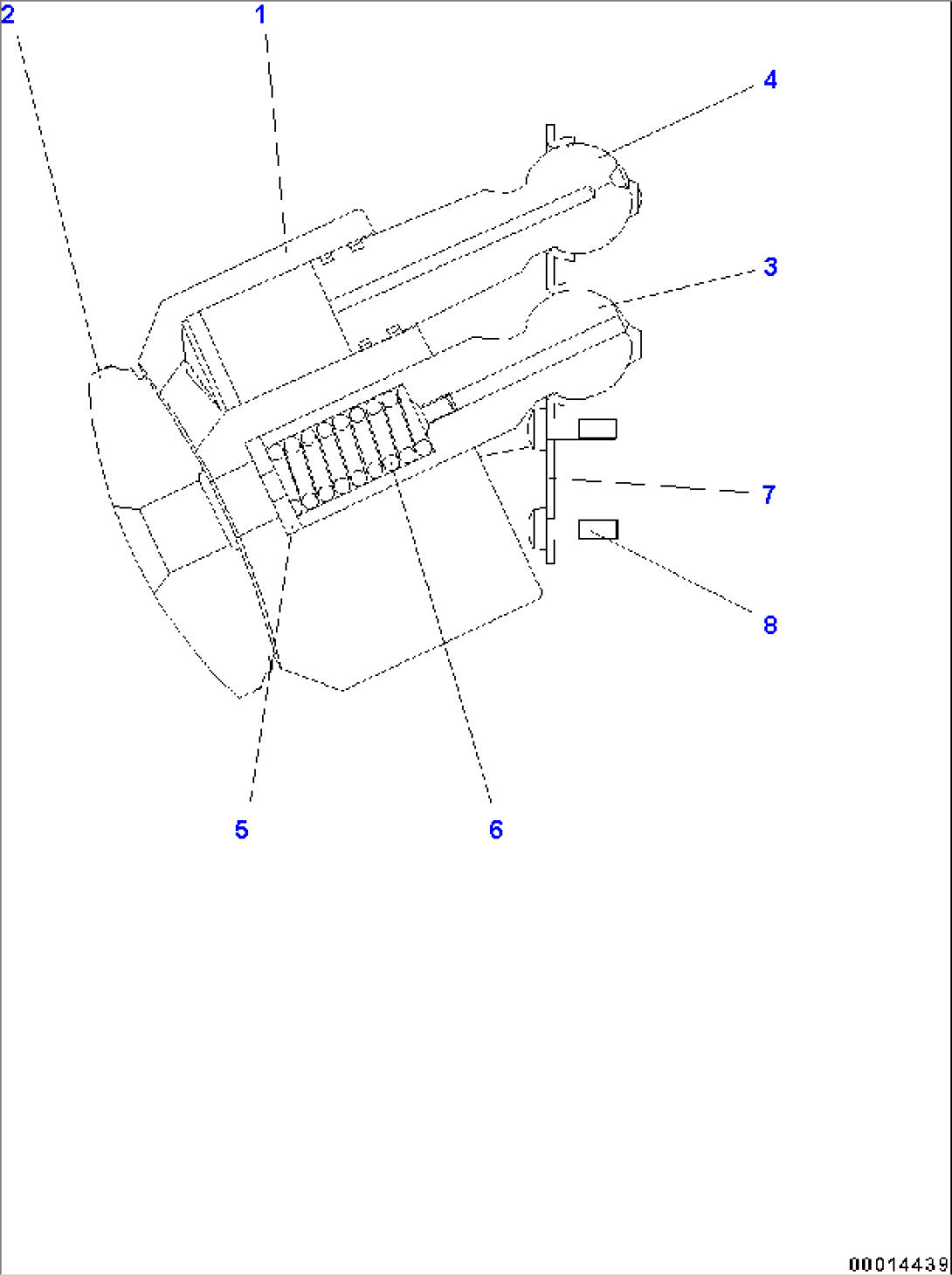

| Item | Part No. | Part Name | Qty | Serial No. |
| (417-18-31800) | MOTOR | 70136-70342 | ||
| 42R-17-H0S57 | CYLINDER BLOCK | 70136-70342 | ||
| 1 | (\7\417-18-H0P05) | CYLINDER BLOCK | 70136-70342 | |
| 2 | (\7\417-18-H0P06) | PLATE | 70136-70342 | |
| 3 | (\7\417-18-H0P07) | PIN | 70136-70342 | |
| 4 | 417-18-H0P08 | PISTON ASSEMBLY | 70136-70342 | |
| 5 | (\7\417-18-H0P10) | SHIM | 70136-70342 | |
| (\7\417-18-H0P11) | SHIM | 70136-70342 | ||
| (\7\417-18-H0P12) | SHIM | 70136-70342 | ||
| (\7\417-18-H0P13) | SHIM | 70136-70342 | ||
| (\7\417-18-H0P14) | SHIM | 70136-70342 | ||
| (\7\417-18-H0P15) | SHIM | 70136-70342 | ||
| (\7\417-18-H0P16) | SHIM | 70136-70342 | ||
| (\7\417-18-H0P17) | SHIM | 70136-70342 | ||
| 6 | (\7\42R-17-H0S71) | SPRING | 70136-70342 | |
| 7 | 42R-17-H0T36 | PLATE | 70136-70342 | |
| 8 | 42R-17-H0T22 | SCREW | 70136-70342 |
