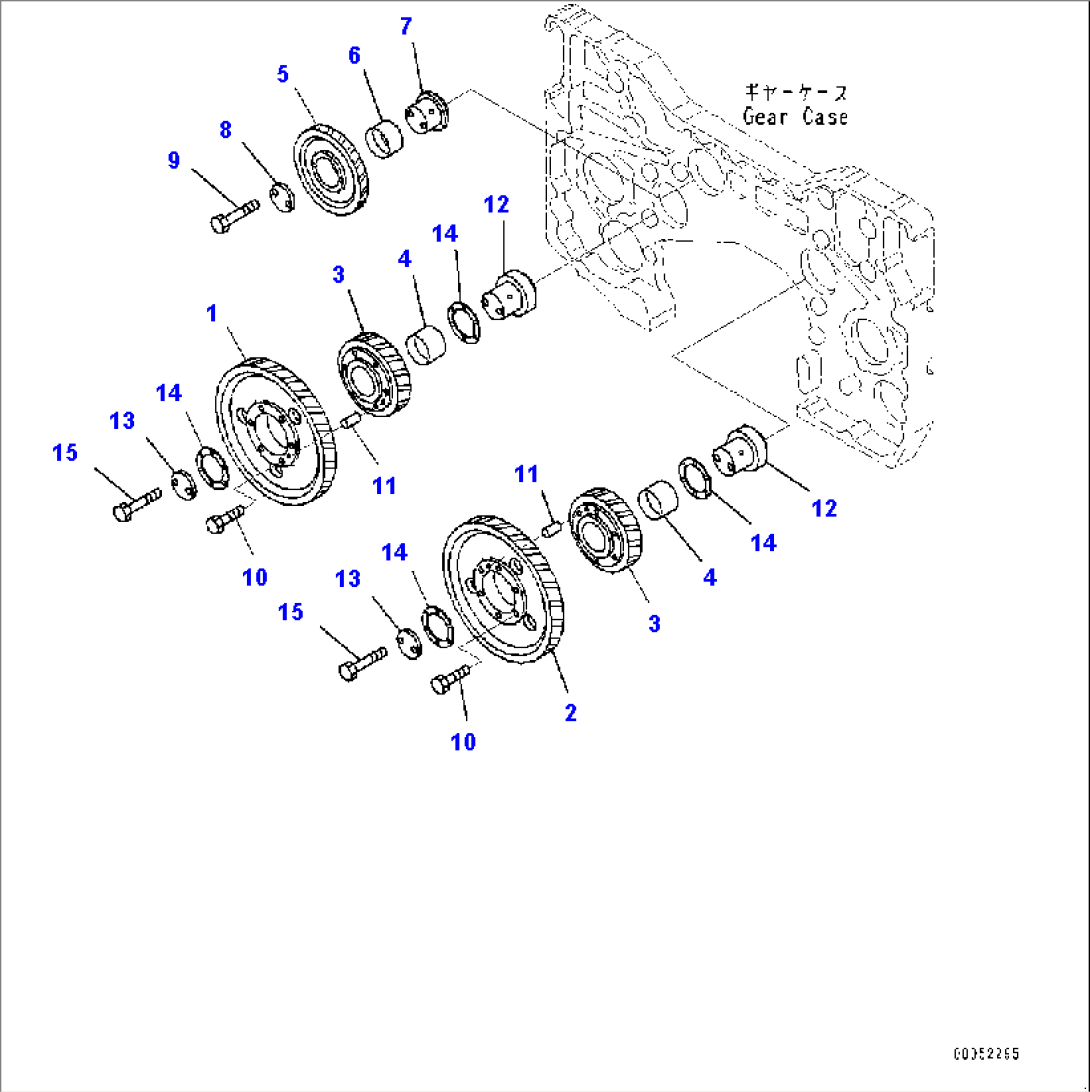

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6215-31-6160 | Gear, Idler | 502254- | |
| 2 | 6215-31-6120 | Gear, Idler | 502254- | |
| 2 | 6215-31-6100 | Gear Assembly, Idle | 502254- | |
| 3 | Gear | 502254- | ||
| 4 | 6212-31-6130 | Bushing | 502254- | |
| 4 | 6215-31-6500 | Gear Assembly, Idle | 502254- | |
| 5 | Gear | 502254- | ||
| 6 | 6215-31-6150 | Bushing | 502254- | |
| 7 | 6215-31-6420 | Shaft | 502254- | |
| 8 | 6215-31-6460 | Plate | 502254- | |
| 9 | 01010-81280 | Bolt | 502254- | |
| 10 | 01010-81040 | Bolt | 502254- | |
| 11 | 6127-21-1260 | Pin, Dowel | 502254- | |
| 12 | 6215-31-6431 | Shaft | 502254- | |
| 13 | 6215-31-6470 | Plate | 502254- | |
| 14 | 6215-31-6131 | Bearing, Thrust | 502254- | |
| 15 | 01011-81210 | Bolt | 502254- |
