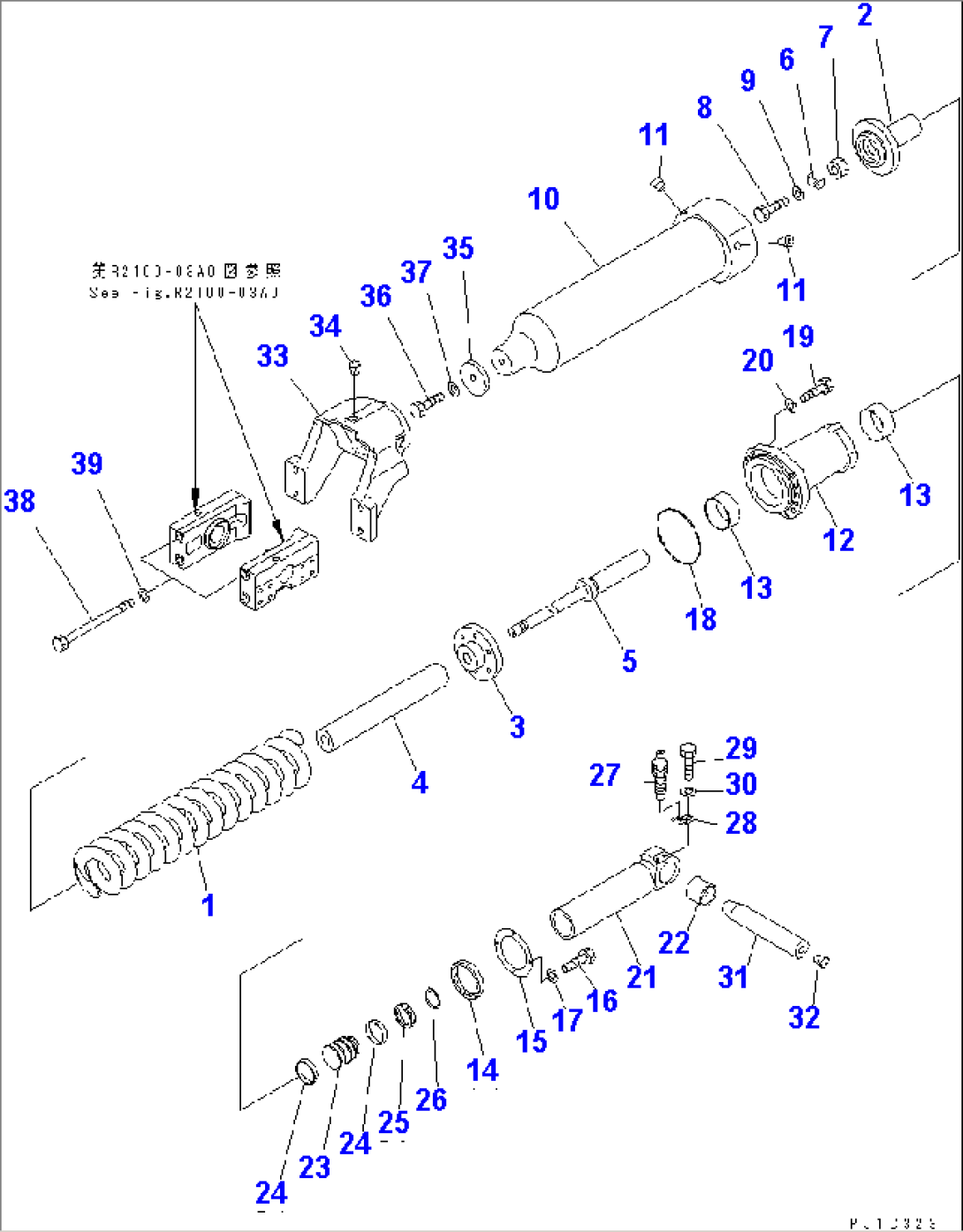

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-30-14421 | SPRING | 70001- | |
| 2 | 17A-30-14441 | PILOT | 70001- | |
| 3 | 17A-30-14451 | PILOT | 70001- | |
| 4 | 17A-30-14211 | SPACER | 70001- | |
| 5 | 17A-30-14361 | ROD | 70001- | |
| 6 | 175-30-34290 | PLATE | 70001- | |
| 7 | 01580-03931 | NUT | 70001- | |
| 8 | 01010-81020 | BOLT | 70001- | |
| 9 | 01643-31032 | WASHER | 70001- | |
| 10 | 17A-30-14113 | CASE | 70001- | |
| 11 | 07043-71019 | PLUG | 70001- | |
| 17A-30-00030 | COVER ASS'Y | 70001- | ||
| 12 | 17A-30-14141 | COVER | 70001- | |
| 13 | 17A-30-14231 | BUSHING | 70001- | |
| 14 | 07019-00130 | SEAL | 70001- | |
| 15 | 175-30-24270 | PLATE | 70001- | |
| 16 | 01010-81225 | BOLT | 70001- | |
| 17 | 01643-31232 | WASHER | 70001- | |
| 18 | 07000-15230 | O-RING | 70001- | |
| 19 | 01016-52090 | BOLT | 70001- | |
| 20 | 01643-32060 | WASHER | 70001- | |
| 21 | 17A-30-14261 | CYLINDER,L.H. | 70001- | |
| 17A-30-14311 | CYLINDER,R.H. | 70001- | ||
| 22 | 07143-10707 | BUSHING | 70001- | |
| 23 | 17A-30-14340 | PISTON | 70001- | |
| 24 | 170-30-14230 | RING,PISTON | 70001- | |
| 25 | 175-30-24242 | PACKING | 70001- | |
| 26 | 04064-07525 | RING,SNAP | 70001- | |
| 27 | 07959-20001 | VALVE | 70001- | |
| 28 | 205-30-72170 | PLATE | 70001- | |
| 29 | 01010-81225 | BOLT | 70001- | |
| 30 | 01643-31232 | WASHER | 70001- | |
| 31 | 17A-30-14431 | PIN | 70001- | |
| 32 | 07049-02734 | PLUG | 70001- | |
| 33 | 17A-30-14192 | YOKE | 70001- | |
| 34 | 07049-02430 | PLUG | 70001- | |
| 35 | 17A-30-14251 | PLATE | 70001- | |
| 36 | 01010-82465 | BOLT | 70001- | |
| 37 | 01643-32460 | WASHER | 70001- | |
| 38 | 175-30-32162 | BOLT | 70001- | |
| 39 | 01643-32460 | WASHER | 70001- |
