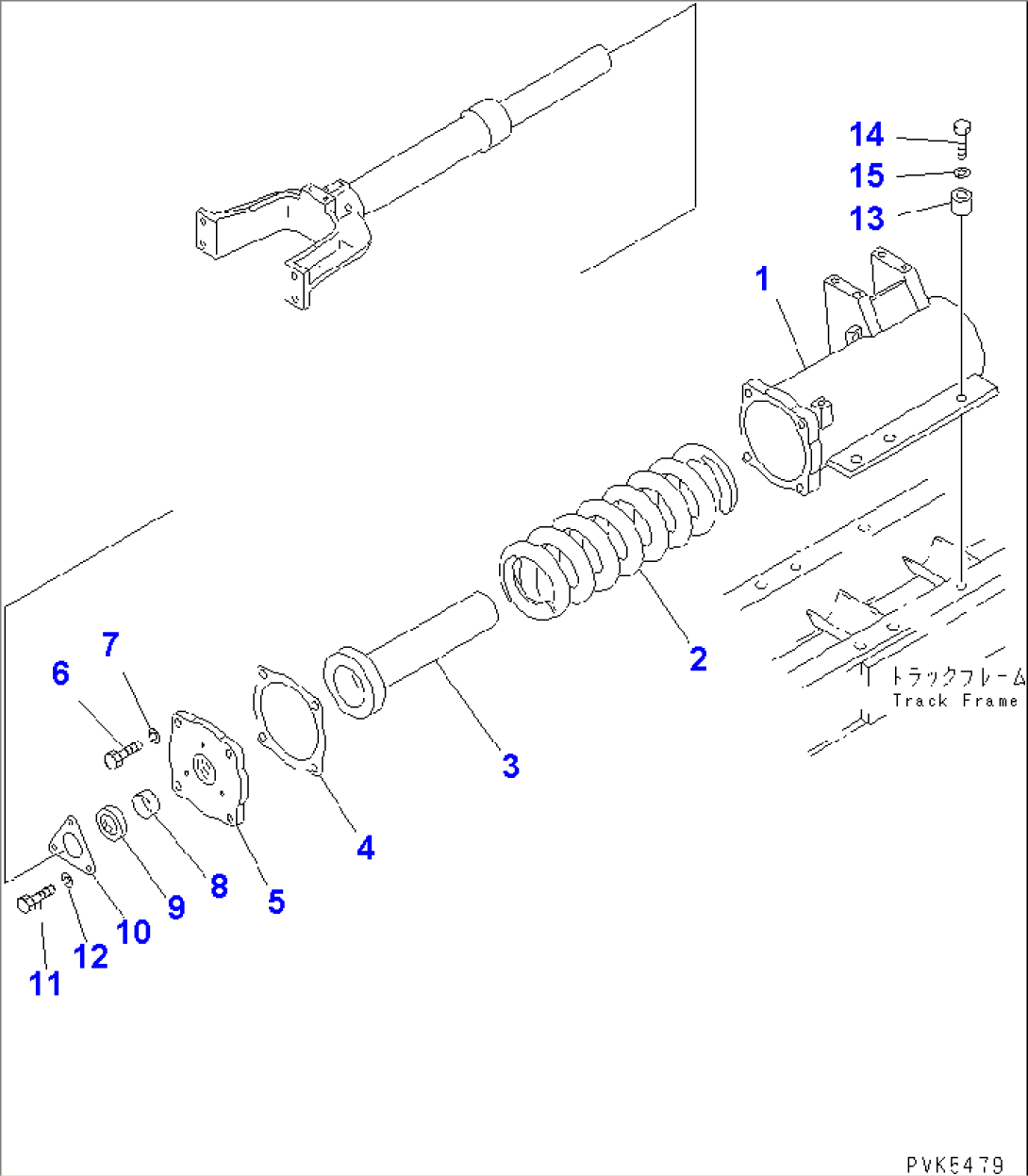

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-Y16-3191 | BRACKET,L.H. | 62454- | |
| 104-Y16-3211 | BRACKET | 62454- | ||
| 2 | 101-30-21193 | SPRING | 62794- | |
| 101-30-21192 | SPRING | 62454-62793 | ||
| 3 | 104-30-24210 | HOLDER | 62454- | |
| 4 | 104-30-24181 | GASKET | 62454- | |
| 5 | 104-30-24170 | PLATE | 62454- | |
| 6 | 01010-81435 | BOLT | 62454- | |
| 7 | 01602-21442 | WASHER,SPRING | 62454- | |
| 8 | 07177-04012 | BUSHING | 62454- | |
| 9 | 103-30-24240 | SEAL,DUST | 62454- | |
| 10 | 104-30-24190 | PLATE,SNAP | 62454- | |
| 11 | 01010-80816 | BOLT | 62454- | |
| 12 | 01602-20825 | WASHER,SPRING | 62454- | |
| 13 | 104-30-21230 | BOSS | 62454- | |
| 14 | 01010-81650 | BOLT | 62454- | |
| 15 | 01643-31645 | WASHER | 62454- |
