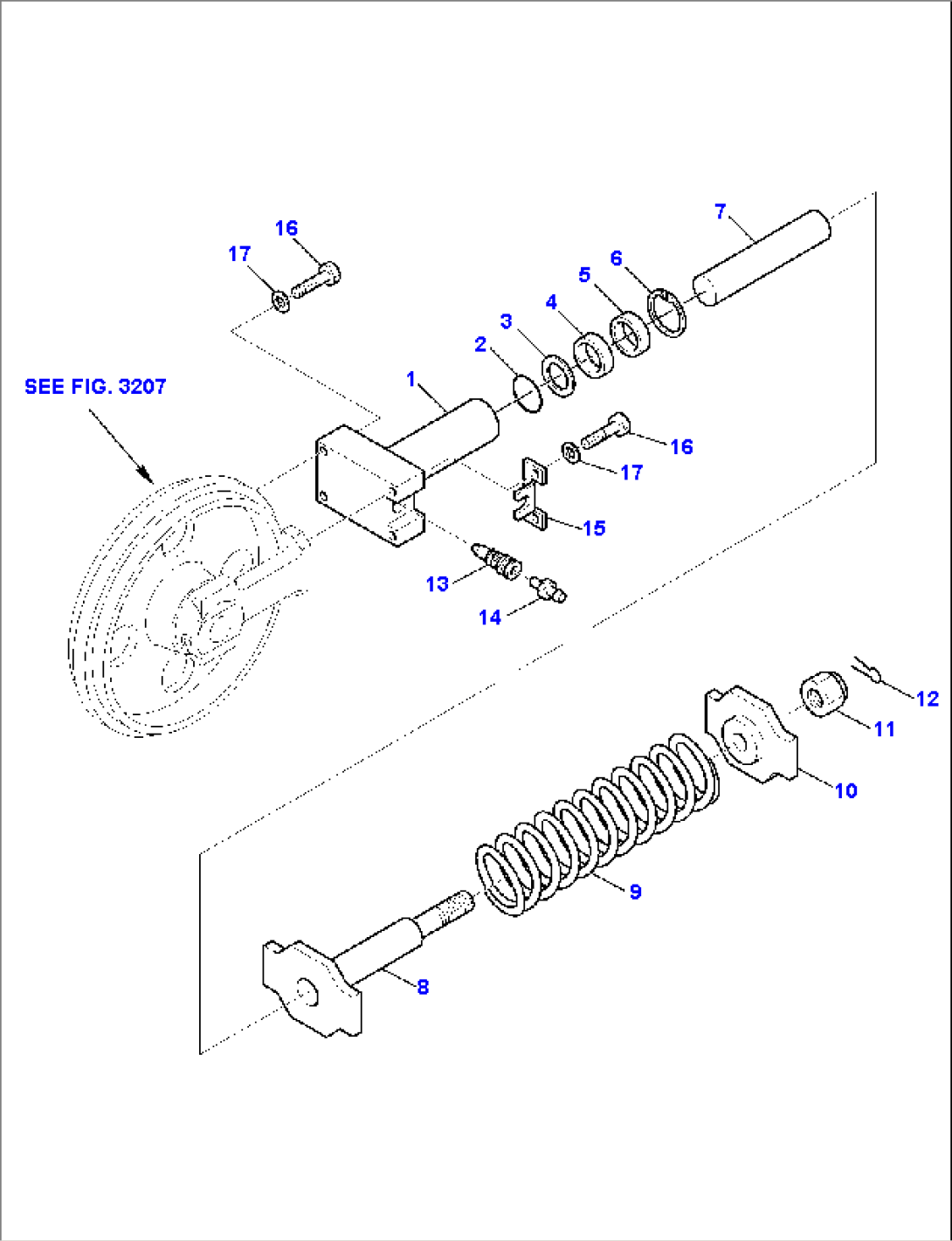

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (3F1027054) | IDLER, L.H., ASSY. | F30692- | |
| \0 | (3F1027055) | IDLER, R.H., ASSY. | F30692- | |
| 1 | 200514055 | CYLINDER | F30692- | |
| 2 | 855661403 | O-RING | F30692- | |
| 3 | 855661406 | RING, WEAR | F30692- | |
| 4 | 500256358 | SPACER | F30692- | |
| 5 | 855661226 | GASKET | F30692- | |
| 6 | 802250552 | RING, SNAP | F30692- | |
| 7 | 500327259 | PISTON | F30692- | |
| 8 | 3F1027050 | PISTON ROD | F30692- | |
| 9 | 804040015 | SPRING | F30692- | |
| 10 | 3F1027605 | PLATE | F30692- | |
| 11 | 801070025 | NUT | F30692- | |
| 12 | 802610087 | PIN, COTTER | F30692- | |
| 13 | 3F1027051 | VALVE | F30692- | |
| 14 | 860010009 | FITTING | F30692- | |
| 15 | 500158818 | PLATE | F30692- | |
| 16 | 801015577 | BOLT | F30692- | |
| 17 | 802170003 | WASHER | F30692- | |
| SEE FIG. 3207 |
