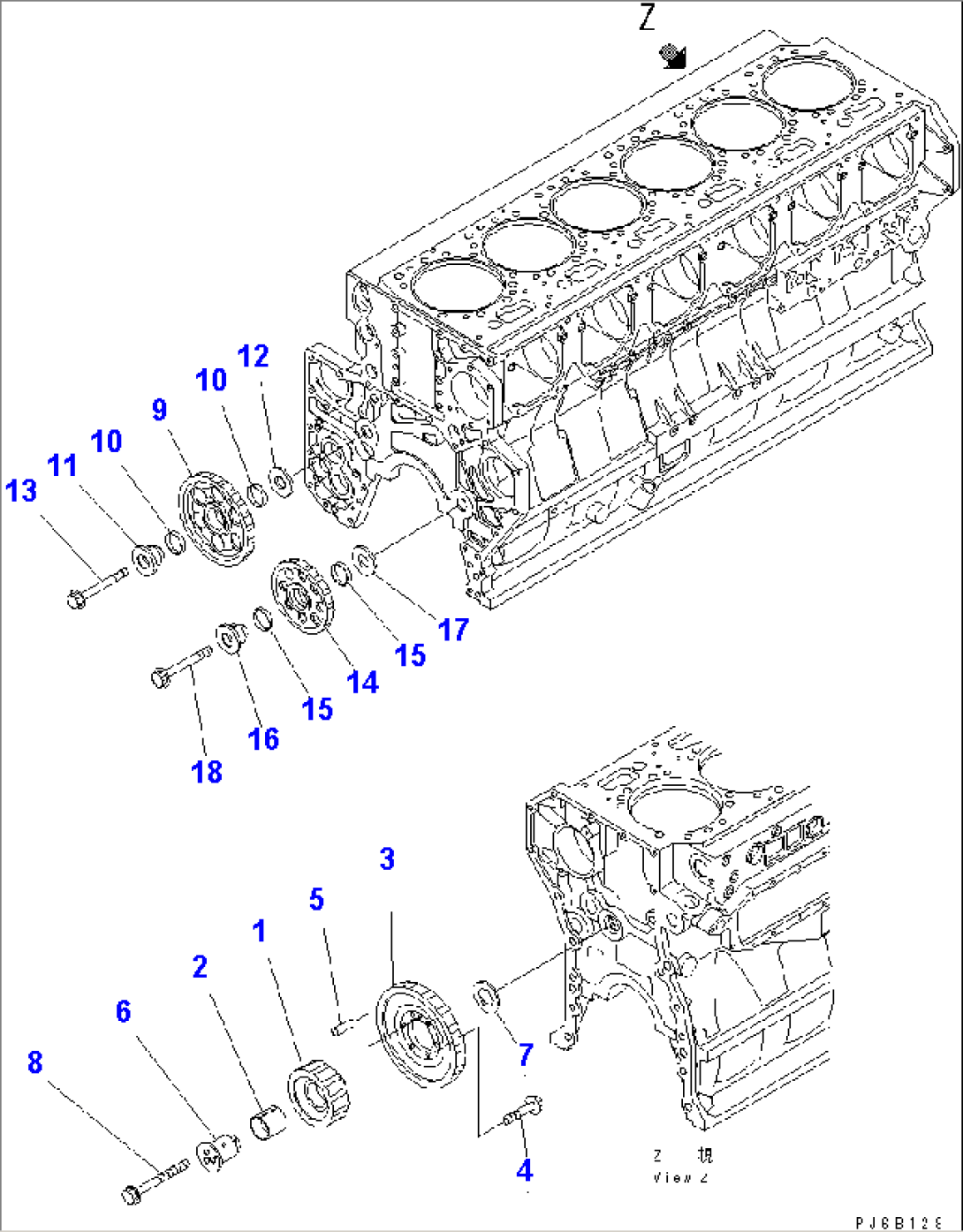

| Item | Part No. | Part Name | Qty | Serial No. |
| 6240-31-6101 | GEAR ASSY | 310458- | ||
| \0\6240-31-6100 | IDLER GEAR ASS'Y | 310001-310457 | ||
| 1 | \6\ | GEAR IDLER | 310458- | |
| \6\ | GEAR | 310001-310457 | ||
| 2 | 6240-31-6120 | BUSHING | 310001- | |
| 3 | 6240-31-6330 | GEAR | 310001- | |
| 4 | 01437-01230 | BOLT | 310001- | |
| 5 | 04020-01024 | PIN,DOWEL | 310001- | |
| 6 | 6240-21-2460 | SHAFT | 310001- | |
| 7 | 6240-21-2470 | PLATE | 310001- | |
| 8 | 6240-21-2430 | BOLT | 310001- | |
| 6240-31-6500 | IDLER GEAR ASS'Y | 310001- | ||
| 9 | \6\ | GEAR | 310001- | |
| 10 | 6150-31-6220 | BUSHING | 310001- | |
| 11 | 6150-21-2411 | SHAFT | 310001- | |
| 12 | 6150-21-2421 | PLATE | 310001- | |
| 13 | 01437-21680 | BOLT | 310001- | |
| 6240-31-6600 | IDLER GEAR ASS'Y | 310001- | ||
| 14 | \6\ | GEAR | 310001- | |
| 15 | 6150-31-6220 | BUSHING | 310001- | |
| 16 | 6150-21-2411 | SHAFT | 310001- | |
| 17 | 6150-21-2421 | PLATE | 310001- | |
| 18 | 01437-21680 | BOLT | 310001- |
