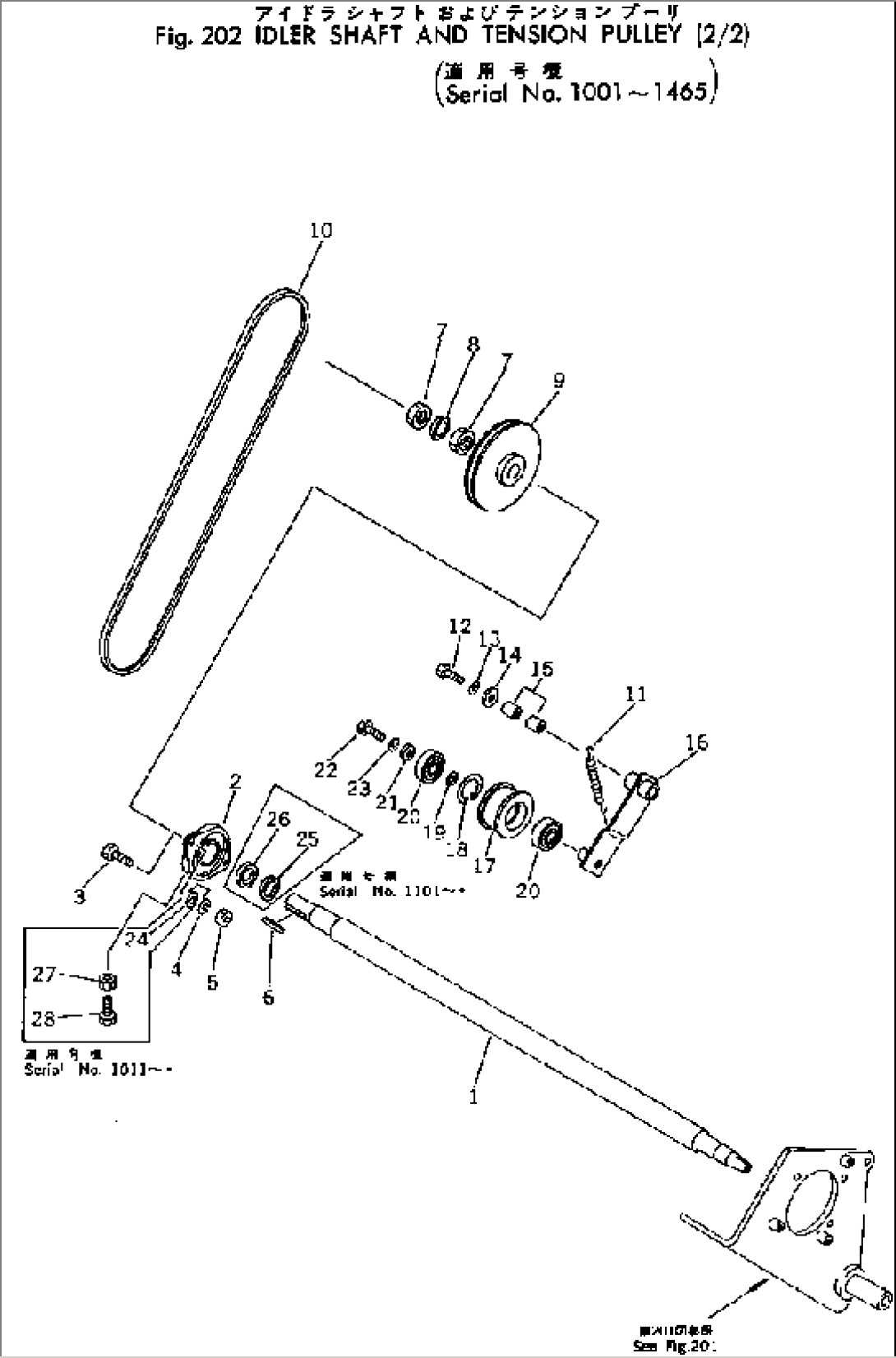

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-30-11310 | SHAFT | 1001-1465 | |
| 2 | 265-25-20611 | BEARING | 1001-@ | |
| 3 | 01010-31450 | BOLT | 1001-@ | |
| 4 | 01602-01442 | WASHER | 1001-@ | |
| 5 | 01580-01411 | NUT | 1001-@ | |
| 6 | 04000-00730 | KEY | 1001-@ | |
| 7 | 265-06-05000 | NUT | 1001-@ | |
| 8 | 265-07-05000 | WASHER | 1001-@ | |
| 9 | 258-30-11320 | PULLEY | 1001-@ | |
| 10 | 258-30-11371 | V-BELT,SB 58 INCH | 1466-@ | |
| \0\265-99-13358 | V-BELT,B 58 INCH¤RED SEAL | 1001-1465 | ||
| 11 | 258-30-11350 | SPRING | 1001-1465 | |
| 12 | 01010-30816 | BOLT | 1001-@ | |
| 13 | 01602-00825 | WASHER | 1001-@ | |
| 14 | 266-91-08000 | WASHER | 1001-@ | |
| 258-30-11500 | TENSION ASS'Y | 1001-@ | ||
| 15 | 265-30-24420 | BUSHING | 1001-@ | |
| 16 | 258-30-11600 | ARM | 1001-@ | |
| 17 | 2691-5-15210 | PULLEY | 1001-@ | |
| 18 | 04065-04718 | RING | 1001-@ | |
| 19 | 268-20-19820 | SPACER | 1001-@ | |
| 20 | 06009-06204 | BEARING | 1001-@ | |
| 21 | 268-30-13620 | WASHER | 1001-@ | |
| 22 | 01010-31020 | BOLT | 1001-@ | |
| 23 | 01602-01030 | WASHER | 1001-@ | |
| 24 | 01643-31445 | WASHER | 1001-@ | |
| 25 | 258-30-11330 | SPACER | 1101-@ | |
| 26 | 258-30-11340 | SPACER | 1101-@ | |
| 27 | 01580-01008 | NUT | 1011-@ | |
| 28 | 01016-31040 | BOLT | 1011-@ |
