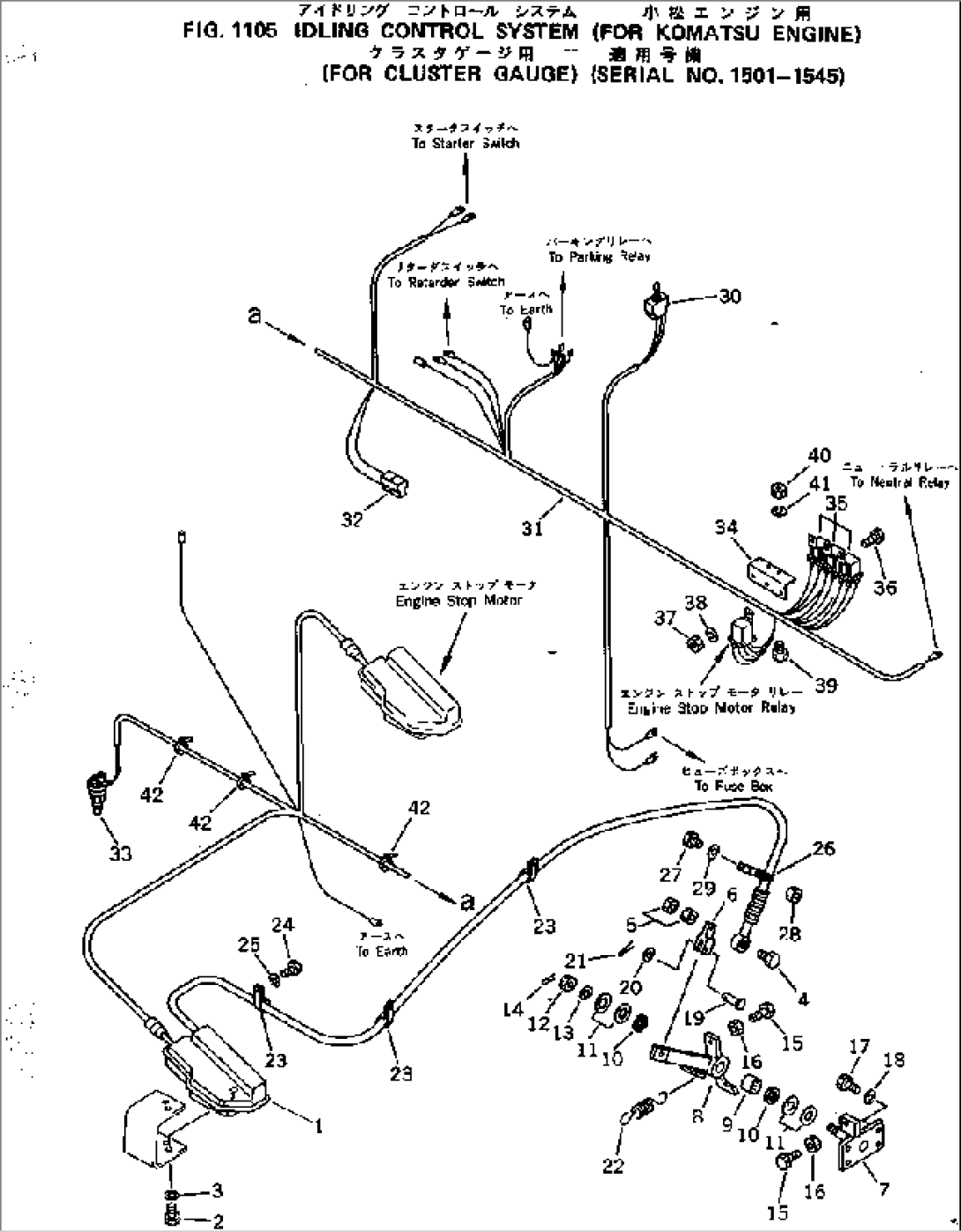

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-815-6620 | MOTOR | 1501-1545 | |
| 2 | 01010-50816 | BOLT | 1501-@ | |
| 3 | 01602-20825 | WASHER | 1501-@ | |
| 4 | 561-43-41340 | BOLT | 1501-1545 | |
| 5 | 01580-00504 | NUT | 1501-1545 | |
| 6 | 561-43-41330 | YOKE | 1501-1545 | |
| 7 | 561-43-41320 | BRACKET | 1501-@ | |
| 8 | 561-43-41310 | LEVER | 1501-@ | |
| 9 | 06120-01816 | BEARING | 1501-@ | |
| 10 | 06122-01803 | SEAL | 1501-@ | |
| 11 | 01640-21826 | WASHER | 1501-@ | |
| 12 | 01590-11012 | NUT | 1501-@ | |
| 13 | 01643-31032 | WASHER | 1501-@ | |
| 14 | 04050-12018 | PIN | 1501-@ | |
| 15 | 01016-51030 | BOLT | 1501-@ | |
| 16 | 01580-11008 | NUT | 1501-@ | |
| 17 | 01010-51025 | BOLT | 1501-@ | |
| 18 | 01643-31032 | WASHER | 1501-@ | |
| 19 | 04205-10620 | PIN | 1501-@ | |
| 20 | 01641-20608 | WASHER | 1501-@ | |
| 21 | 04050-11610 | PIN | 1501-@ | |
| 22 | 560-32-11712 | SPRING | 1501-@ | |
| 23 | 08036-00814 | CLIP | 1501-@ | |
| 24 | 01010-51016 | BOLT | 1501-@ | |
| 25 | 01602-21030 | WASHER | 1501-@ | |
| 26 | 561-43-41350 | CLIP | 1501-1545 | |
| 27 | 01010-50616 | BOLT | 1501-1545 | |
| 28 | 01580-10605 | NUT | 1501-1545 | |
| 29 | 01602-20619 | WASHER | 1501-@ | |
| 30 | 08501-20725 | SWITCH,IDLING CONTROL | 1501-@ | |
| 31 | 561-43-41380 | WIRE ASS'Y | 1501-@ | |
| 32 | 421-06-11970 | DIODE | 1501-@ | |
| 33 | 561-43-41390 | SWITCH,WATER TEMPERATURE | 1501-@ | |
| 34 | 561-43-41290 | PLATE | 1501-@ | |
| 35 | 287-06-16410 | RELAY | 1501-@ | |
| 36 | 01010-50616 | BOLT | 1501-@ | |
| 37 | 01580-10605 | NUT | 1501-@ | |
| 38 | 01602-20619 | WASHER | 1501-@ | |
| 39 | 01010-50612 | BOLT | 1501-@ | |
| 40 | 01580-10605 | NUT | 1501-@ | |
| 41 | 01602-20619 | WASHER | 1501-@ | |
| 42 | 08034-00536 | BAND | 1501-@ |
