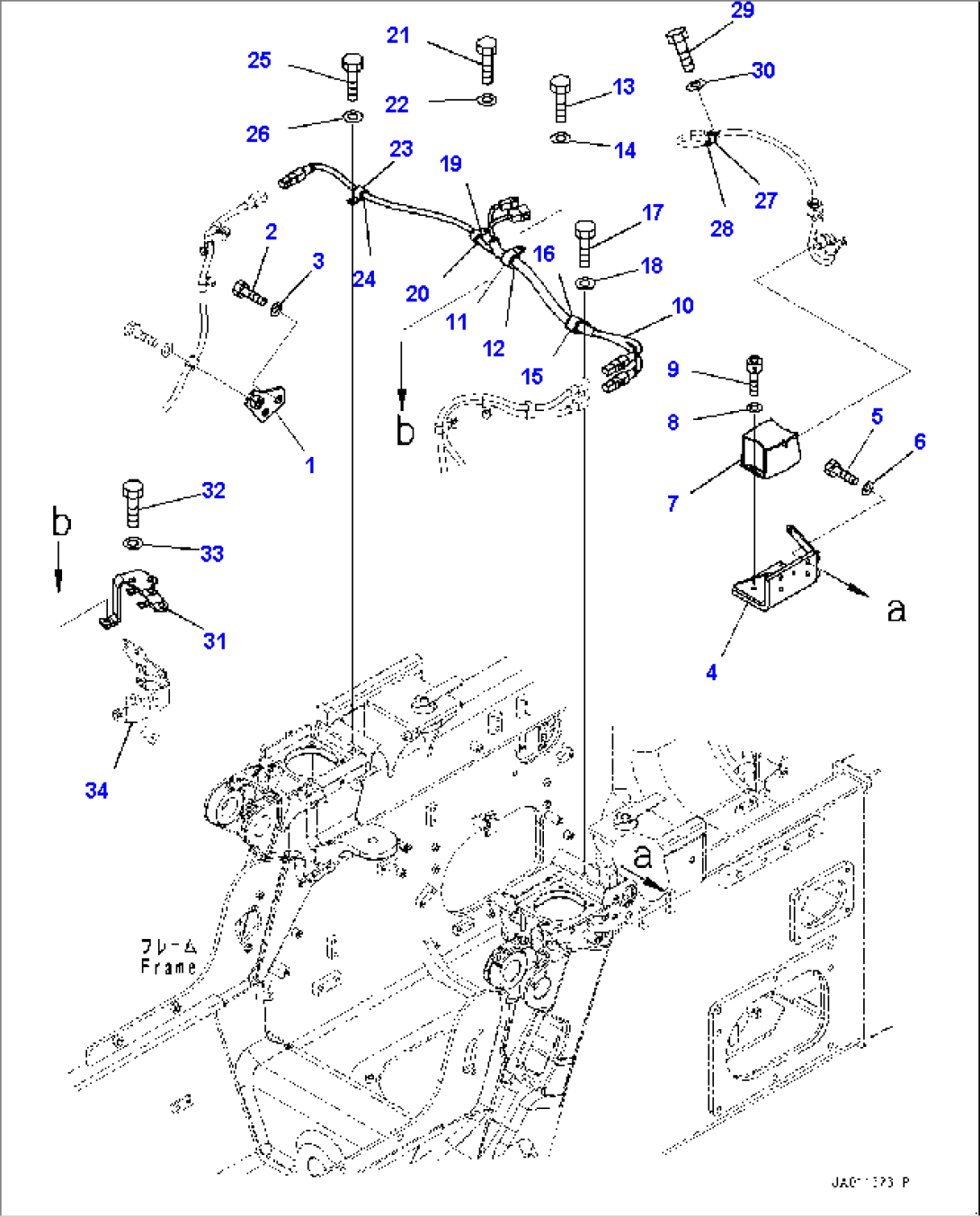

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13Y-06-15361 | Bracket | 30001- | |
| 2 | 01010-81225 | Bolt | 30001- | |
| 3 | 01643-31232 | Washer | 30001- | |
| 4 | 13Y-06-15331 | Bracket | 30001- | |
| 5 | 01010-81030 | Bolt | 30001- | |
| 6 | 01643-31032 | Washer | 30001- | |
| 7 | 7835-70-3111 | Sensor, IMU | 31130- | |
| 7 | 7835-70-3110 | Sensor, IMU | 30001-31129 | |
| 8 | 01643-30623 | Washer | 30001- | |
| 9 | 01252-A0620 | Bolt, Hexagon Socket Head | 30001- | |
| 10 | 13Y-06-15310 | Wiring Harness | 30001- | |
| 11 | 04434-53211 | Clip | 30001- | |
| 12 | 07095-20523 | Cushion | 30001- | |
| 13 | 01010-81020 | Bolt | 30001- | |
| 14 | 01643-31032 | Washer | 30001- | |
| 15 | 04434-53212 | Clip | 30001- | |
| 16 | 07095-20523 | Cushion | 30001- | |
| 17 | 01010-81225 | Bolt | 30001- | |
| 18 | 01643-31232 | Washer | 30001- | |
| 19 | 04434-52110 | Clip | 30001- | |
| 20 | 07095-20314 | Cushion | 30001- | |
| 21 | 01010-81020 | Bolt | 30001- | |
| 22 | 01643-31032 | Washer | 30001- | |
| 23 | 04434-52112 | Clip | 30001- | |
| 24 | 07095-20314 | Cushion | 30001- | |
| 25 | 01010-81225 | Bolt | 30001- | |
| 26 | 01643-31232 | Washer | 30001- | |
| 27 | 04434-52110 | Clip | 30001- | |
| 28 | 07095-20314 | Cushion | 30001- | |
| 29 | 01010-81020 | Bolt | 30001- | |
| 30 | 01643-31032 | Washer | 30001- | |
| 31 | 13Y-06-15341 | Bracket | 30001- | |
| 32 | 01010-81025 | Bolt | 30001- | |
| 33 | 01643-31032 | Washer | 30001- | |
| 34 | (13Y-06-11262) | Bracket | - |
