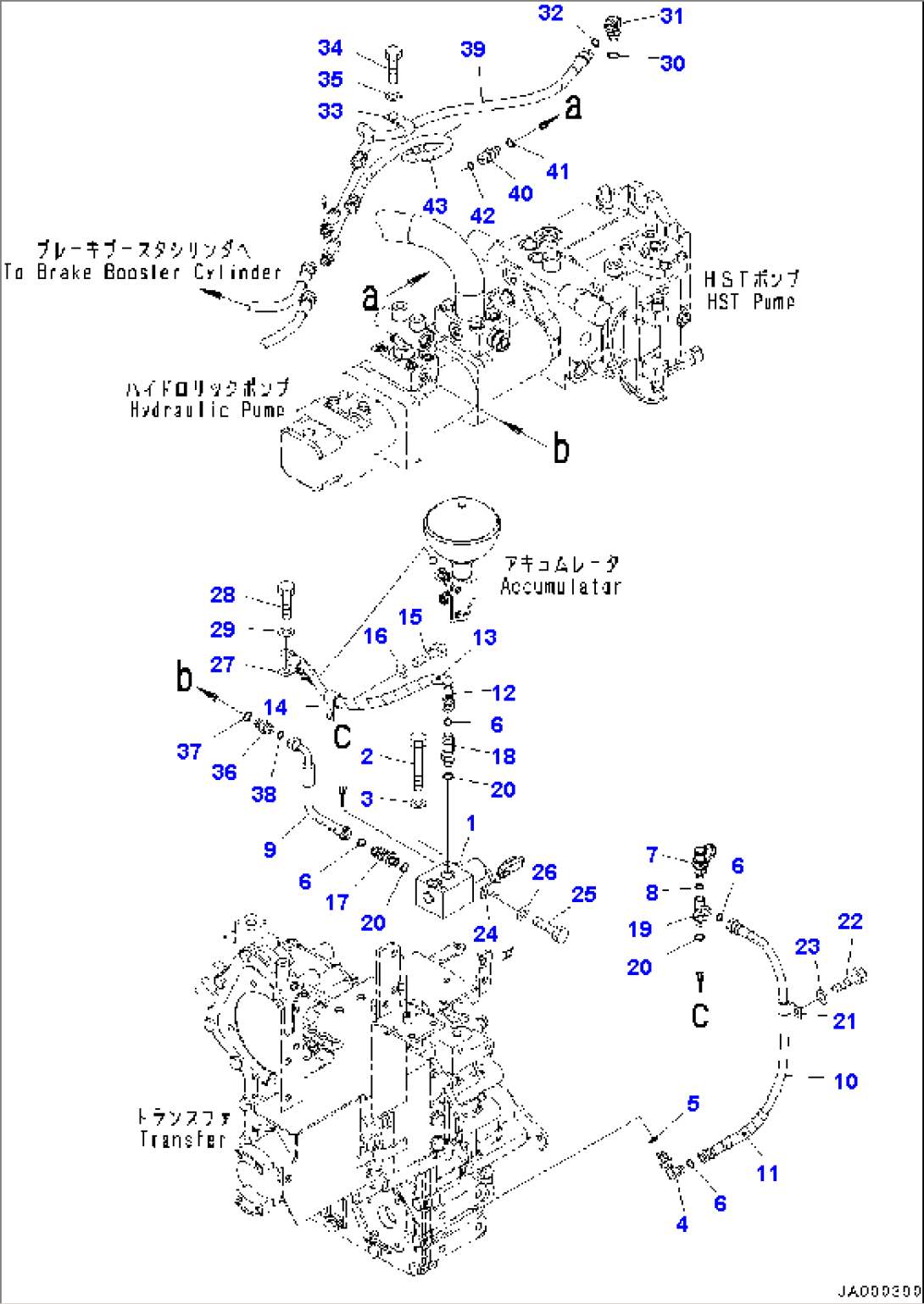

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-18-31111 | Valve Assembly, Solenoid | B20001- | |
| 2 | 01010-80870 | Bolt | B20001- | |
| 3 | 01643-30823 | Washer | B20001- | |
| 4 | 21W-62-43960 | Elbow | B20001- | |
| 5 | 07002-11423 | O-ring | B20001- | |
| 6 | 02896-11008 | O-ring | B20001- | |
| 7 | 07040-11007 | Plug | B20188- | |
| 799-101-5220 | Nipple | B20001-B20187 | ||
| 8 | 07002-11023 | O-ring | B20001- | |
| 9 | 417-18-42710 | Hose | B20001-- | |
| 9 | 417-18-31170 | Hose | B20001-- | |
| 10 | 417-18-41510 | Hose | B20001- | |
| 11 | 08210-01201 | Tube, Spiral | B20001- | |
| 12 | 417-18-41510 | Hose | B20001-- | |
| 13 | 08210-01204 | Tube | B20001- | |
| 14 | 04434-51312 | Clip | B20001- | |
| 15 | 01010-81225 | Bolt | B20001- | |
| 16 | 01643-31232 | Washer | B20001- | |
| 17 | 21W-62-43980 | Elbow | B20001- | |
| 18 | 21W-62-43970 | Elbow | B20001- | |
| 19 | 418-18-31111 | Elbow | B20001- | |
| 20 | 07000-12011 | O-ring | B20001- | |
| 21 | 04434-51210 | Clip | B20001- | |
| 22 | 01010-81020 | Bolt | B20001- | |
| 23 | 01643-31032 | Washer | B20001- | |
| 24 | 600-051-2050 | Clip | B20001- | |
| 25 | 01010-81020 | Bolt | B20001- | |
| 26 | 01643-31032 | Washer | B20001- | |
| 27 | 04434-51310 | Clip | B20001- | |
| 28 | 01010-81020 | Bolt | B20001- | |
| 29 | 01643-31032 | Washer | B20001- | |
| 30 | 07000-12011 | O-ring | B20001- | |
| 31 | 418-T80-3281 | Elbow | B20001- | |
| 32 | 02896-11009 | O-ring | B20001- | |
| 33 | 04434-51612 | Clip | B20001- | |
| 34 | 01010-81220 | Bolt | B20001- | |
| 35 | 01643-31232 | Washer | B20001- | |
| 36 | 02781-00210 | Union | B20001- | |
| 37 | 07002-11423 | O-ring | B20001- | |
| 38 | 02896-11008 | O-ring | B20001- | |
| 39 | 417-18-41141 | Hose | B20001-- | |
| 39 | 417-18-41170 | Hose | B20001-- | |
| 40 | 02781-0031D | Nipple | B20001- | |
| 41 | 07002-11423 | O-ring | B20001- | |
| 42 | 02896-11009 | O-ring | B20001- | |
| 43 | 417-18-42230 | Hose | B20001-- | |
| 43 | 23C-60-54380 | Hose | B20001-- |
