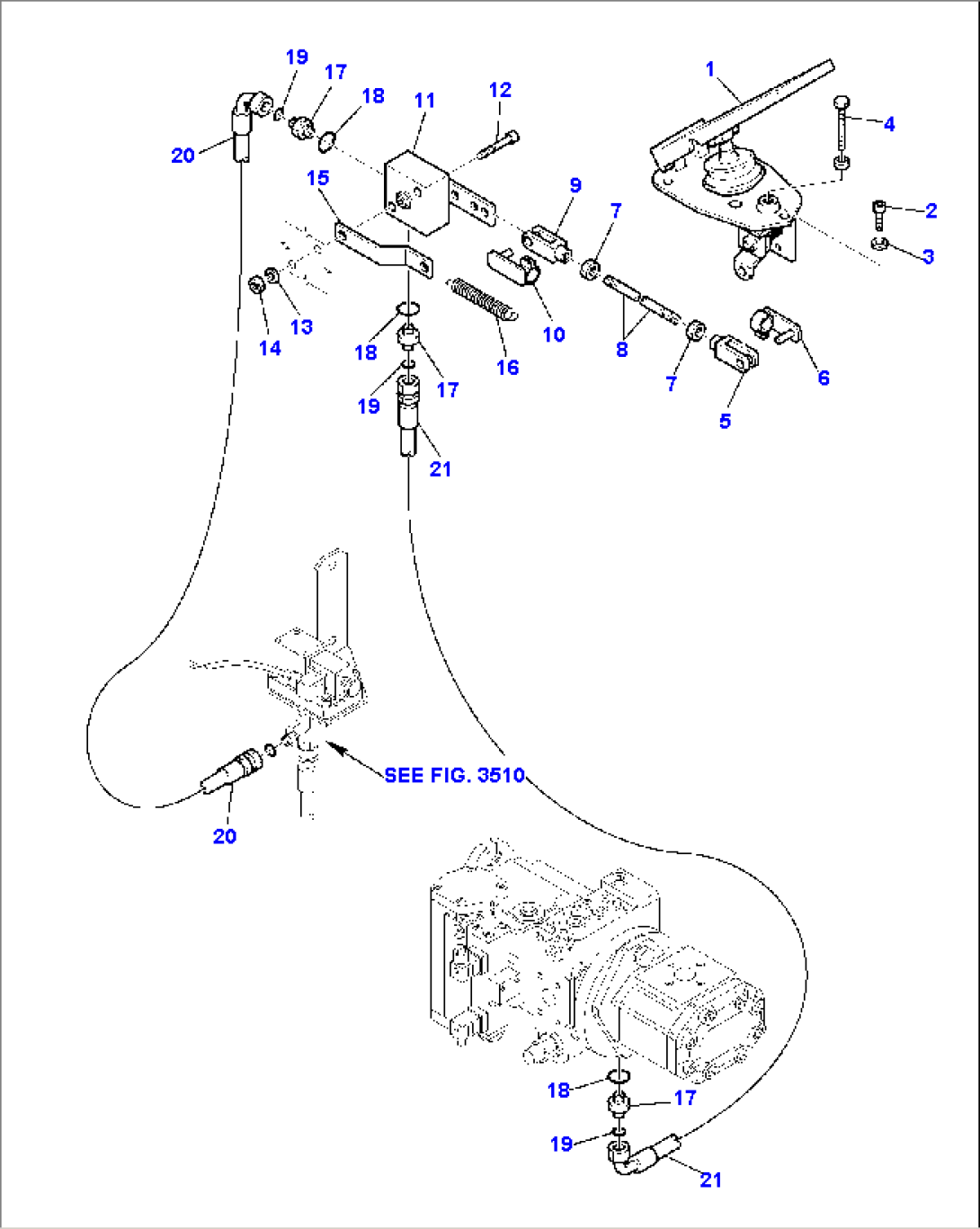

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 816213122 | PEDAL | WB98F20001- | |
| 2 | 801105525 | SCREW | WB98F20001- | |
| 3 | 802120006 | SPRING WASHER | WB98F20001- | |
| 4 | 801015090 | BOLT | WB98F20001- | |
| 5 | 802720019 | FORK | WB98F20001- | |
| 6 | 802725019 | PIN | WB98F20001- | |
| 7 | 801920103 | NUT | WB98F20001- | |
| 8 | 390205065 | TIE-ROD | WB98F20001- | |
| 9 | 802720037 | FORK | WB98F20001- | |
| 10 | 802725018 | PIN | WB98F20001- | |
| 11 | 845010235 | VALVE | WB98F20001- | |
| 12 | 801105125 | SCREW | WB98F20001- | |
| 13 | 802150508 | SPRING WASHER | WB98F20001- | |
| 14 | 801920104 | NUT | WB98F20001- | |
| 15 | 360705707 | PLATE | WB98F20001- | |
| 16 | 804020005 | SPRING | WB98F20001- | |
| 17 | 500380162 | UNION | WB98F20001- | |
| 18 | 855051111 | O-RING | WB98F20001- | |
| 19 | 855051012 | O-RING | WB98F20001- | |
| 20 | 392405018 | HOSE | WB98F20001- | |
| 21 | 392405017 | HOSE | WB98F20001- | |
| SEE FIG. 3510 |
