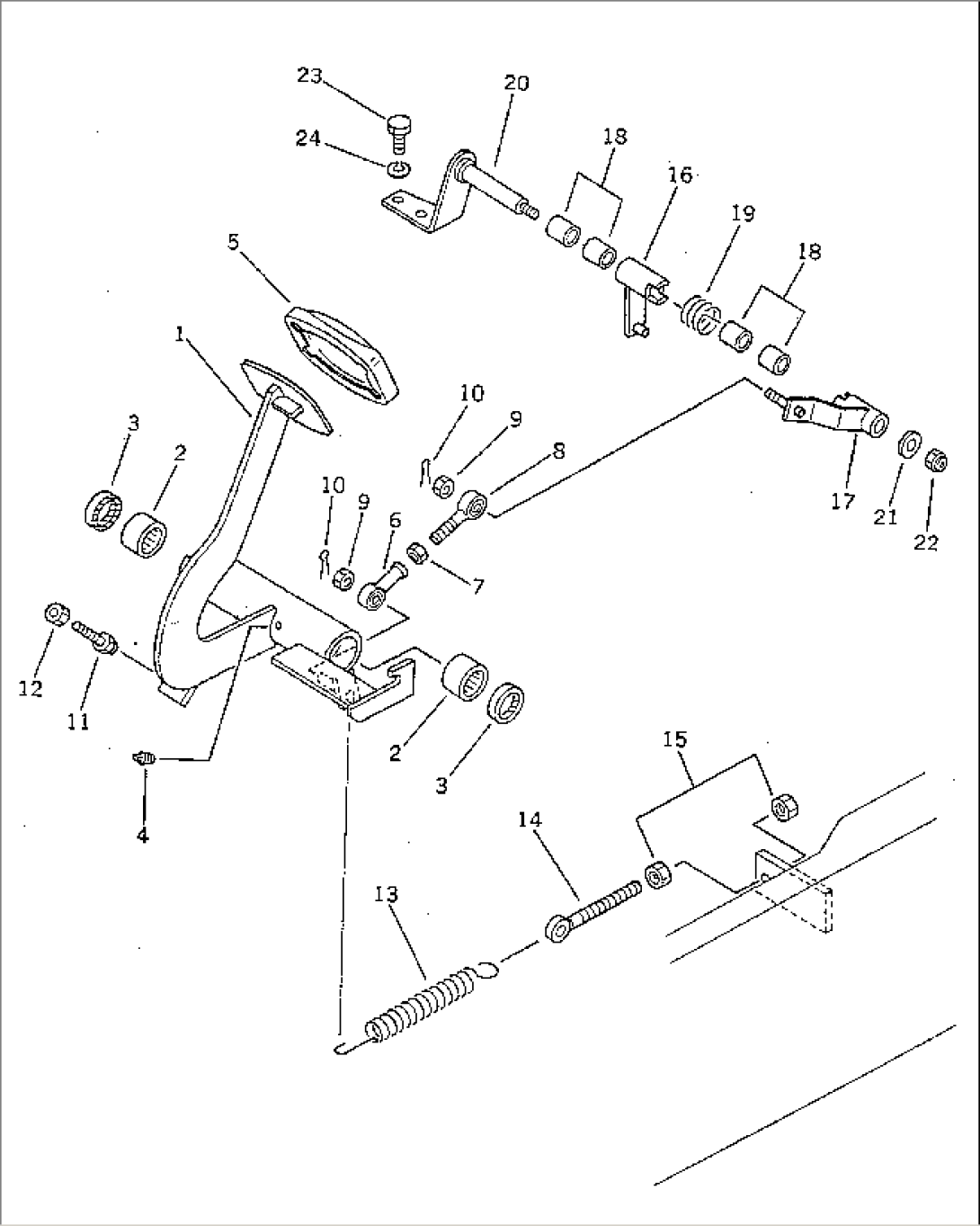

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-43-12121 | PEDAL | 2274- | |
| 361-43-12120 | PEDAL | 1001-2273 | ||
| 2 | 06120-03020 | BEARING,NEEDLE | 1001- | |
| 3 | 06122-03004 | SEAL,BEARING | 1001- | |
| 4 | 07042-00108 | PLUG | 1001- | |
| 5 | 22W-43-11510 | PAD | 1001- | |
| 6 | 04250-80847 | END,ROD | 2611- | |
| 04250-40847 | END,ROD | 1001-2610 | ||
| 7 | 01580-10806 | NUT | 1001- | |
| 8 | 04252-20853 | END,ROD | 2611- | |
| 04252-00853 | END,ROD | 1001-2610 | ||
| 9 | 01590-10809 | NUT | 1001- | |
| 10 | 04050-12015 | PIN,COTTER | 1001- | |
| 11 | 09311-41237 | BUMPER | 1001- | |
| 12 | 01580-11210 | NUT | 1001- | |
| 13 | 234-32-21160 | SPRING | 1001- | |
| 14 | 362-43-13330 | BOLT | 1001- | |
| 15 | 01580-11008 | NUT | 1001- | |
| 16 | 362-43-13270 | LEVER | 1001- | |
| 17 | 362-43-13280 | LEVER | 1001- | |
| 18 | 09350-01415 | BUSHING | 1001- | |
| 19 | 362-43-13320 | SPRING | 1001- | |
| 20 | 361-43-12140 | BRACKET | 1001- | |
| 21 | 113-43-23230 | WASHER | 1001- | |
| 22 | 01598-00809 | NUT | 1001- | |
| 23 | 01010-51020 | BOLT | 1001- | |
| 24 | 01602-21030 | WASHER,SPRING | 1001- |
