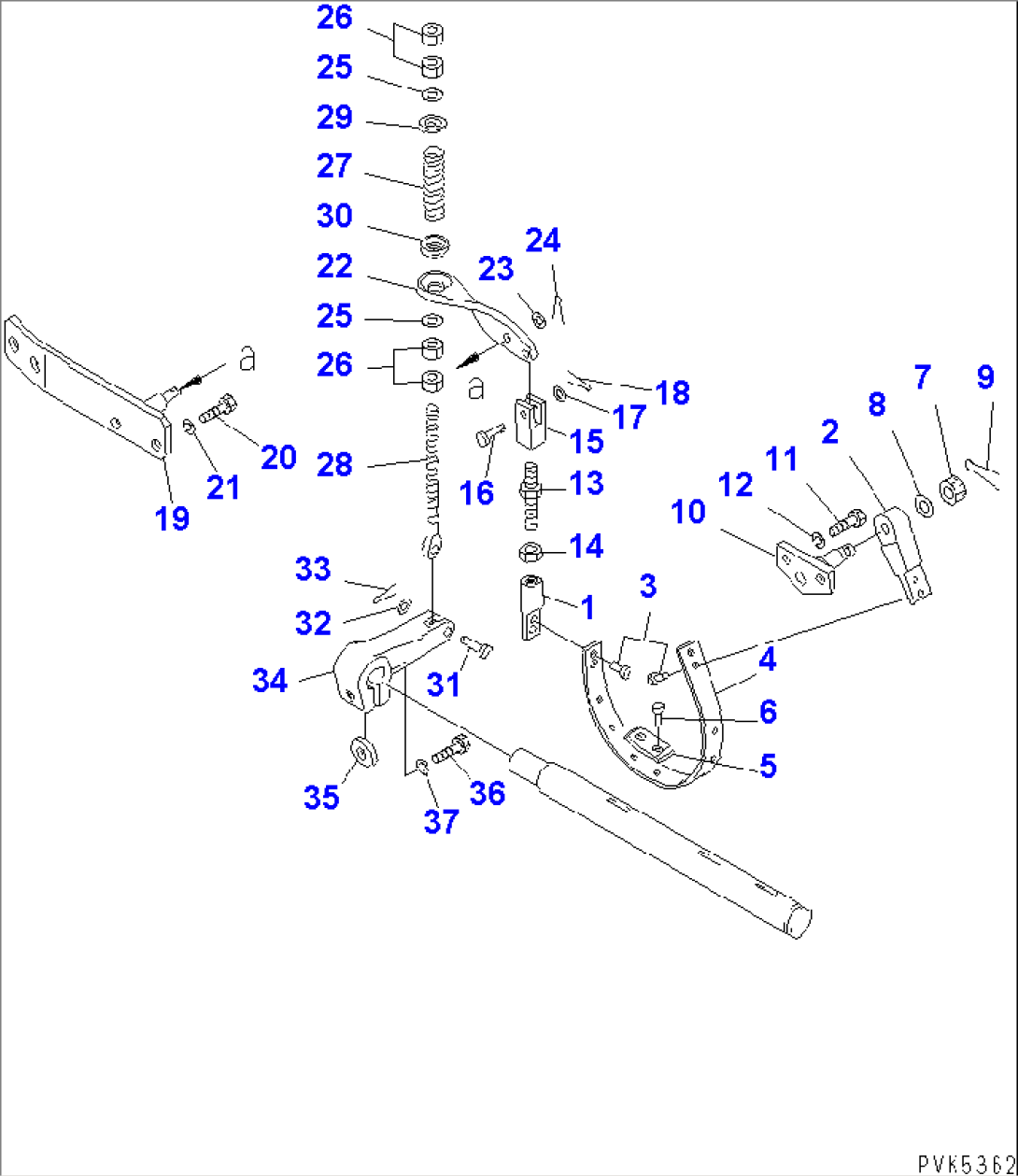

| Item | Part No. | Part Name | Qty | Serial No. |
| 101-11-15103 | BRAKE BAND ASS'Y | 78604- | ||
| 1 | 101-11-15111 | BOSS | 78604- | |
| 2 | 101-11-15121 | BOSS | 78604- | |
| 3 | 101-11-15150 | RIVET | 78604- | |
| 4 | 101-11-15131 | BAND | 78604- | |
| 5 | 101-11-15142 | LINING | 78604- | |
| 6 | 101-11-15161 | RIVET | 78604- | |
| 7 | 01590-31012 | NUT | 78604- | |
| 8 | 01640-21016 | WASHER | 78604- | |
| 9 | 04050-12022 | PIN | 78604- | |
| 10 | 101-11-15211 | BRACKET | 78604- | |
| 11 | 01010-80820 | BOLT | 78604- | |
| 12 | 01602-20825 | WASHER | 78604- | |
| 13 | 101-11-15430 | BOLT | 78604- | |
| 14 | 01580-10806 | NUT | 78604- | |
| 15 | 101-11-15440 | YOKE | 78604- | |
| 16 | 04205-10622 | PIN | 78604- | |
| 17 | 01641-20608 | WASHER | 78604- | |
| 18 | 04050-11610 | PIN | 78604- | |
| 19 | 102-10-45271 | BRACKET | 78604- | |
| 20 | 01010-80820 | BOLT | 78604- | |
| 21 | 01602-20825 | WASHER | 78604- | |
| 22 | 101-11-15281 | LEVER | 78604- | |
| 23 | 01640-20816 | WASHER | 78604- | |
| 24 | 04050-12012 | PIN | 78604- | |
| 25 | 01640-20816 | WASHER | 78604- | |
| 26 | 01580-10806 | NUT | 78604- | |
| 27 | 101-11-15410 | SPRING | 78604- | |
| 28 | 101-11-15341 | STUD | 78604- | |
| 29 | 101-11-15420 | GUIDE | 78604- | |
| 30 | 111-11-16140 | SEAT | 78604- | |
| 31 | 04205-10630 | PIN | 78604- | |
| 32 | 01641-20608 | WASHER | 78604- | |
| 33 | 04050-11610 | PIN | 78604- | |
| 34 | 101-11-15391 | LEVER | 78604- | |
| 35 | 101-11-14260 | KEY | 78604- | |
| 36 | 01010-81035 | BOLT | 78604- | |
| 37 | 01602-21030 | WASHER | 78604- |
