| Item | Part No. | Part Name | Qty | Serial No. |

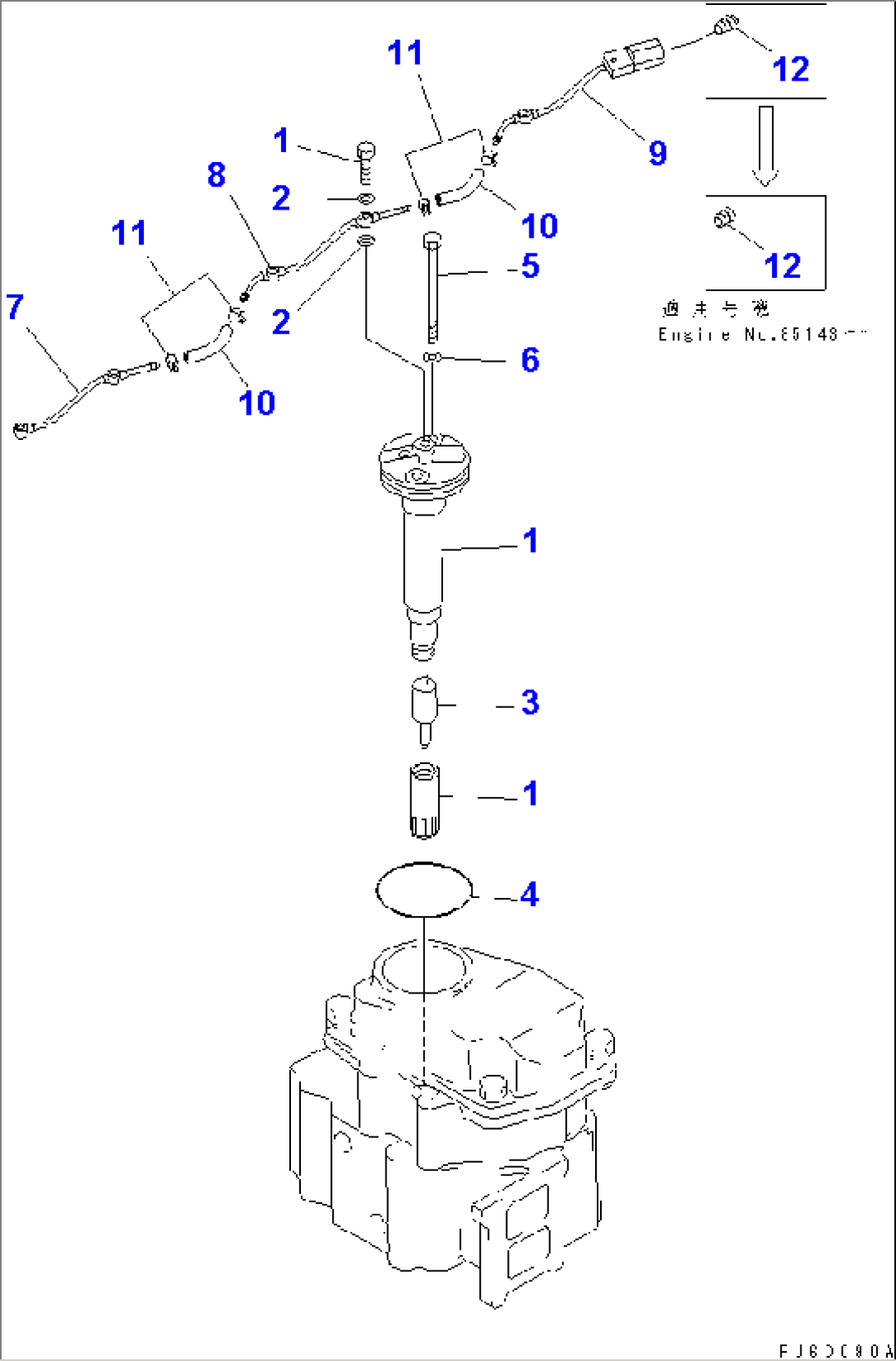

| 6151-12-3100 | NOZZLE HOLDER ASS'Y | 81643- | ||
| 1 | (6151-12-3110) | HOLDER ASS'Y,(SEE FIG. A4210-B3F5) | 81643- | |
| 2 | (07005-00812) | SEAL, WASHER (K1) | 81643- | |
| 3 | 6151-12-3120 | NOZZLE | 81643- | |
| 4 | 07000-65065 | O-RING (K1) | 81643- | |
| 5 | 01011-81045 | BOLT | 81643- | |
| 6 | 07005-01012 | SEAL, WASHER (K1) | 81643- | |
| 7 | 6150-71-5360 | TUBE | 81643- | |
| 8 | 6150-71-5370 | TUBE | 81643- | |
| 9 | 6150-71-5540 | TUBE | 81643- | |
| 10 | 07270-20409 | TUBE | 81643- | |
| 11 | 07285-00085 | CLIP | 81643- | |
| 12 | 07043-00108 | PLUG | 85143- | |
| 12 | \0\07042-00108 | PLUG | 81643-85142 |
