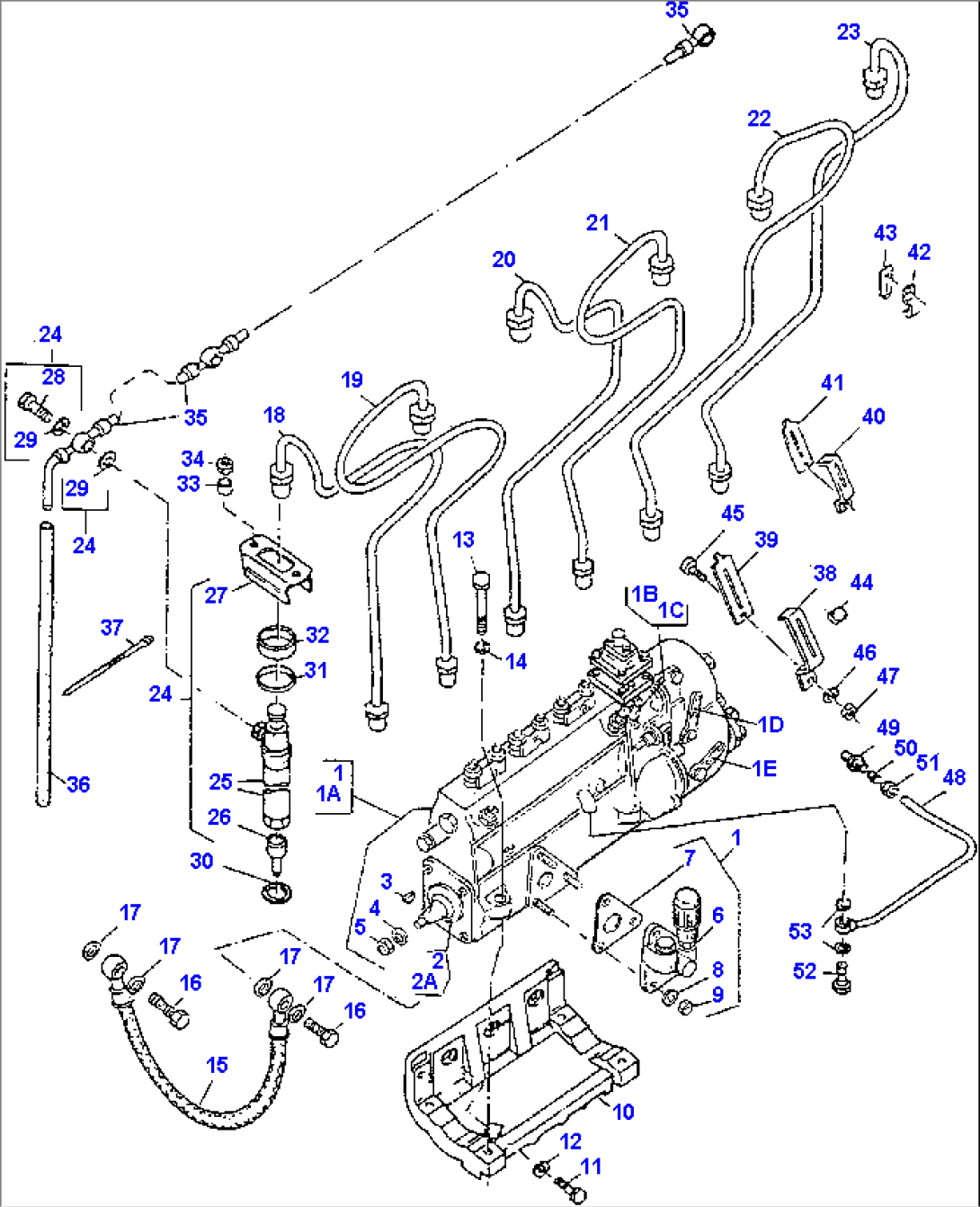

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2992331M91 | INJECTION PUMP | ||
| 1A | 4918215M91 | GASKET KIT | ||
| 1B | 4918344M91 | MAGNET | ||
| 1C | 4918345M1 | GASKET | ||
| 1D | 4918346M1 | LEVER | ||
| 1E | 4918347M1 | LEVER | ||
| 2 | 3237279M1 | SHAFT SEAL | ||
| 2A | 4918217M1 | SEAL PLATE | ||
| 3 | 1443809X1 | WOODRUFF KEY | ||
| 4 | 4918216M1 | SPRING WASHER | ||
| 5 | 1443757X1 | NUT | ||
| 6 | 4909990M91 | PRIMING PUMP | ||
| PRIMING PUMP | ||||
| 7 | 2871867M1 | GASKET | ||
| 8 | 1443791X1 | SPRING WASHER | ||
| 9 | 339030X1 | NUT | ||
| 10 | 2872777M1 | BRACKET | ||
| 11 | 339139X1 | SCREW | ||
| 12 | NOT USED | |||
| 13 | 339132X1 | SCREW | ||
| 14 | 1443776X1 | PLAIN WASHER | ||
| 15 | 3086051M1 | HOSE ASSEMBLY | ||
| 16 | 2999617M1 | BANJO BOLT | ||
| 17 | 1440993X1 | SEAL | ||
| 18 | 2872841M91 | INJECTION PIPE | ||
| 19 | 2872842M91 | INJECTION PIPE | ||
| 20 | 2872843M91 | INJECTION PIPE | ||
| 21 | 2872844M91 | INJECTION PIPE | ||
| 22 | 2872845M91 | INJECTION PIPE | ||
| 23 | 2872846M91 | INJECTION PIPE | ||
| 24 | 3090238M91 | INJECTOR VALVE | ||
| 25 | INJECTOR VALVE | |||
| 26 | 3079540M1 | FUEL INJECTOR | ||
| 27 | 3079533M1 | FLANGE | ||
| 28 | 3079536M1 | BANJO BOLT | ||
| 29 | 3000136X1 | SEAL | ||
| 30 | 3090239M1 | SEAL | ||
| 31 | 3004280X1 | O-RING | ||
| 32 | 3090240M1 | RING | ||
| 33 | 3090230M1 | TUBE | ||
| 34 | 339169X1 | NUT | ||
| 35 | 3093419M91 | OVERFLOW OIL LINE | ||
| 36 | 2995807X1 | HOSE | ||
| 37 | 2963655M1 | BRACE | ||
| 38 | 2872819M1 | CLIP | ||
| 39 | 2872820M1 | CLIP | ||
| 40 | 2872815M1 | CLIP | ||
| 41 | 2872816M1 | CLIP | ||
| 42 | 2870620M1 | CLIP | ||
| 43 | 2870621M1 | CLIP | ||
| 44 | 2870619M1 | PROTECTOR | ||
| 45 | 391074X1 | SCREW | ||
| 46 | 1443791X1 | SPRING WASHER | ||
| 47 | NOT USED | |||
| 48 | 2992302M91 | OVERFLOW OIL LINE | ||
| 49 | 1441937X91 | UNION | ||
| 50 | 1444689X1 | OLIVE | ||
| 51 | 1442015X1 | BOXNUT | ||
| 52 | 2999610M1 | BANJO BOLT | ||
| 53 | 390839X1 | SEAL |
