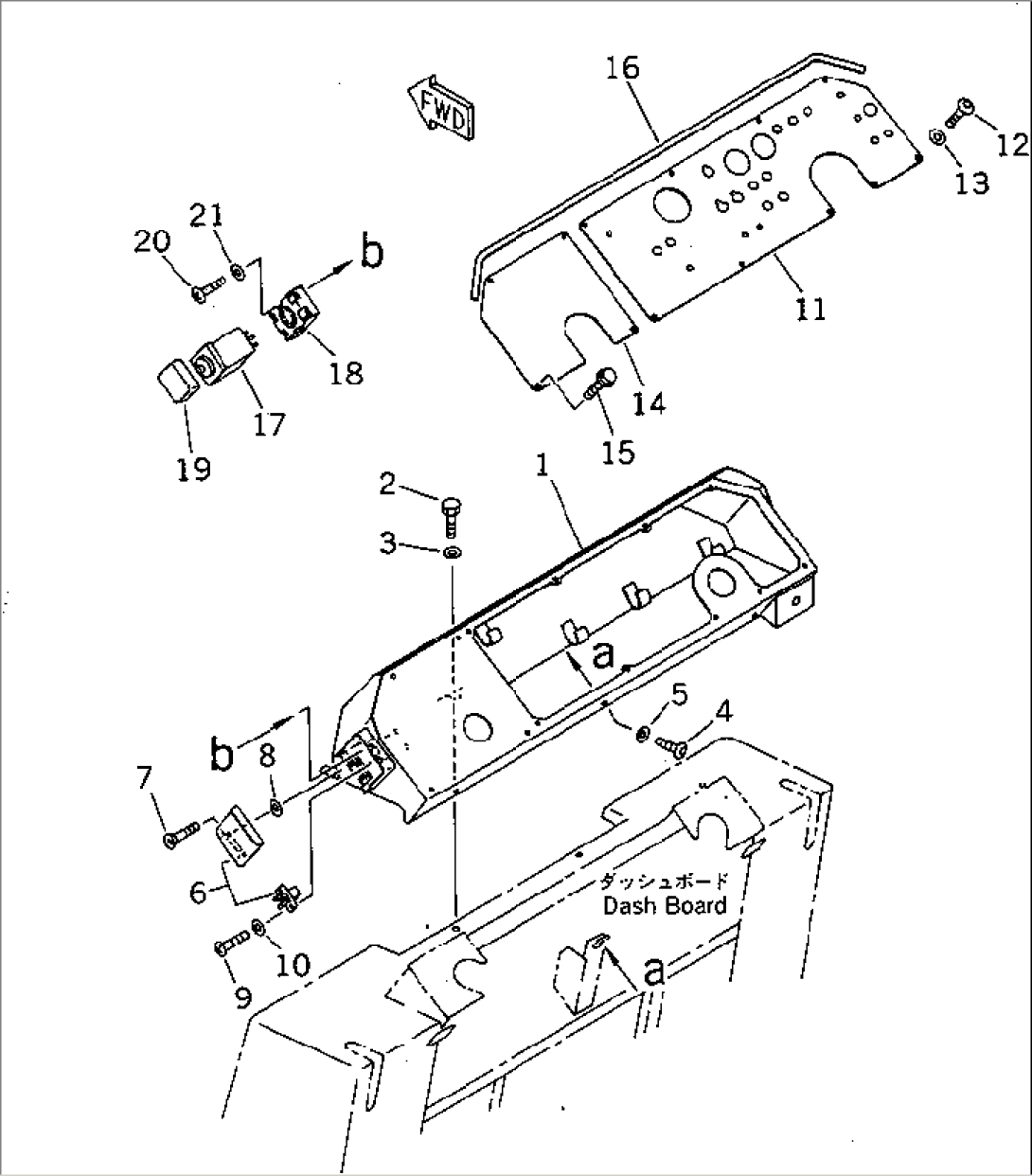

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 278-06-14120 | COVER | 10001- | |
| 2 | 01010-51020 | BOLT | 10001- | |
| 3 | 23A-43-18190 | WASHER | 10009- | |
| 234-54-13252 | WASHER | 10001-10008 | ||
| 4 | 278-54-12710 | SCREW | 10001- | |
| 5 | 01641-20812 | WASHER | 10001- | |
| 6 | 278-06-14130 | COVER | 10001- | |
| 7 | 01224-40306 | SCREW | 10001- | |
| 8 | 01641-20305 | WASHER | 10001- | |
| 9 | 01220-40408 | SCREW | 10001- | |
| 10 | 01641-20405 | WASHER | 10001- | |
| 11 | 278-06-14250 | PANEL,INSTRUMENT | 10009- | |
| 278-06-14110 | PANEL,INSTRUMENT | 10001-10008 | ||
| 12 | 278-54-12710 | SCREW | 10001- | |
| 13 | 01641-20812 | WASHER | 10001- | |
| 14 | 278-06-14180 | PANEL | 10003- | |
| 15 | 01439-00820 | BOLT | 10003- | |
| 16 | 278-06-14240 | SEAL | 10003- | |
| 17 | 278-06-13240 | TIMER,WATER SPRAY | 10001- | |
| 18 | 278-06-13250 | SOCKET | 10001- | |
| 19 | 278-06-13260 | COVER | 10001- | |
| 20 | 01220-40425 | SCREW | 10001- | |
| 21 | 01641-20405 | WASHER | 10001- |
