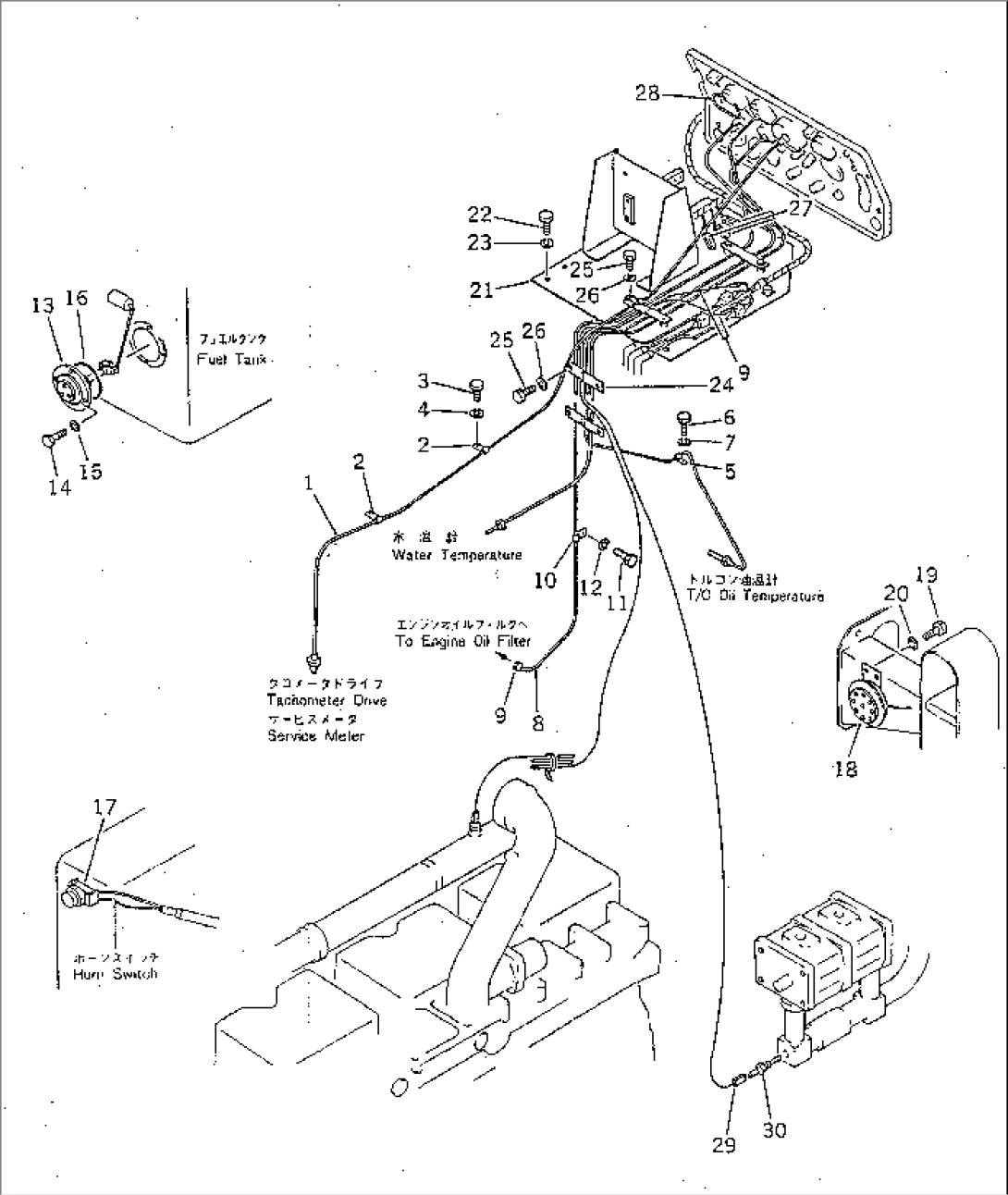

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 178-06-12181 | CABLE,TACHOMETER | 1001- | |
| 2 | 08036-11214 | CLIP | 1001- | |
| 3 | 01010-31220 | BOLT | 1001- | |
| 4 | 01602-01236 | WASHER,SPRING | 1001- | |
| 5 | 08036-00814 | CLIP | 1001- | |
| 6 | 01010-31020 | BOLT | 1001- | |
| 7 | 01602-01030 | WASHER,SPRING | 1001- | |
| 8 | 155-06-13170 | TUBE | 1010- | |
| 8 | 178-06-12210 | TUBE | 1001-1009 | |
| 8 | 07200-30515 | SLEEVE | 1001- | |
| 9 | 07201-00512 | NUT | 1001- | |
| 10 | 08036-00614 | CLIP | 1001- | |
| 11 | 01010-31220 | BOLT | 1001- | |
| 12 | 01602-01236 | WASHER,SPRING | 1001- | |
| 13 | 175-06-35192 | GAUGE UNIT,FUEL | 1001- | |
| 14 | 01010-31025 | BOLT | 1001- | |
| 15 | 01602-01030 | WASHER,SPRING | 1001- | |
| 16 | 07000-02085 | O-RING | 1001- | |
| 17 | 08064-10000 | SWITCH,HORN | 1001- | |
| 18 | 08160-42400 | HORN | 1001- | |
| 19 | 01010-30816 | BOLT | 1001- | |
| 20 | 01602-00825 | WASHER,SPRING | 1001- | |
| 21 | 178-06-15480 | BRACKET | 1001- | |
| 21 | 178-06-15270 | BRACKET,(FOR 50A ALTERNATOR) | 1026- | |
| 22 | 01010-31025 | BOLT | 1001- | |
| 23 | 01602-01030 | WASHER,SPRING | 1001- | |
| 24 | 178-06-11230 | CLAMP | 1001- | |
| 25 | 01010-31225 | BOLT | 1001- | |
| 26 | 01602-01236 | WASHER,SPRING | 1001- | |
| 27 | 22W-06-13590 | DIODE | 1001- | |
| 28 | 178-06-15490 | WIRE | 1001- | |
| 29 | 178-06-15260 | WIRE | 1001- | |
| 30 | 178-06-15250 | SWITCH | 1001- |
