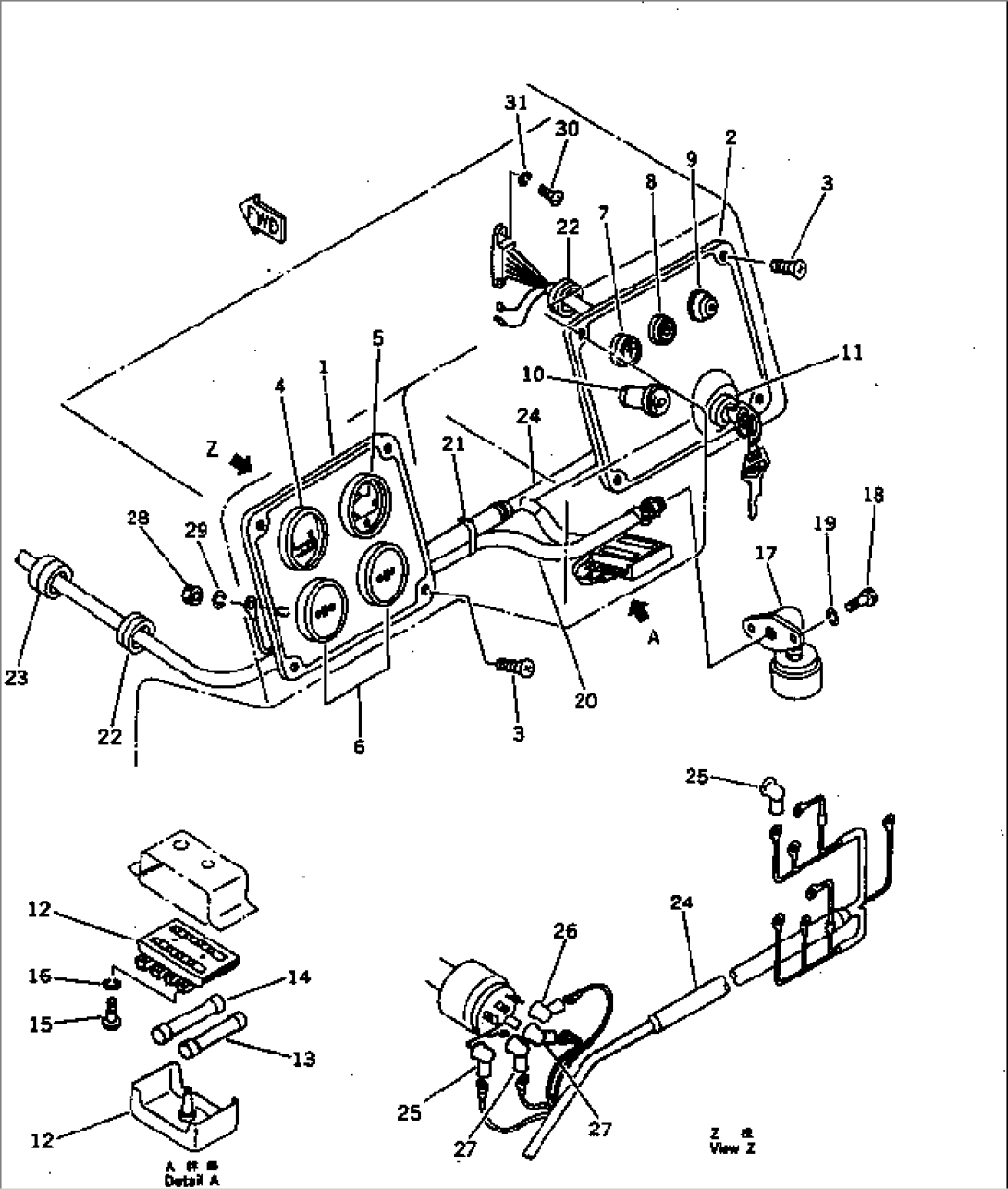

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-06-32150 | PANEL,L.H. | 45200- | |
| 2 | 144-06-51110 | PANEL,R.H. | 45200- | |
| 3 | 01225-40616 | SCREW | 45200- | |
| 4 | 08687-22402 | METER,SERVICE | 45200- | |
| 5 | 195-06-23110 | GAUGE,WATER TEMPERATURE | 45200- | |
| 5 | 08111-12430 | BULB, 3W | 45200- | |
| 6 | 09414-00053 | CAP | 45200- | |
| 7 | 125-06-22220 | LAMP,CHARGE | 45200- | |
| 7 | 08111-02430 | BULB, 3W | 45200- | |
| 8 | 125-06-22210 | LAMP,OIL PRESSURE | 45200- | |
| 8 | 08111-02430 | BULB, 3W | 45200- | |
| 9 | 600-815-3730 | SIGNAL | 45200- | |
| 10 | 08061-60010 | SWITCH,LAMP 2-STEP | 45200- | |
| 11 | 08086-10000 | SWITCH,STARTING | 45200- | |
| 12 | 125-06-21110 | BOX,FUSE | 45200- | |
| 13 | 08040-01000 | FUSE, 10A | 45200- | |
| 14 | 08040-02000 | FUSE, 20A | 45200- | |
| 15 | 01220-40520 | SCREW | 45200- | |
| 16 | 01601-20513 | WASHER,SPRING | 45200- | |
| 17 | 08670-50635 | INDICATOR,DUST | 45200- | |
| 18 | 01010-50616 | BOLT | 45200- | |
| 19 | 01602-20619 | WASHER,SPRING | 45200- | |
| 20 | 08671-00140 | HOSE | 45200- | |
| 21 | 08034-00823 | BAND | 45200- | |
| 22 | 125-06-22250 | CAP | 45200- | |
| 23 | 135-06-34250 | GROMMET | 45200- | |
| 24 | 144-06-52120 | WIRE | 45200- | |
| 25 | 08038-00519 | CAP | 45200- | |
| 26 | 08038-02027 | CAP | 45200- | |
| 27 | 08038-00525 | CAP | 45200- | |
| 28 | 01580-10605 | NUT | 45200- | |
| 29 | 01602-20619 | WASHER,SPRING | 45200- | |
| 30 | 01220-40516 | SCREW | 45200- | |
| 31 | 01601-20513 | WASHER,SPRING | 45200- |
