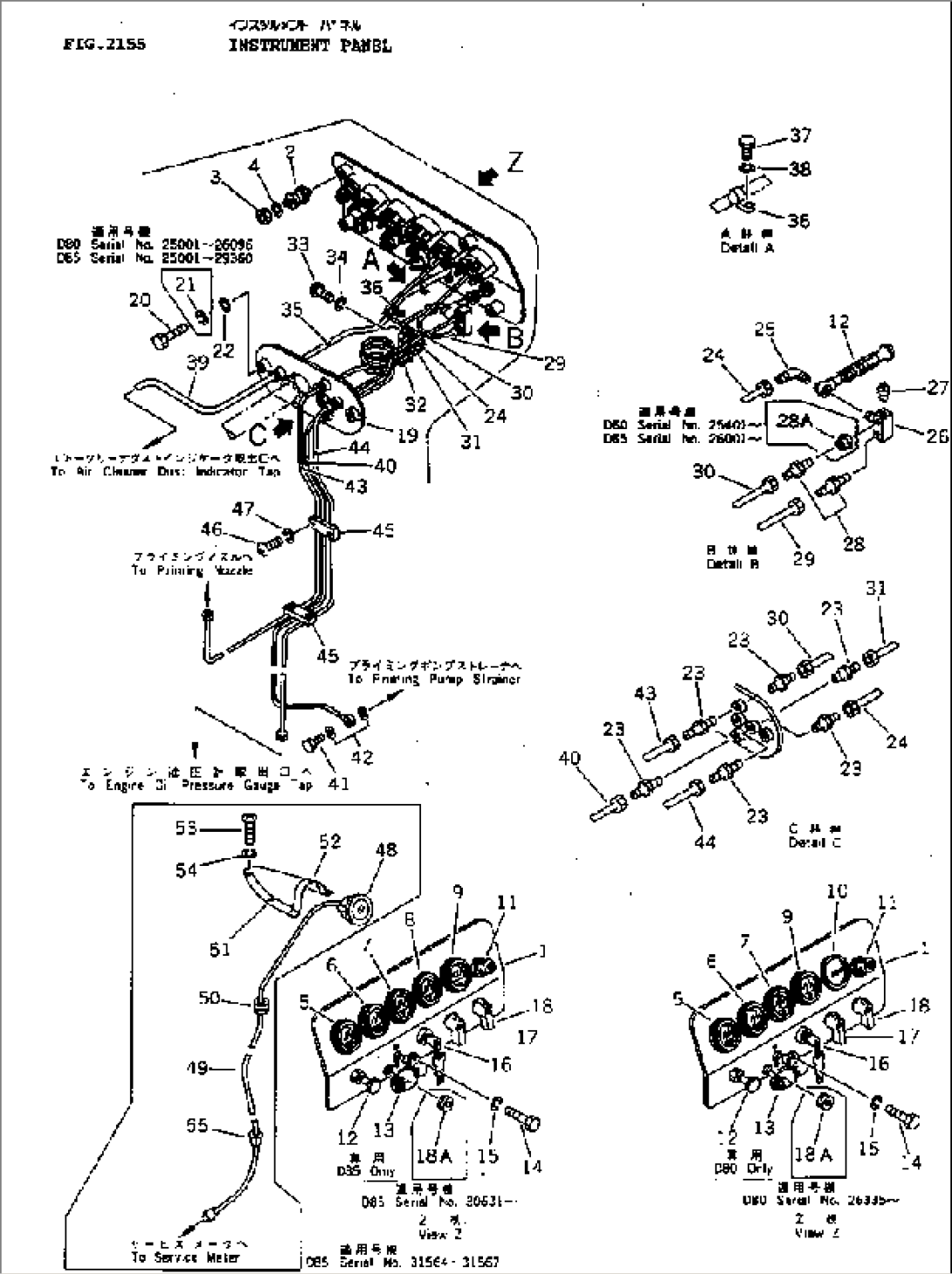

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-13336 | PANEL | 25001- | |
| 2 | 154-06-13910 | ISOLATOR | 25001- | |
| 3 | 01582-11008 | NUT | 25001- | |
| 4 | 01643-31032 | WASHER | 25001- | |
| 5 | 195-06-23150 | GAUGE,PRIMING PRESSURE | 25401- | |
| 5 | 08643-02000 | GAUGE,PRIMING PRESSURE | 25001-25400 | |
| 5 | 08111-12430 | BULB, 3W | 25401- | |
| 6 | 195-06-23130 | GAUGE,OIL PRESSURE | 25401- | |
| 6 | 08643-31000 | GAUGE,OIL PRESSURE | 25001-25400 | |
| 6 | 08111-12430 | BULB, 3W | 25401- | |
| 7 | 195-06-23110 | GAUGE,WATER TEMPERATURE | 25401- | |
| 7 | 154-06-36511 | GAUGE,WATER TEMPERATURE | 25127-25400 | |
| 7 | \0\154-06-36510 | GAUGE,WATER TEMPERATURE | 25001-25126 | |
| 7 | 08111-12430 | BULB, 3W | 25401- | |
| 9 | 195-06-23140 | AMMETER | 25401- | |
| 9 | 08641-05000 | AMMETER | 25001-25400 | |
| 9 | 08111-12430 | BULB, 3W | 25401- | |
| 10 | 195-06-21610 | CAP | 25001- | |
| 11 | 600-815-2210 | SIGNAL,GLOW | 25001- | |
| 12 | 6610-81-3501 | HAND PRIMER ASS'Y | 25001- | |
| 13 | 08670-00001 | INDICATOR,DUST | 25001- | |
| 14 | 01010-50616 | BOLT | 25001- | |
| 15 | 01602-20619 | WASHER,SPRING | 25001- | |
| 16 | 08086-10000 | SWITCH,STARTING | 25001- | |
| 17 | 08063-02000 | SWITCH,LAMP | 25001- | |
| 18 | 08063-01000 | SWITCH,GLOW SIGNAL | 25001- | |
| 18A | 09415-01610 | CAP | 26335- | |
| 19 | 154-06-36711 | COVER | 25001- | |
| 20 | 01010-51030 | BOLT | 25401- | |
| 20 | \0\01010-51040 | BOLT | 25001-25400 | |
| 21 | 01602-21030 | WASHER,SPRING | 25001-26096 | |
| 22 | 01643-31032 | WASHER | 25001- | |
| 23 | 07213-50510 | CONNECTOR | 25001- | |
| 24 | 154-06-36390 | TUBE | 25001- | |
| 25 | 6610-81-8820 | ELBOW | 25001- | |
| 26 | 154-06-14460 | ELBOW | 25001- | |
| 27 | 07042-20108 | PLUG | 25001- | |
| 28 | 07213-50510 | CONNECTOR | 25001- | |
| 28A | 07201-50512 | NUT | 25401- | |
| 29 | 154-06-36382 | TUBE | 25001- | |
| 30 | 154-06-36322 | TUBE | 25001- | |
| 31 | 154-06-36562 | TUBE | 25001- | |
| 32 | 195-06-13330 | CLAMP | 25001- | |
| 33 | 01220-30420 | SCREW | 25001- | |
| 34 | 01601-20410 | WASHER,SPRING | 25001- | |
| 35 | 08671-21070 | HOSE | 25001- | |
| 36 | 08036-01414 | CLIP | 25401- | |
| 36 | \0\08035-01510 | CLIP | 25001-25400 | |
| 37 | 01010-51016 | BOLT | 25001- | |
| 38 | 01643-31032 | WASHER | 26097- | |
| 38 | \0\01602-21030 | WASHER,SPRING | 25001-26096 | |
| 39 | 08671-40040 | HOSE | 25001- | |
| 40 | 154-06-36371 | TUBE | 25001- | |
| 41 | 154-01-11340 | BOLT | 25001- | |
| 42 | 07005-01012 | SEAL, WASHER | 25001- | |
| 43 | 154-06-36351 | TUBE | 25001- | |
| 44 | 154-06-36361 | TUBE | 25001- | |
| 45 | 195-06-13330 | CLAMP | 25001- | |
| 46 | 01220-30420 | SCREW | 25001- | |
| 47 | 01601-20410 | WASHER,SPRING | 25001- |
