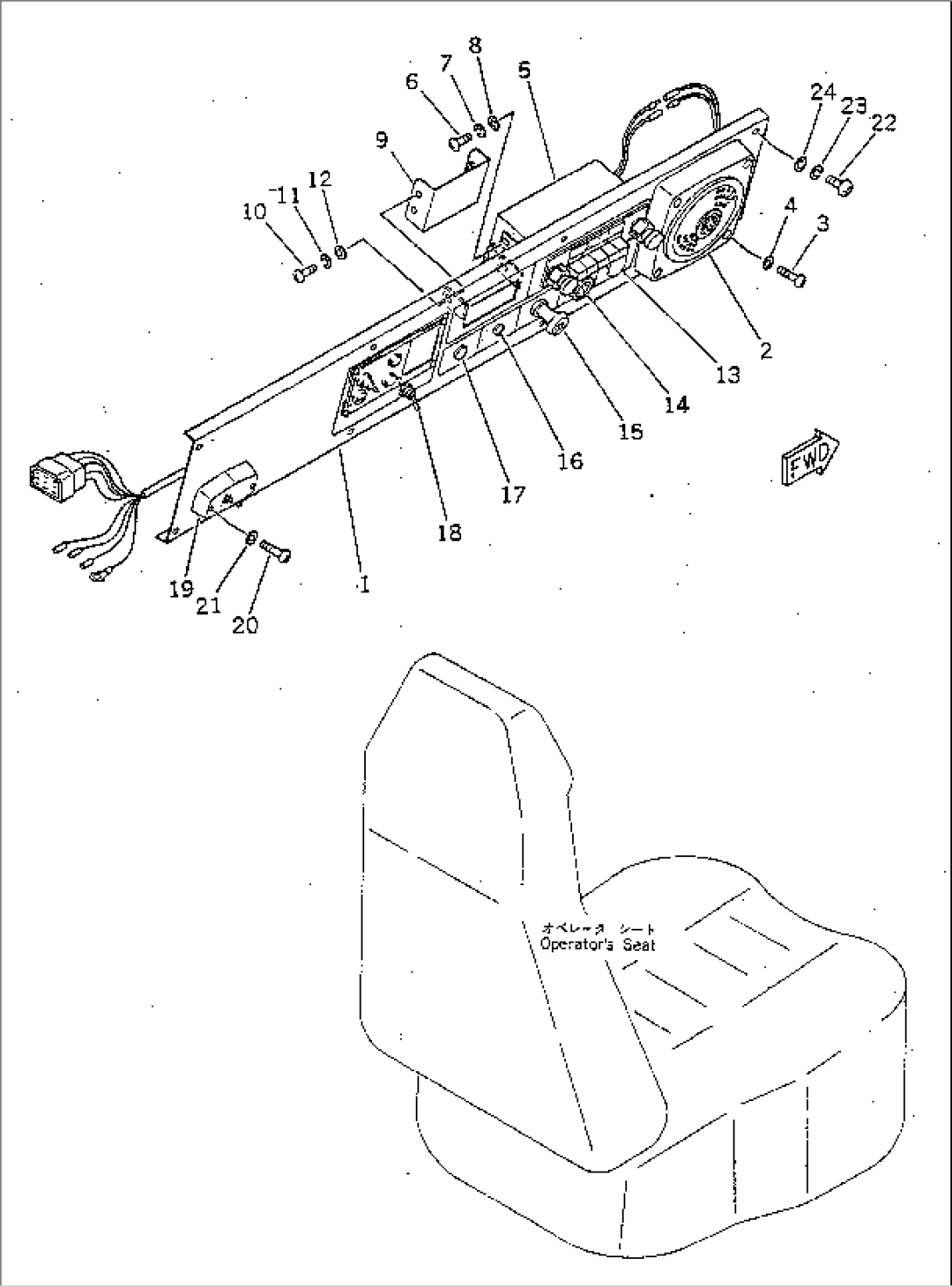

Item | Part No. | Part Name | Qty | Serial No. |
23S-06-00032 | PANEL ASS'Y | 5001- | ||
1 | 23S-06-11812 | PANEL | 5001- | |
2 | 20G-06-15120 | SPEAKER | 5001- | |
3 | 01220-40516 | SCREW | 5001- | |
4 | 01641-20508 | WASHER | 5001- | |
5 | 20G-06-15110 | RADIO | 5001- | |
6 | 01220-40510 | SCREW | 5001- | |
7 | 01601-20513 | WASHER | 5001- | |
8 | 01642-20508 | WASHER | 5001- | |
9 | 23S-06-11842 | COVER | 5001- | |
10 | 01220-40510 | SCREW | 5001- | |
11 | 01601-20513 | WASHER | 5001- | |
12 | 01642-20508 | WASHER | 5001- | |
13 | 09415-01610 | CAP | 5001- | |
14 | 22W-06-13280 | LAMP,WORK | 5001- | |
15 | 08061-60020 | SWITCH,WORKING LAMP | 5001- | |
16 | 09415-00506 | CAP | 5001- | |
17 | 09415-00706 | CAP | 5001- | |
18 | 23S-06-14410 | SWITCH,DEFROSTER | 5001- | |
19 | 22W-06-14760 | LAMP ASS'Y | 5001- | |
19 | 23S-05-25480 | BULB, 10W | 5001- | |
20 | 01220-40420 | SCREW | 5001- | |
21 | 01641-20405 | WASHER | 5001- | |
22 | 01220-40612 | SCREW | 5001- | |
23 | 01602-20619 | WASHER | 5001- | |
24 | 01641-20608 | WASHER | 5001- |
