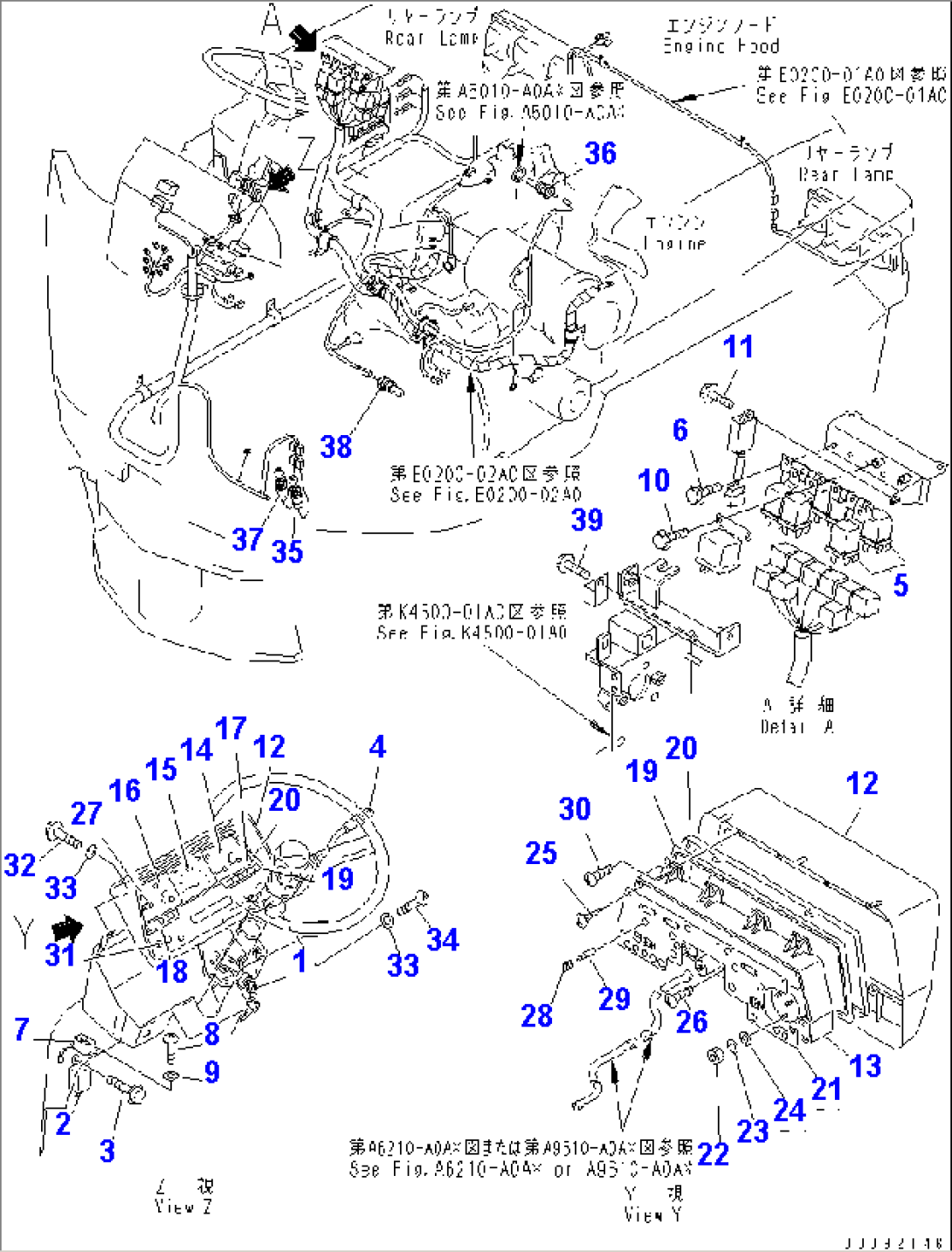

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08086-10000 | SWITCH,STARTING | 23001-@ | |
| 2 | 363-06-31240 | FLASHER | 23001-@ | |
| 3 | 01435-00612 | BOLT | 23001-@ | |
| 4 | 363-06-31140 | SWITCH,COMBINATION | 23001-@ | |
| 5 | 363-06-31130 | RELAY | 23001-@ | |
| 6 | 01435-00610 | BOLT | 23001-@ | |
| 7 | 363-06-31151 | BUZZER | 23001-@ | |
| 8 | 01023-10414 | SCREW | 23001-@ | |
| 9 | 01641-20405 | WASHER | 23001-@ | |
| 10 | 01435-00625 | BOLT | 23001-@ | |
| 11 | 01435-00616 | BOLT | 23001-@ | |
| 42A-06-25150 | PANEL ASS'Y | 23001-23500 | ||
| 12 | 417-06-25120 | PANEL | 23001-@ | |
| 13 | 42A-06-15221 | HOUSING | 23001-23500 | |
| 14 | 363-06-35311 | GAUGE,TEMPERATURE | 23001-23500 | |
| 15 | 363-06-35320 | TACHOMETER | 23001-@ | |
| 16 | 363-06-35381 | GAUGE,FUEL | 23001-23500 | |
| 17 | 363-06-35331 | LENS | 23001-@ | |
| 18 | 42A-06-25160 | LENS | 23001-@ | |
| 19 | 42A-06-15280 | PLATE,SHADOW | 23001-23500 | |
| 20 | 42A-06-15290 | COVER,FRONT | 23001-@ | |
| 21 | 363-06-36310 | PLATE,PRINT | 23001-23500 | |
| 22 | 01580-10302 | NUT | 23001-23500 | |
| 23 | 01601-20307 | WASHER,SPRING | 23001-23500 | |
| 24 | 01641-20305 | WASHER | 23001-23500 | |
| 25 | 01370-00412 | SCREW | 23001-23500 | |
| 26 | 01023-10408 | SCREW | 23001-@ | |
| 27 | 42A-06-15320 | METER,SERVICE | 23001-23500 | |
| 28 | 363-06-35360 | SOCKET | 23001-@ | |
| 29 | 363-06-35390 | BULB, 1.4W | 23001-@ | |
| 30 | 42A-06-15350 | SCREW | 23001-@ | |
| 31 | 363-06-35420 | CAP | 23001-@ | |
| 32 | 363-06-35410 | BOLT | 23001-@ | |
| 33 | 01642-40608 | WASHER | 23001-@ | |
| 34 | 01220-70616 | SCREW | 23001-@ | |
| 35 | 421-S33-3282 | SWITCH,PARKING BRAKE | 23001-@ | |
| 36 | 417-06-11210 | SENSOR | 23001-@ | |
| 37 | 363-06-37120 | SWITCH,STOP LAMP | 23001-@ | |
| 38 | 363-06-31220 | SENSOR | 23001-@ | |
| 39 | 01435-00610 | BOLT | 23001-@ |
