| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (7831-46-1004) | MONITOR | 1073- | |
| (7831-46-1003) | MONITOR | 1039-1072 | ||
| (7831-46-1002) | MONITOR | .-1038 | ||
| (7831-46-1001) | MONITOR ASS'Y | 1001-. | ||
| 2 | 01023-20612 | SCREW | 1039- | |
| 01023-20616 | SCREW | 1001-1038 |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 1 s/n 1001 up
- Operator's compartment and control system
- Instrument panel (monitor panel) (km/h)
Поиск по каталогу

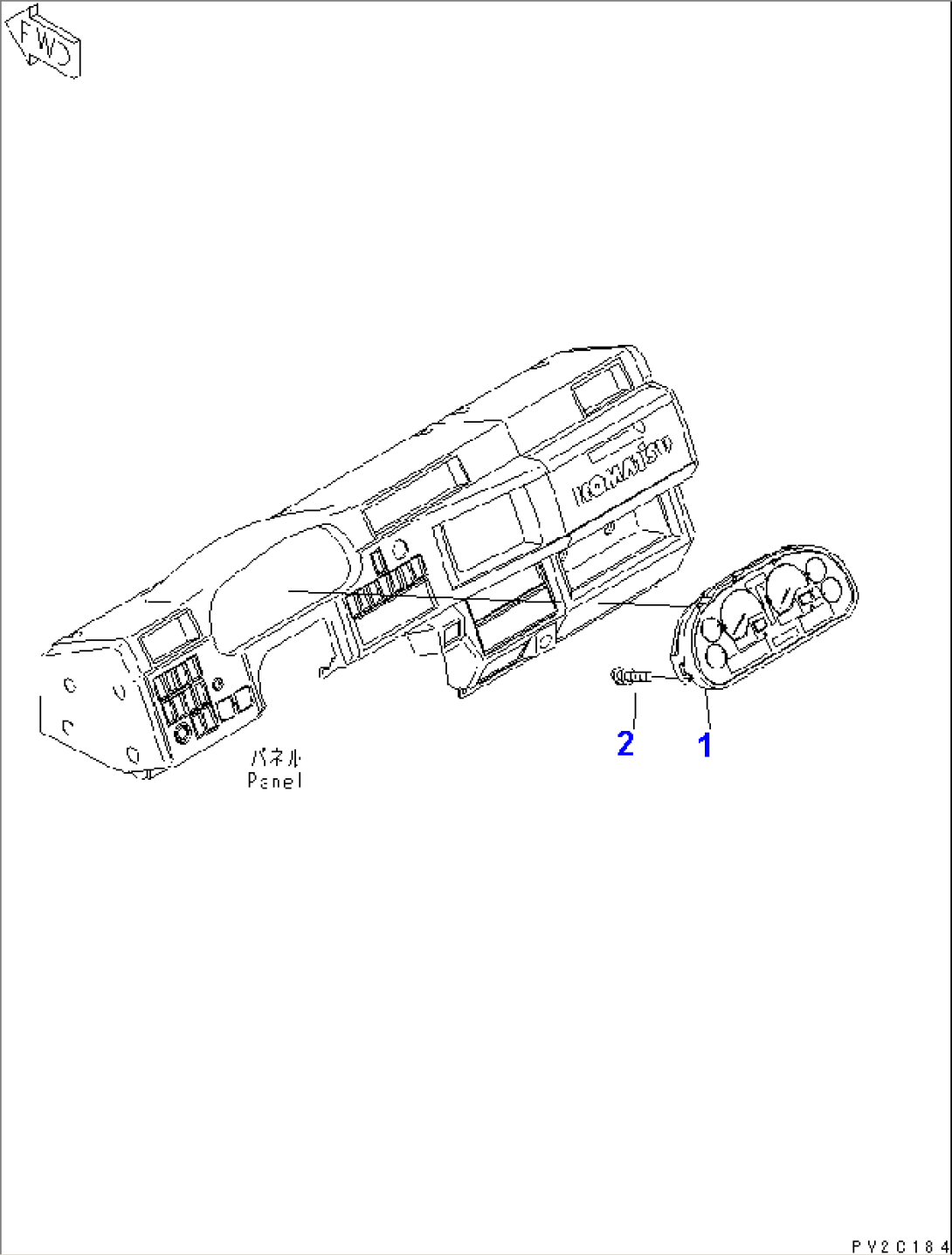

INSTRUMENT PANEL (MONITOR PANEL) (KM/H)
