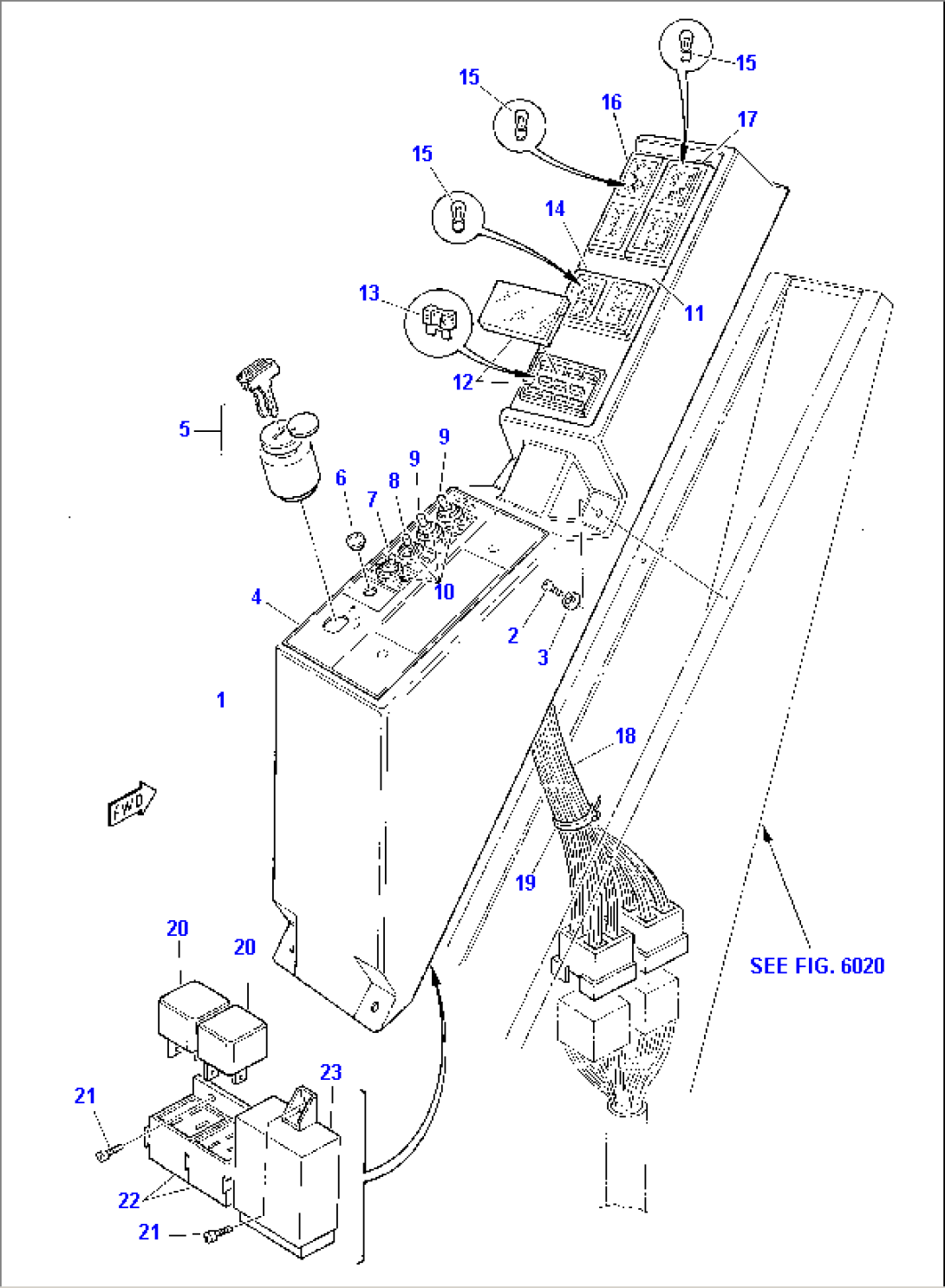

Item | Part No. | Part Name | Qty | Serial No. |
1 | 200292938 | DASHBOARD | ||
2 | 801250260 | SCREW | ||
3 | 816212687 | WASHER | ||
4 | 885411150 | SWITCHES SUPPORT PLATE | ||
5 | 885081070 | STARTER SWITCH | ||
6 | 816210558 | PLUG | ||
7 | 885080060 | SWITCH, HEATING | ||
8 | 885081077 | SWITCH, WIPER | ||
9 | 885081048 | SWITCH, LAMP | ||
10 | 885411029 | NUT | ||
11 | 885411148 | SWITCHES SUPPORT PLATE | ||
12 | 885171007 | BOXE, FUSE | ||
13 | 885091012 | FUSE 3A | ||
13 | 885091006 | FUSE 7.5A | ||
13 | 885091008 | FUSE 15A | ||
14 | 885141137 | WARNING LAMP GR. | ||
15 | 885141072 | BULB | ||
16 | 886041017 | SERVICE METER - WATER TEMPERATURE | ||
17 | 885141138 | FUEL LEVEL | ||
18 | 885270114 | WIRING HARNESS | ||
19 | 885180012 | HOSE-CLAMP | ||
20 | 885071015 | RELAY (ONLY FOR TUV 20 km/h) | ||
21 | 801370064 | SCREW | ||
22 | 885161034 | SUPPORT | ||
23 | 885411152 | TIMER | ||
SEE FIG. 6020 |
