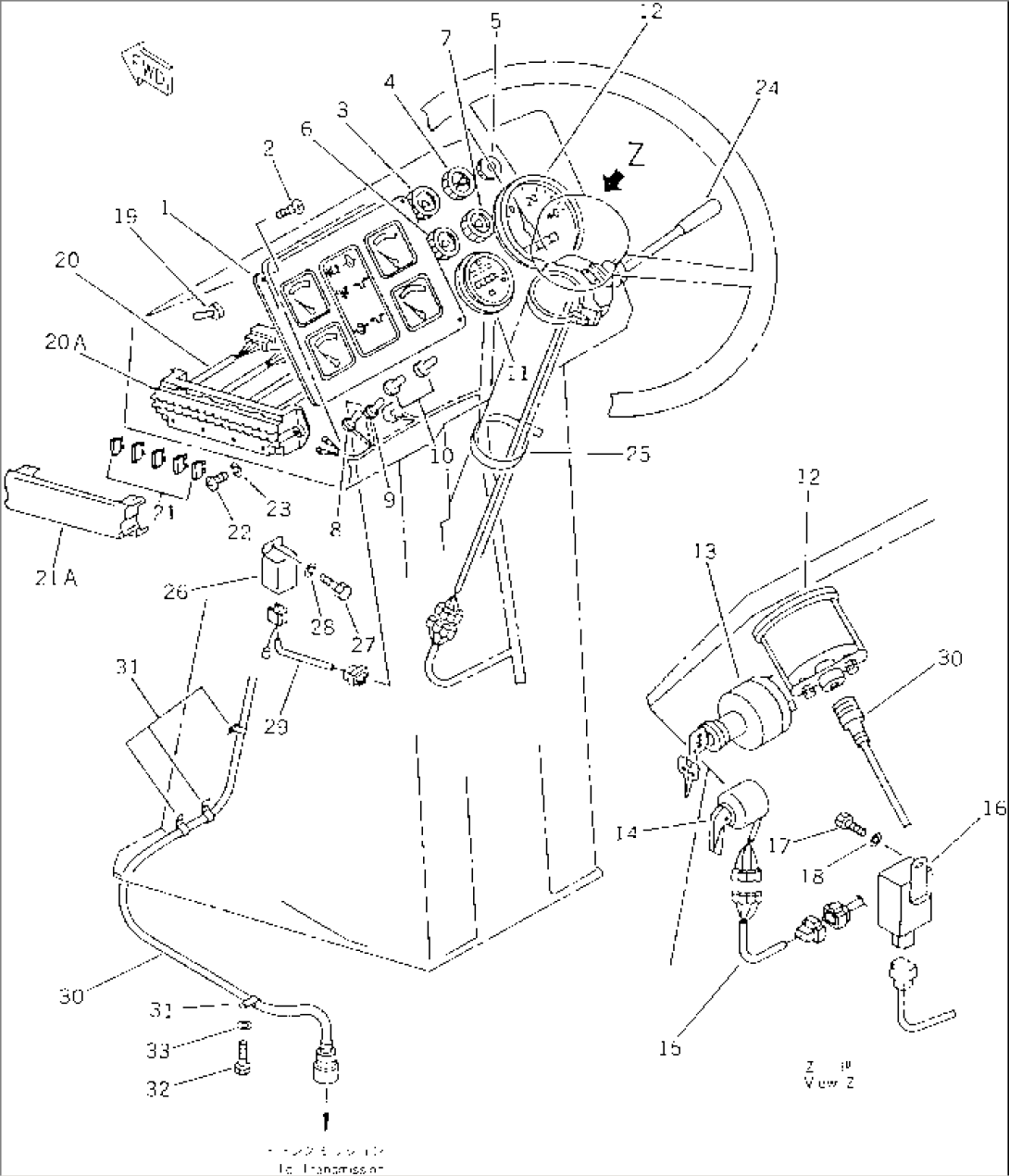

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-15112 | GAUGE CLUSTER | 10001- | |
| 1 | 417-06-15330 | GAUGE,WATER TEMPERATURE | 10001- | |
| 1 | 417-06-15340 | GAUGE,OIL TEMPERATURE | 10001- | |
| 1 | 417-06-15350 | GAUGE,FUEL LEVEL | 10001- | |
| 1 | 417-06-15360 | GAUGE,VOLT | 10001- | |
| 1 | 417-06-15390 | PLATE, CAUTION,CAUTION | 10001- | |
| 1 | 08102-02403 | BULB, 3W | 10001- | |
| 1 | 417-06-15380 | SOCKET | 10001- | |
| 1 | 417-06-15310 | PANEL | 10001- | |
| 1 | 417-06-15320 | GASKET,PANEL | 10001- | |
| 2 | 01224-40520 | SCREW | 10001- | |
| 3 | 417-06-15420 | LAMP,HAZARD | 10001- | |
| 3 | 08111-02430 | BULB, 3W | 10001- | |
| 4 | 566-06-17150 | LAMP,TURN SIGNAL | 10001- | |
| 4 | 08111-02430 | BULB, 3W | 10001- | |
| 5 | 600-815-3730 | SIGNAL,HEATER | 10001- | |
| 6 | 08147-42460 | LAMP,HIGH BEAM PILOT | 10001- | |
| 6 | 08111-02430 | BULB, 3W | 10001- | |
| 7 | 417-06-15221 | LAMP,WORKING LAMP PILOT | 10001- | |
| 7 | 08111-02430 | BULB, 3W | 10001- | |
| 8 | 08501-42509 | SWITCH,HAZARD | 10001- | |
| 9 | 417-06-11640 | SWITCH,WORKING LAMP | 10001- | |
| 10 | 417-06-11630 | CAP | 10001- | |
| 11 | 08687-22403 | METER,SERVICE | 10001- | |
| 11 | 7815-11-1010 | BULB, 1.4W | 10001- | |
| 12 | 417-06-15141 | SPEEDOMETER | 10001- | |
| 12 | 08111-02430 | BULB, 3W | 10001- | |
| 13 | 124-06-31310 | SWITCH,STARTING | 10001- | |
| 14 | 417-06-11610 | SWITCH,LAMP | 10001- | |
| 15 | 417-06-12510 | WIRE ASS'Y | 10001- | |
| 16 | 22W-06-13251 | FLASHER | 10001- | |
| 17 | 01010-30610 | BOLT | 10001- | |
| 18 | 01643-30623 | WASHER | 10001- | |
| 19 | 421-06-11551 | SWITCH,TRANSMISSION CUT OFF | 10001- | |
| 20 | 417-06-12660 | WIRE ASS'Y | 10001- | |
| 20A | 415-06-12220 | BODY,FUSE BOX | 10001- | |
| 21 | 283-06-16190 | FUSE, 10A | 10001- | |
| 21 | 415-06-12330 | FUSE, 15A | 10001- | |
| 21 | 22W-06-13160 | FUSE, 20A | 10001- | |
| 21A | 415-06-12230 | COVER,FUSE | 10001- | |
| 22 | 01220-40620 | SCREW | 10001- | |
| 23 | 01602-20619 | WASHER,SPRING | 10001- | |
| 24 | 417-06-11280 | SWITCH,TURN SIGNAL | 10001- | |
| 25 | 08034-00823 | BAND | 10001- | |
| 26 | 421-06-11940 | RELAY | 10001- | |
| 27 | 01010-50612 | BOLT | 10001- | |
| 28 | 01643-30623 | WASHER | 10001- | |
| 29 | 419-06-12530 | WIRE ASS'Y | 10001- | |
| 30 | 417-06-11332 | CABLE | 10001- | |
| 31 | 424-06-12370 | CLIP | 10001- | |
| 32 | 01010-31020 | BOLT | 10001- | |
| 33 | 01643-31032 | WASHER | 10001- |
