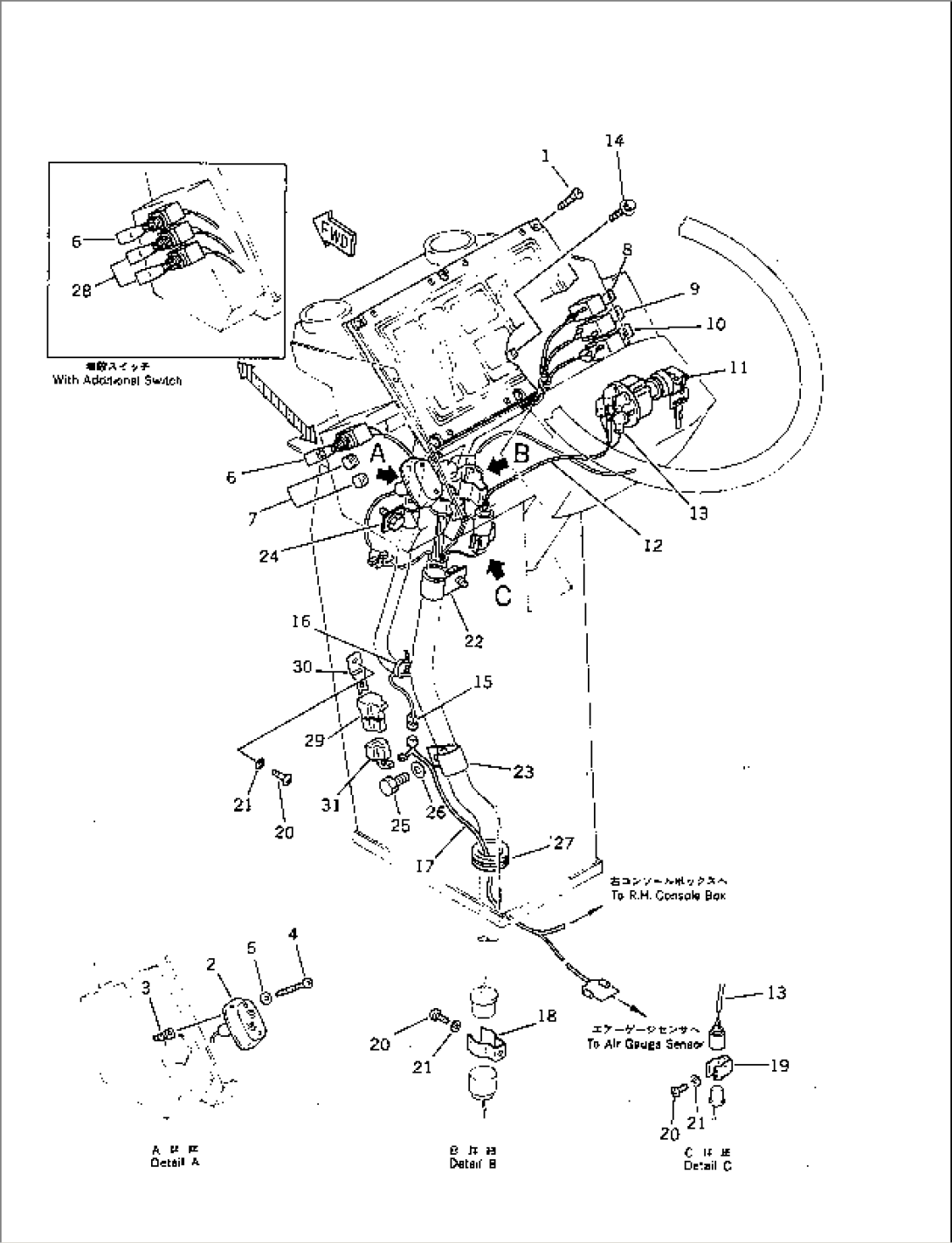

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01225-40620 | SCREW | A30501- | |
| 2 | 01641-20608 | WASHER | A30501- | |
| 3 | 23S-06-13270 | LAMP ASS'Y,CAUTION | A30501- | |
| 3 | 08110-12410 | BULB, 12W | A30501- | |
| 4 | 421-06-15321 | GROMMET | A30501- | |
| 5 | 421-06-15330 | SCREW | A30501- | |
| 6 | 421-06-15340 | WASHER | A30501- | |
| 7 | 421-06-11551 | SWITCH,TRANSMISSION CUT OFF | A30501- | |
| 8 | 09415-00706 | CAP | A30501- | |
| 9 | 421-06-11511 | SWITCH,PARKING BRAKE | A30501- | |
| 10 | 421-06-11521 | SWITCH,WORK LAMP | A30501- | |
| 11 | 421-06-11532 | SWITCH,GLOW | A30501- | |
| 12 | 08086-10100 | SWITCH,STARTING | A30501- | |
| 13 | 421-06-11692 | WIRE ASS'Y | A30501- | |
| 14 | 08038-00518 | CAP | A30501- | |
| 15 | 01435-00620 | BOLT | A30501- | |
| 16 | 424-06-12240 | CONNECTOR | A30501- | |
| 17 | 08034-00823 | BAND | A30501- | |
| 18 | 421-06-13380 | WIRE ASS'Y | A30501- | |
| 19 | 421-06-12610 | CLIP | A30501- | |
| 20 | 283-06-17130 | CLIP | A30501- | |
| 21 | 01220-40608 | SCREW | A30501- | |
| 22 | 01641-20608 | WASHER | A30501- | |
| 23 | 08036-02514 | CLIP | A30501- | |
| 24 | 08036-03014 | CLIP | A30501- | |
| 25 | 08036-02514 | CLIP | A30501- | |
| 26 | 01010-51016 | BOLT | A30501- | |
| 27 | 01643-31032 | WASHER | A30501- | |
| 28 | 421-09-11930 | GROMMET | A30501- | |
| 29 | 421-06-11561 | SWITCH,SPARE | A30501- | |
| 30 | 421-06-11940 | RELAY | A30501- | |
| 31 | 287-06-16420 | BRACKET | A30501- | |
| 32 | 419-06-12530 | WIRE ASS'Y | A30501- |
