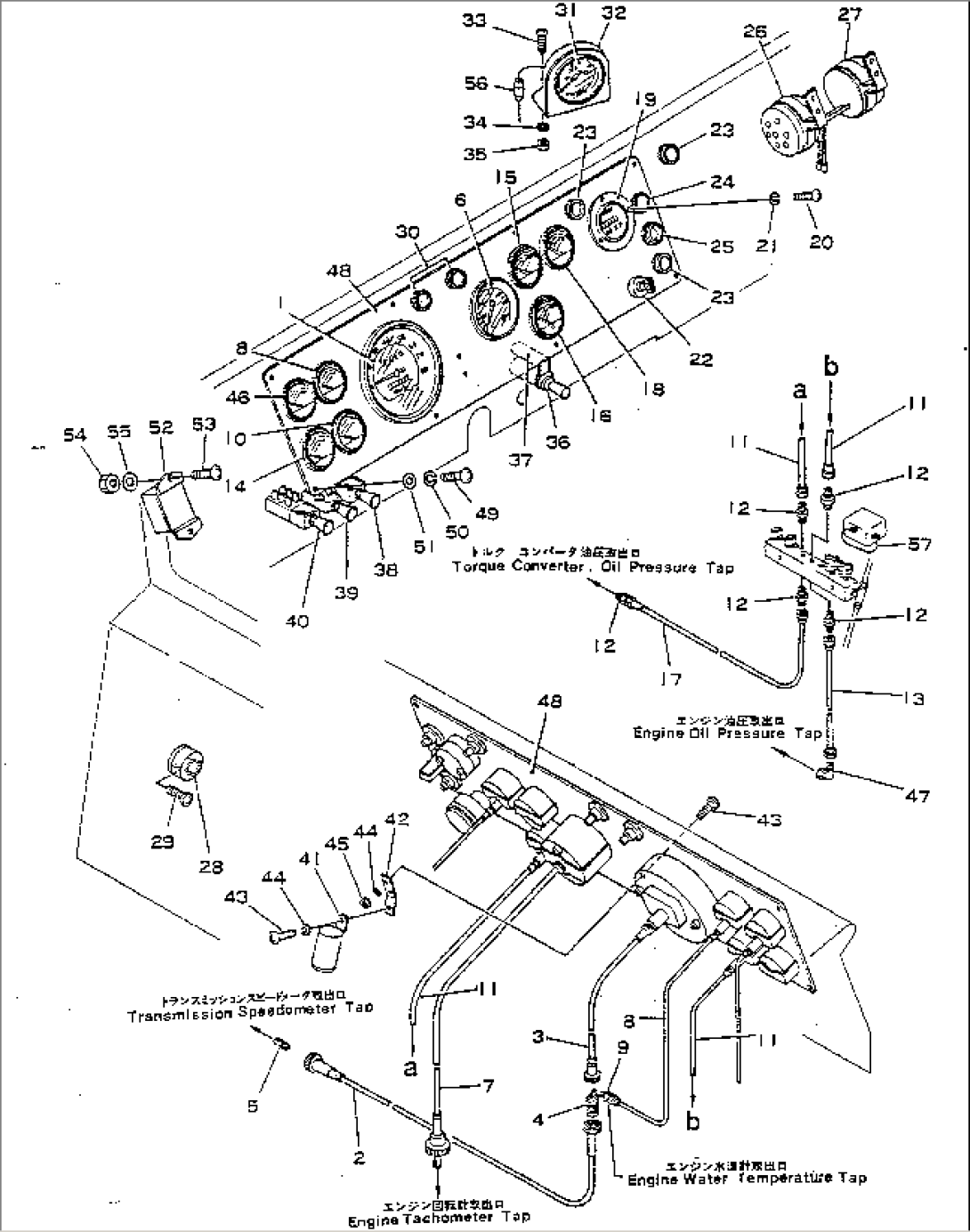

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 565-06-13130 | SPEEDOMETER | 1002-1054 | |
| 2 | 568-06-15110 | CABLE | 1002-@ | |
| 3 | 566-06-15150 | CABLE | 1002-@ | |
| 4 | 566-06-15180 | JOINT | 1002-@ | |
| 5 | 566-06-15190 | KEY | 1002-@ | |
| 6 | 567-06-15740 | TACHOMETER | 1002-@ | |
| 7 | 568-06-15130 | CABLE | 1002-1054 | |
| 8 | 08645-12500 | GAUGE,WATER TEMPERATURE | 1013-1054 | |
| 9 | 565-06-13212 | ADAPTER | 1013-@ | |
| 10 | 08643-01000 | GAUGE,OIL PRESSURE | 1002-@ | |
| 11 | 566-06-15270 | TUBE | 1002-1054 | |
| 12 | 07213-50510 | CONNECTOR | 1002-1054 | |
| 13 | 566-06-15212 | TUBE | 1002-@ | |
| 14 | 08641-05000 | AMMETER | 1002-@ | |
| 15 | 08646-14500 | GAUGE,OIL TEMPERATURE | 1013-1054 | |
| 16 | 08643-21000 | GAUGE,OIL PRESSURE | 1002-1054 | |
| 17 | 566-06-15222 | TUBE | 1002-1054 | |
| 18 | 08644-01000 | GAUGE,AIR PRESSURE | 1002-1054 | |
| 19 | 566-06-15800 | METER | 1002-1054 | |
| 20 | 01220-40412 | SCREW | 1002-1054 | |
| 21 | 01601-10410 | WASHER | 1002-1054 | |
| 22 | 08086-00000 | SWITCH,STARTING | 1002-@ | |
| 23 | 08147-32400 | LAMP | 1013-@ | |
| 23 | 08111-02430 | BULB¤ 3W | 1002-@ | |
| 24 | 568-06-12350 | LAMP | 1044-1054 | |
| 08147-22402 | LAMP | 1013-1043 | ||
| 594-06-11940 | BULB | 1044-1054 | ||
| 08111-02430 | BULB¤ 3W | 1002-1043 | ||
| 25 | 566-06-13651 | LAMP | 1044-@ | |
| 566-06-13650 | LAMP | 1002-1043 | ||
| 08110-12410 | BULB¤ 12W | 1044-@ | ||
| 566-06-13680 | BULB | 1002-1043 | ||
| 26 | 08166-02445 | BUZZER | 1033-@ | |
| 27 | 08166-02480 | BUZZER | 1023-@ | |
| 28 | 568-06-15140 | BUZZER | 1002-@ | |
| 29 | 01225-40416 | SCREW | 1002-@ | |
| 30 | 08147-32401 | LAMP | 1013-1054 | |
| 08111-02430 | BULB¤ 3W | 1002-1054 | ||
| 31 | 566-06-15910 | METER,SHIFT | 1002-@ | |
| 32 | 566-06-15720 | BRACKET | 1002-@ | |
| 33 | 01220-40612 | SCREW | 1002-@ | |
| 34 | 01602-10619 | WASHER | 1002-@ | |
| 35 | 01580-20605 | NUT | 1002-@ | |
| 36 | 09491-00000 | LIGHTER | 1002-@ | |
| 37 | 566-06-13780 | RESISTOR | 1002-@ | |
| 38 | 08061-10010 | SWITCH | 1013-@ | |
| 39 | 08061-00020 | SWITCH | 1013-@ | |
| 40 | 566-06-16253 | SWITCH | 1002-@ | |
| 41 | 08077-32400 | FLASHER | 1002-@ | |
| 42 | 566-06-15331 | BRACKET | 1002-@ | |
| 43 | 01220-40612 | SCREW | 1002-@ | |
| 44 | 01602-20619 | WASHER | 1002-@ | |
| 45 | 01580-10605 | NUT | 1002-@ | |
| 46 | 08642-00000 | GAUGE | 1036-@ | |
| 47 | 6610-81-8820 | ELBOW | 1013-@ | |
| 48 | 568-06-15311 | PANEL | 1023-1054 | |
| 49 | 01220-40616 | SCREW | 1002-@ | |
| 50 | 01602-20619 | WASHER | 1002-@ | |
| 51 | 01642-20608 | WASHER | 1002-@ | |
| 52 | 154-06-32270 | RESISTOR | 1036-@ | |
| 53 | 01220-40616 | SCREW | 1036-@ | |
| 54 | 01580-10605 | NUT | 1036-@ | |
| 55 | 01602-20619 | WASHER | 1036-@ | |
| 56 | 566-06-12920 | RESISTOR | 1002-@ | |
| 57 | 568-06-12130 | CABLE | 1002-@ |
