| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23F-06-11740 | BRACKET | 11001-@ | |
| 2 | 01010-51025 | BOLT | 11001-@ | |
| 3 | 01643-31032 | WASHER | 11001-@ | |
| 4 | 130-911-1640 | PLUG | 11001-@ | |
| 5 | 09415-01610 | CAP | 11001-@ |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gh320 2 s/n 11001 up
- Engine related parts and electrical system
- Instrument sub panel(#11001 11001)
Поиск по каталогу

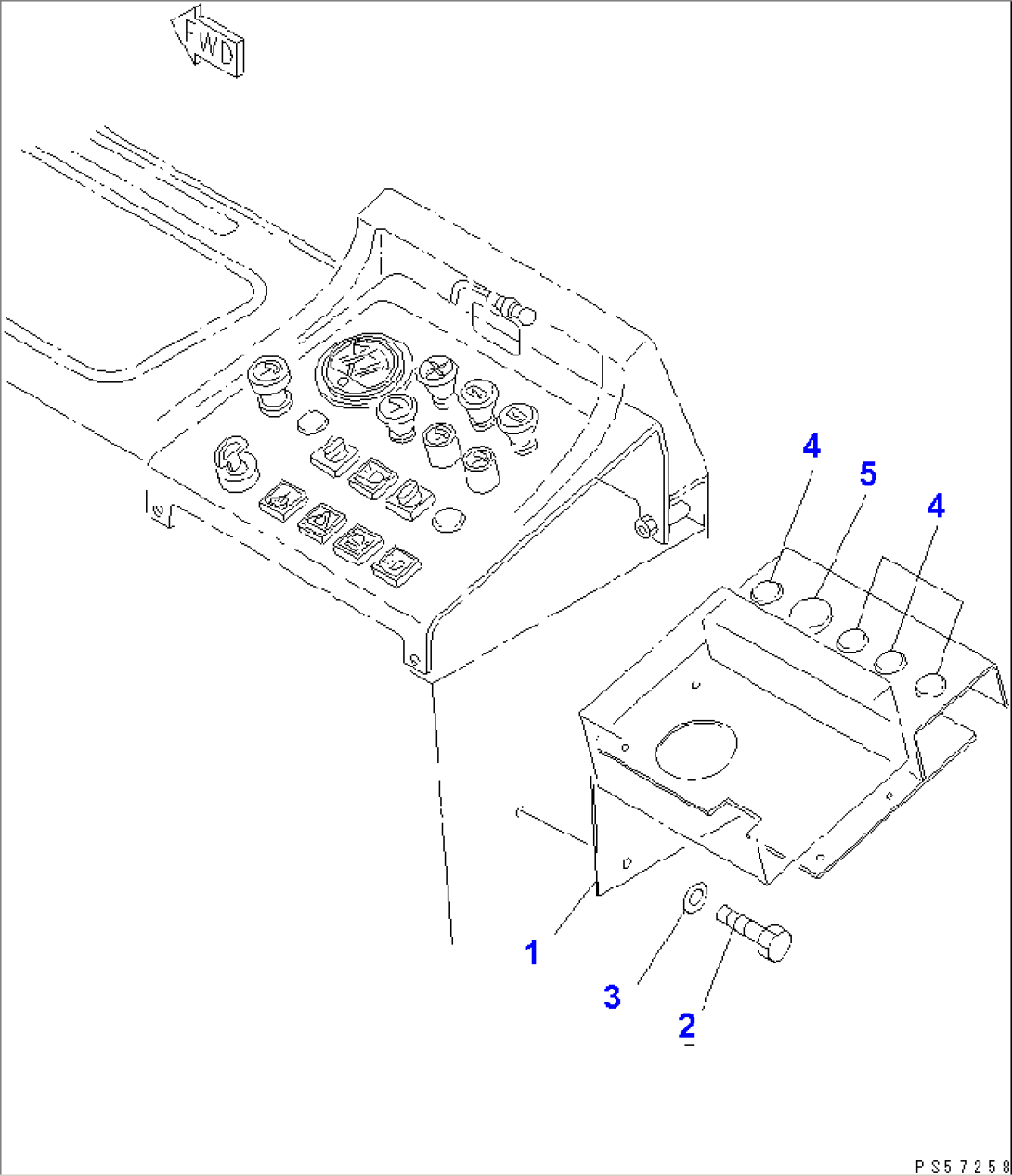

INSTRUMENT SUB PANEL(#11001-11001)
