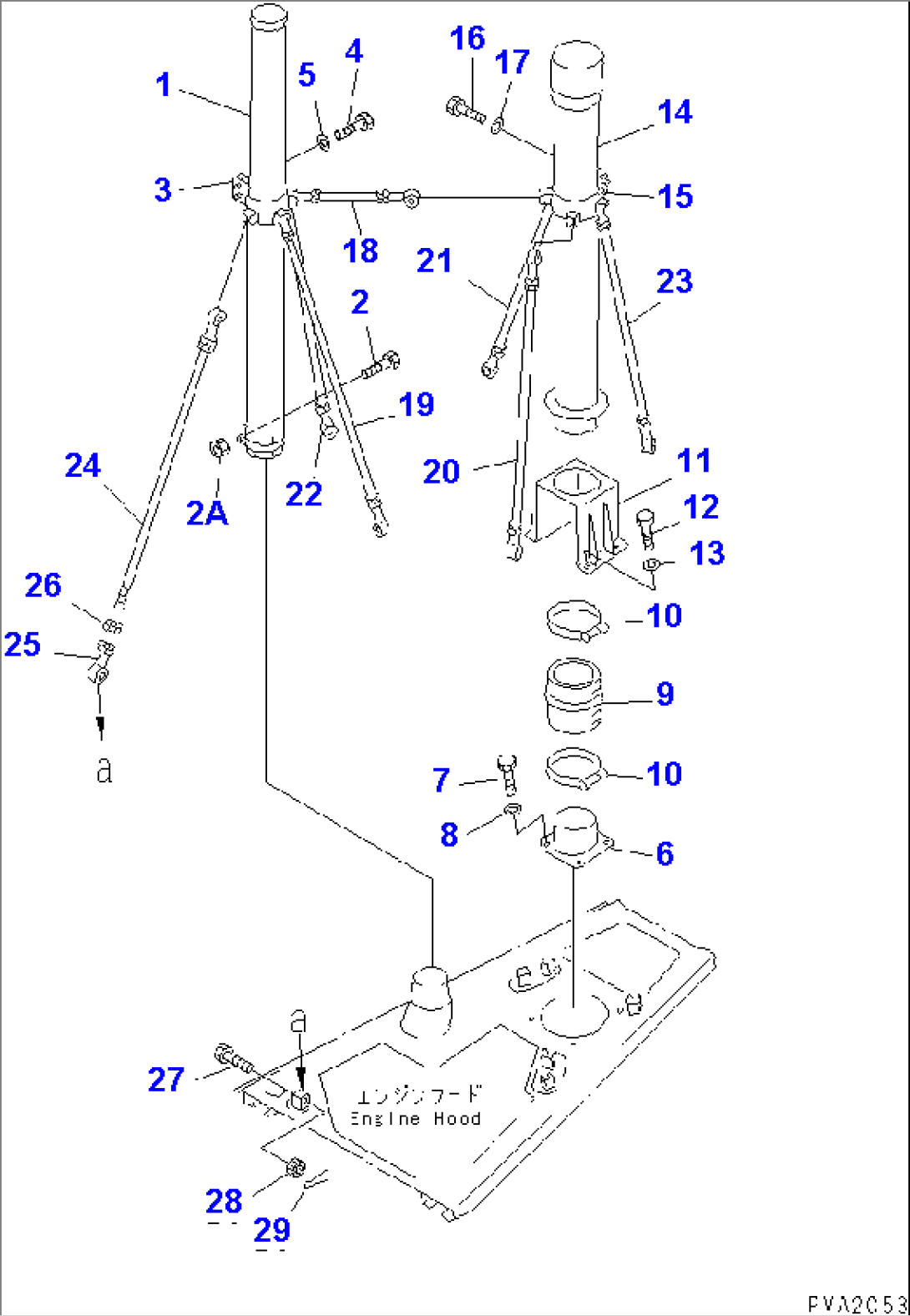

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-12840 | PIPE | 3001- | |
| 2 | 01016-51045 | BOLT | 3001- | |
| 2A | 01580-11008 | NUT | 3001- | |
| 3 | 14X-54-12880 | CLAMP | 3001- | |
| 4 | 01010-51035 | BOLT | 3001- | |
| 5 | 01643-31032 | WASHER | 3001- | |
| 6 | 14X-54-12860 | PIPE | 3001- | |
| 7 | 01010-51225 | BOLT | 3001- | |
| 8 | 01643-31232 | WASHER | 3001- | |
| 9 | 600-181-0610 | HOSE | 3001- | |
| 10 | 07281-01279 | CLAMP | 3001- | |
| 11 | 14X-54-12870 | BRACKET | 3001- | |
| 12 | 01010-51225 | BOLT | 3001- | |
| 13 | 01643-31232 | WASHER | 3001- | |
| 14 | 14X-54-12850 | PIPE | 3001- | |
| 15 | 14X-54-12890 | CLAMP | 3001- | |
| 16 | 01010-51035 | BOLT | 3001- | |
| 17 | 01643-31032 | WASHER | 3001- | |
| 18 | 04245-41612 | ROD | 3001- | |
| 19 | 04245-41693 | ROD | 3001- | |
| 20 | 04245-41686 | ROD | 3001- | |
| 21 | 04245-41683 | ROD | 3001- | |
| 22 | 04245-41684 | ROD | 3001- | |
| 23 | 04245-41681 | ROD | 3001- | |
| 24 | 04247-41600 | ROD | 3001- | |
| 25 | 04250-81683 | END | 3001- | |
| 26 | 01582-11613 | NUT | 3001- | |
| 27 | 01092-51665 | BOLT | 3001- | |
| 28 | 01592-31619 | NUT | 3001- | |
| 29 | 04050-14030 | PIN | 3001- |
