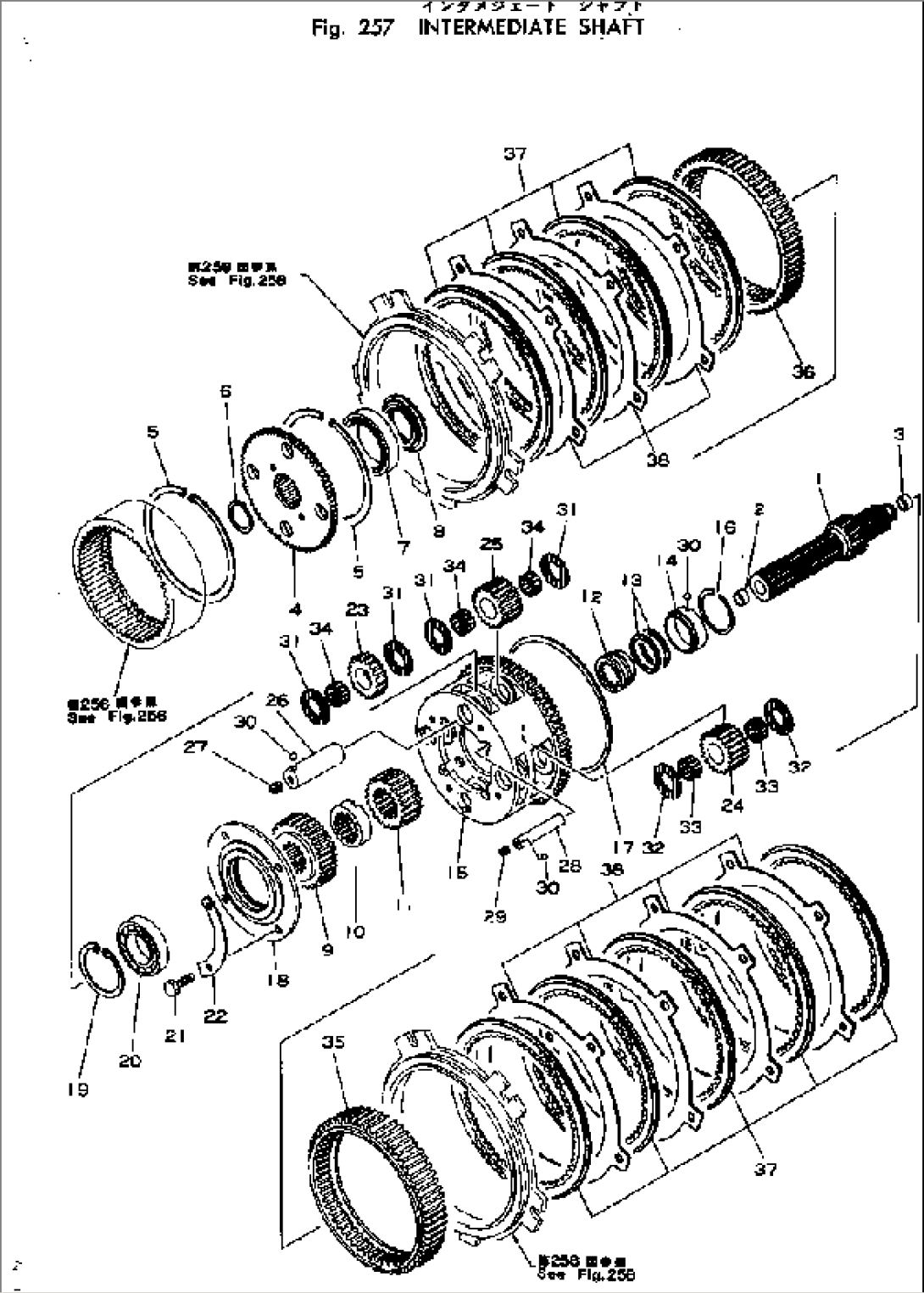

| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-01001) | TORQFLOW ASS'Y | 1059- | ||
| \0\569-15-01000 | TORQFLOW ASS'Y | 1002-1058 | ||
| (569-15-00010) | TRANSMISSION ASS'Y | 1002- | ||
| 569-15-00060 | SHAFT ASS'Y | 1002- | ||
| 1 | \6\ | SHAFT | 1002- | |
| 2 | 568-15-12940 | BUSHING | 1002- | |
| 3 | 281-15-12890 | RING | 1002- | |
| 4 | 569-15-12221 | GEAR | 1002- | |
| 5 | 04071-00260 | RING | 1002- | |
| 6 | 04064-06320 | RING | 1002- | |
| 7 | 06000-06020 | BEARING | 1002- | |
| 8 | 569-15-12260 | SPACER | 1002- | |
| 9 | 569-15-12240 | GEAR | 1002- | |
| 10 | 569-15-12230 | SPACER | 1002- | |
| 11 | 569-15-12250 | GEAR | 1002- | |
| 12 | 569-15-12280 | COLLAR | 1002- | |
| 13 | 281-15-12830 | RING | 1002- | |
| 14 | 569-15-12370 | CAGE | 1002- | |
| 15 | 569-15-12350 | CARRIER | 1002- | |
| 16 | 04065-01030 | RING | 1002- | |
| 17 | 287-15-19520 | RING | 1002- | |
| 18 | 569-15-12340 | CAGE | 1002- | |
| 19 | 130-09-15152 | RING | 1002- | |
| 20 | 06000-06017 | BEARING | 1002- | |
| 21 | 01010-51020 | BOLT | 1002- | |
| 22 | 566-15-12470 | LOCK | 1002- | |
| 23 | 569-15-12420 | GEAR | 1002- | |
| 24 | 569-15-12440 | GEAR | 1002- | |
| 25 | 569-15-12450 | GEAR | 1002- | |
| 25 | 569-15-00080 | SHAFT ASS'Y | 1002- | |
| 26 | \6\ | SHAFT | 1002- | |
| 27 | 175-15-11231 | PLUG | 1002- | |
| 27 | 569-15-00090 | SHAFT ASS'Y | 1002- | |
| 28 | \6\ | SHAFT | 1002- | |
| 29 | 175-15-11231 | PLUG | 1002- | |
| 30 | 04260-00635 | BALL | 1002- | |
| 31 | 566-15-12553 | WASHER | 1002- | |
| 32 | 287-15-12550 | WASHER | 1002- | |
| 33 | 569-15-19110 | BEARING | 1002- | |
| 34 | 566-15-19120 | BEARING | 1002- | |
| 35 | 569-15-12622 | GEAR | 1002- | |
| (\2\569-15-12621) | GEAR | (1002-1161) | ||
| 36 | 569-15-12631 | GEAR | 1002- | |
| 37 | 287-15-12710 | DISC | 1002- | |
| 38 | 287-15-12720 | PLATE | 1002- |
