| Item | Part No. | Part Name | Qty | Serial No. |
| (175-14-00174) | TRANSMISSION ASS'Y | (03199)- | ||
| \0\175-14-00173 | TRANSMISSION ASS'Y | 8022-(03198) | ||
| \0\175-14-00172 | TRANSMISSION ASS'Y | 6986-8021 | ||
| \0\175-14-00171 | TRANSMISSION ASS'Y | 6985-6985 | ||
| \0\175-14-00172 | TRANSMISSION ASS'Y | 6982-6984 | ||
| \0\175-14-00171 | TRANSMISSION ASS'Y | 6091-6981 | ||
| \0\175-14-00170 | TRANSMISSION ASS'Y | 5508-6090 | ||

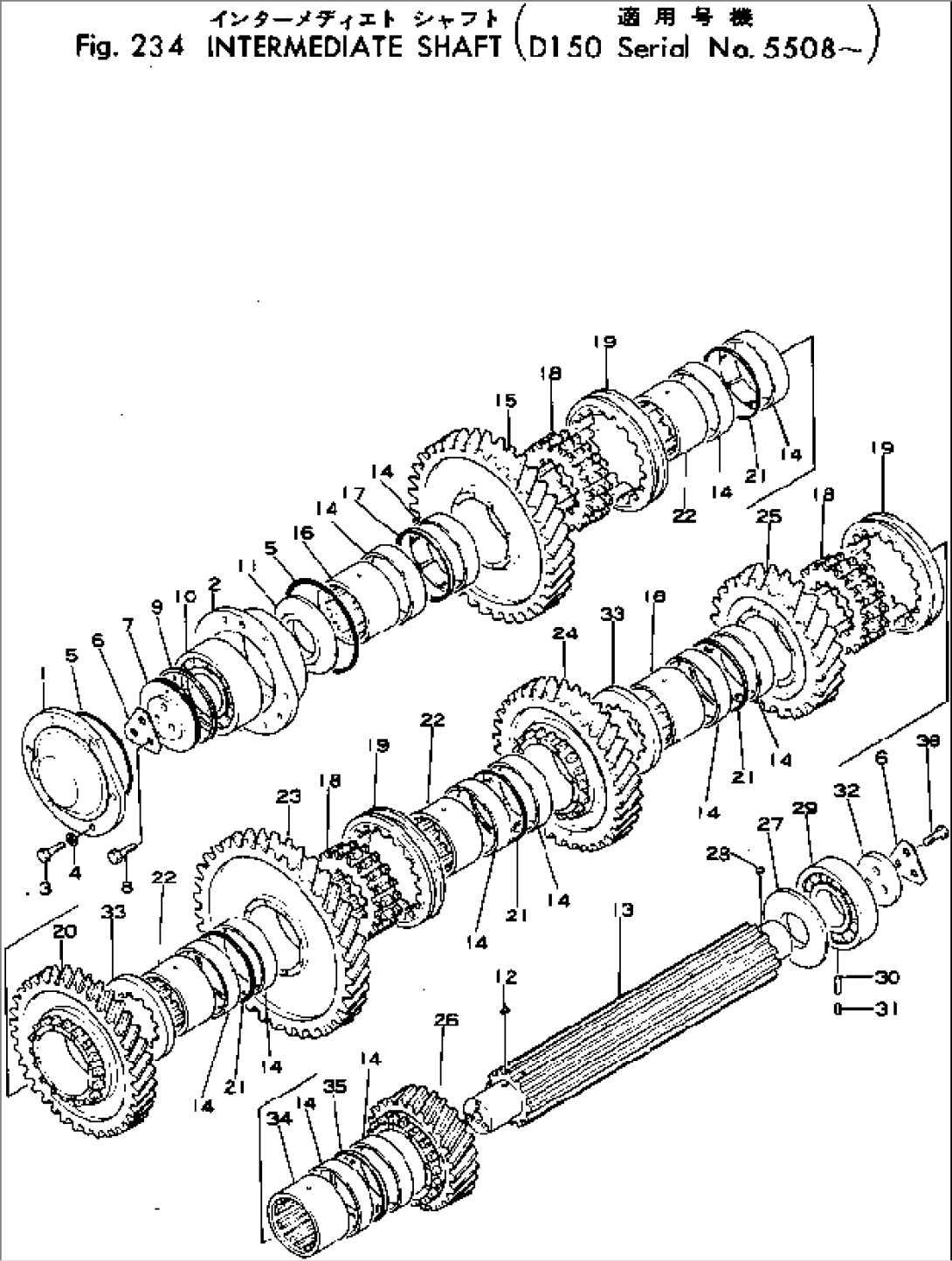

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.231 TO 237. | ||||
| 1 | 170-14-43130 | COVER | 5508- | |
| 2 | 170-14-43120 | CAGE | 5508- | |
| 3 | 01010-31040 | BOLT | 6091- | |
| 3 | 01040-31040 | BOLT | 5508-6090 | |
| 4 | 01602-01030 | WASHER | 5508- | |
| 5 | 07000-05150 | O-RING (KIT) | 5508- | |
| 6 | 170-14-15140 | LOCK (KIT) | 5508- | |
| 7 | 170-14-15151 | HOLDER | 5508- | |
| 8 | 01010-31235 | BOLT | 6091- | |
| 8 | 01040-31235 | BOLT | 5508-6090 | |
| 9 | 170-14-15161 | RING | 5508- | |
| 10 | 06030-22312 | BEARING | 5508- | |
| 11 | 175-14-15530 | COLLAR | 5508- | |
| 12 | 04000-00510 | KEY | 5508- | |
| 13 | 175-14-15540 | SHAFT | 5508- | |
| 14 | 170-14-14250 | BUSHING | 5508- | |
| 15 | 170-14-43140 | GEAR | 5508- | |
| 16 | 175-14-15580 | RACE | 5508- | |
| 17 | 175-14-15590 | COLLAR | 5508- | |
| 18 | 170-14-14281 | GEAR | 5508- | |
| 19 | 170-14-14291 | GEAR, 22 TEETH | 5508- | |
| 20 | 170-14-43150 | GEAR | 5508- | |
| 21 | 175-14-15710 | COLLAR | 5508- | |
| 22 | 175-14-15720 | RACE | 5508- | |
| 23 | 170-14-43161 | GEAR | 8022- | |
| 23 | \3\170-14-43160 | GEAR | 5508-8021 | |
| (170-14-44151,170-14-43161) | ||||
| 24 | 170-14-43170 | GEAR | 5508- | |
| 25 | 170-14-43180 | GEAR | 5508- | |
| 26 | 170-14-43190 | GEAR | 5508- | |
| 27 | 175-14-15680 | COLLAR | 5508- | |
| 28 | 04000-00510 | KEY | 5508- | |
| 29 | 130-09-13171 | BEARING | 5508- | |
| 30 | 170-14-43212 | PIN | (03199)- | |
| 30 | 170-14-43211 | PIN | 6091-(03198) | |
| 30 | 170-14-43210 | PIN | 5508-6090 | |
| 31 | 170-14-43220 | SCREW | (03199)- | |
| 31 | 170-14-14470 | SCREW | 5508-(03198) | |
| 32 | 170-14-15681 | HOLDER | 5508- | |
| 33 | 170-14-14321 | COLLAR | 5508- | |
| 34 | 175-14-15620 | RACE | 5508- | |
| 35 | 175-14-15630 | COLLAR | 5508- | |
| 36 | 01010-31230 | BOLT | 6091- | |
| 36 | 01040-31230 | BOLT | 5508-6090 |
