| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-46-13680 | BAR | A11001-- | |
| 2 | 56B-46-13810 | PIN | A11001-- | |
| 3 | 04050-00070 | PIN, COTTER | A11001-- | |
| 4 | 56B-46-13820 | PIN | A11001-- | |
| 5 | 426-46-12280 | PIN, LINCH | A11001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n a11001 up
- Main/revolving frame and related parts
- J3250 01a0 articulate lock bar
Поиск по каталогу

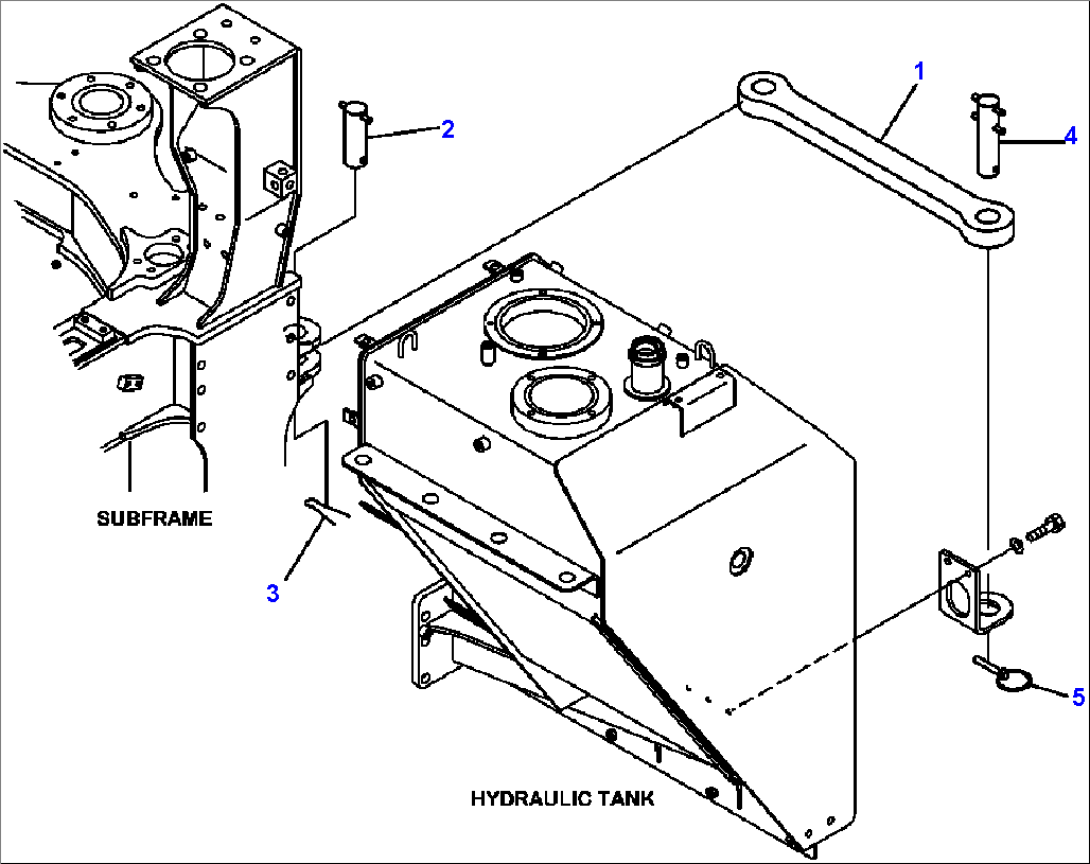

J3250-01A0 ARTICULATE LOCK BAR
