| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-46-42300 | FRAME, REAR | A48001-- | |
| 2 | 421-46-42160 | GUARD | A48001-- | |
| 3 | 01010-81640 | BOLT | A48001-- | |
| 4 | 01643-31645 | WASHER | A48001-- | |
| 5 | 01016-52080 | BOLT | A48001-- | |
| 6 | 01643-32060 | WASHER | A48001-- | |
| 7 | 01580-12016 | NUT | A48001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a48001 up
- Main/revolving frame and related parts
- J4120 01a0 frame rear
Поиск по каталогу

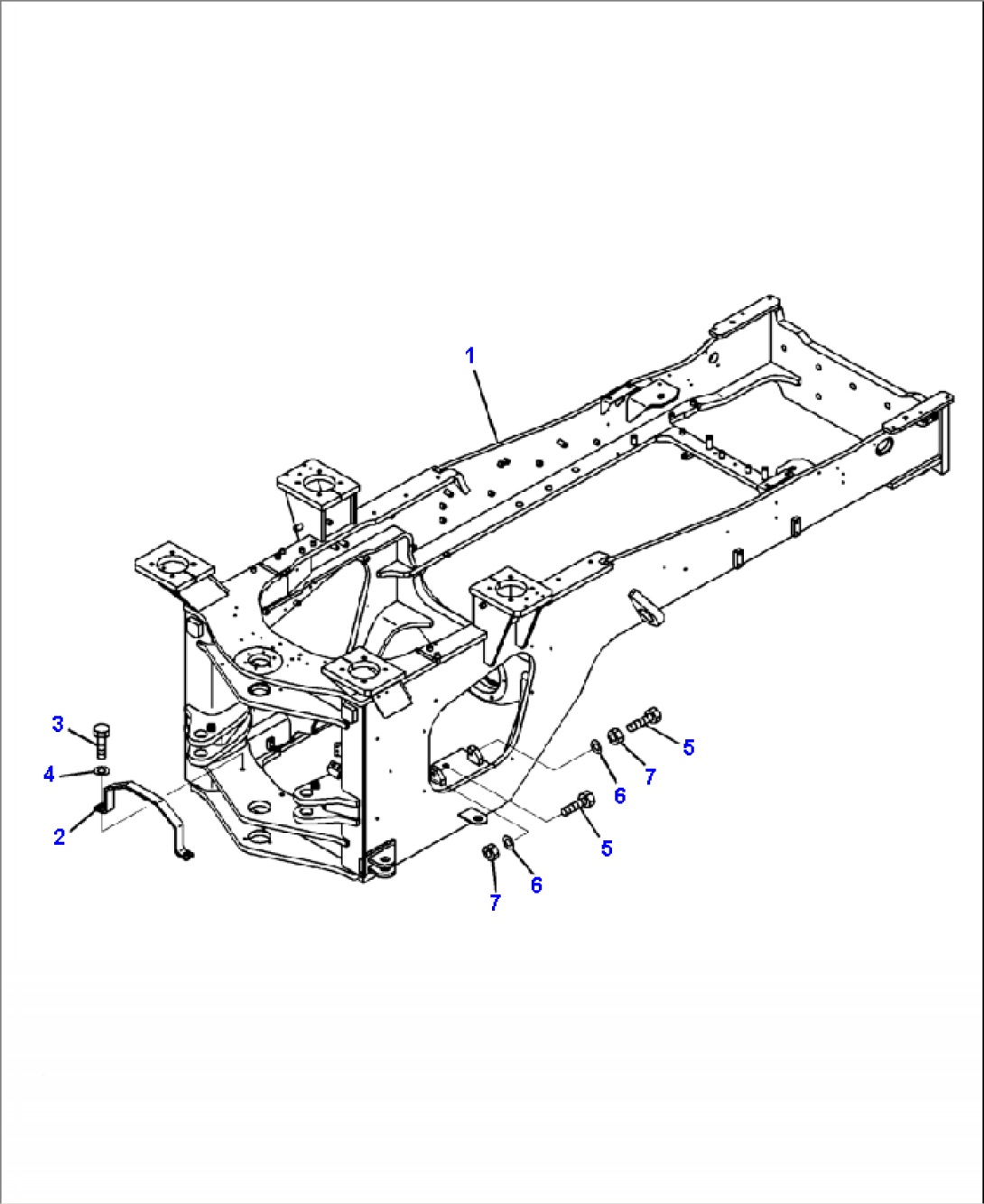

J4120-01A0 FRAME REAR
