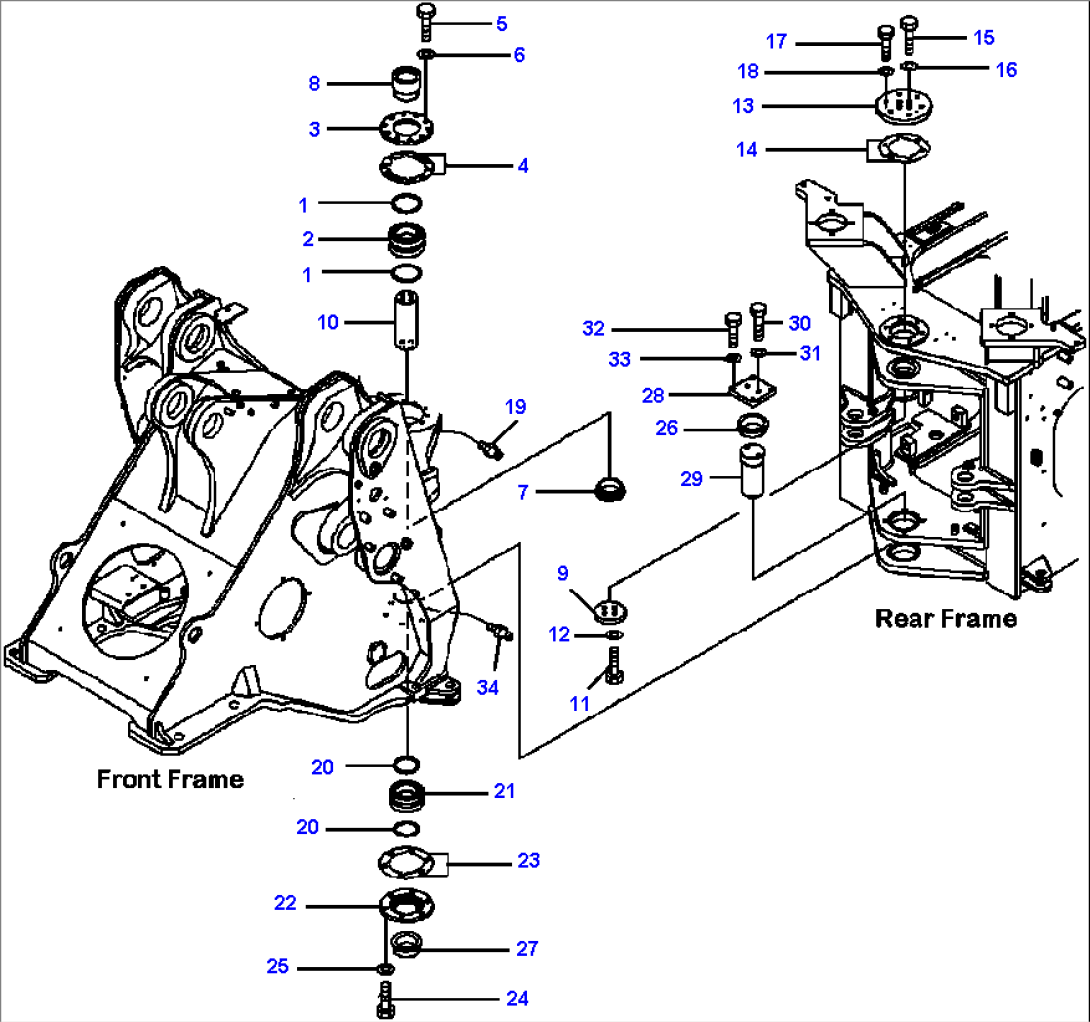

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-09-11350 | SEAL, DUST | A92001-- | |
| 2 | 425-46-11560 | BEARING, HINGE | A92001-- | |
| 3 | 425-46-11460 | RETAINER | A92001-- | |
| 4 | 425-46-11471 | SHIM, 0.1 MM | A92001-- | |
| N/I | 425-46-11481 | SHIM, 0.5 MM | A92001-- | |
| 5 | 01010-61445 | BOLT | A92001-- | |
| 6 | 01643-31445 | WASHER | A92001-- | |
| 7 | 425-46-11421 | BUSHING | A92001-- | |
| 8 | 425-46-11431 | BUSHING | A92001-- | |
| 9 | 425-46-31211 | PLATE | A92001-- | |
| 10 | 425-46-31220 | PIN | A92001-- | |
| 11 | 01010-61895 | BOLT | A92001-- | |
| 12 | 01643-31845 | WASHER | A92001-- | |
| 13 | 425-46-31290 | RETAINER | A92001-- | |
| 14 | 425-46-11531 | SHIM, 0.1 MM | A92001-- | |
| N/I | 425-46-11541 | SHIM, 0.5 MM | A92001-- | |
| 15 | 01010-61895 | BOLT | A92001-- | |
| 16 | 01643-31845 | WASHER | A92001-- | |
| 17 | 01010-61655 | BOLT | A92001-- | |
| 18 | 01643-31645 | WASHER | A92001-- | |
| 19 | 07020-00000 | FITTING, GREASE | A92001-- | |
| 20 | 425-46-11280 | SEAL | A92001-- | |
| 21 | 425-46-11310 | BEARING | A92001-- | |
| 22 | 425-46-31230 | RETAINER | A92001-- | |
| 23 | 425-46-31270 | SHIM, 0.1 MM | A92001-- | |
| N/I | 425-46-31280 | SHIM, 0.5 MM | A92001-- | |
| 24 | 01010-61645 | BOLT | A92001-- | |
| 25 | 01643-31645 | WASHER | A92001-- | |
| 26 | 425-46-11230 | BUSHING | A92001-- | |
| 27 | 425-46-31260 | COLLAR | A92001-- | |
| 28 | 425-46-31240 | BRACKET | A92001-- | |
| 29 | 425-46-31250 | PIN, COUPLING | A92001-- | |
| 30 | 01010-61650 | BOLT | A92001-- | |
| 31 | 01643-31645 | WASHER | A92001-- | |
| 32 | 01010-61665 | BOLT | A92001-- | |
| 33 | 01643-31645 | WASHER | A92001-- | |
| 34 | 07020-00000 | FITTING, GREASE | A92001-- |
