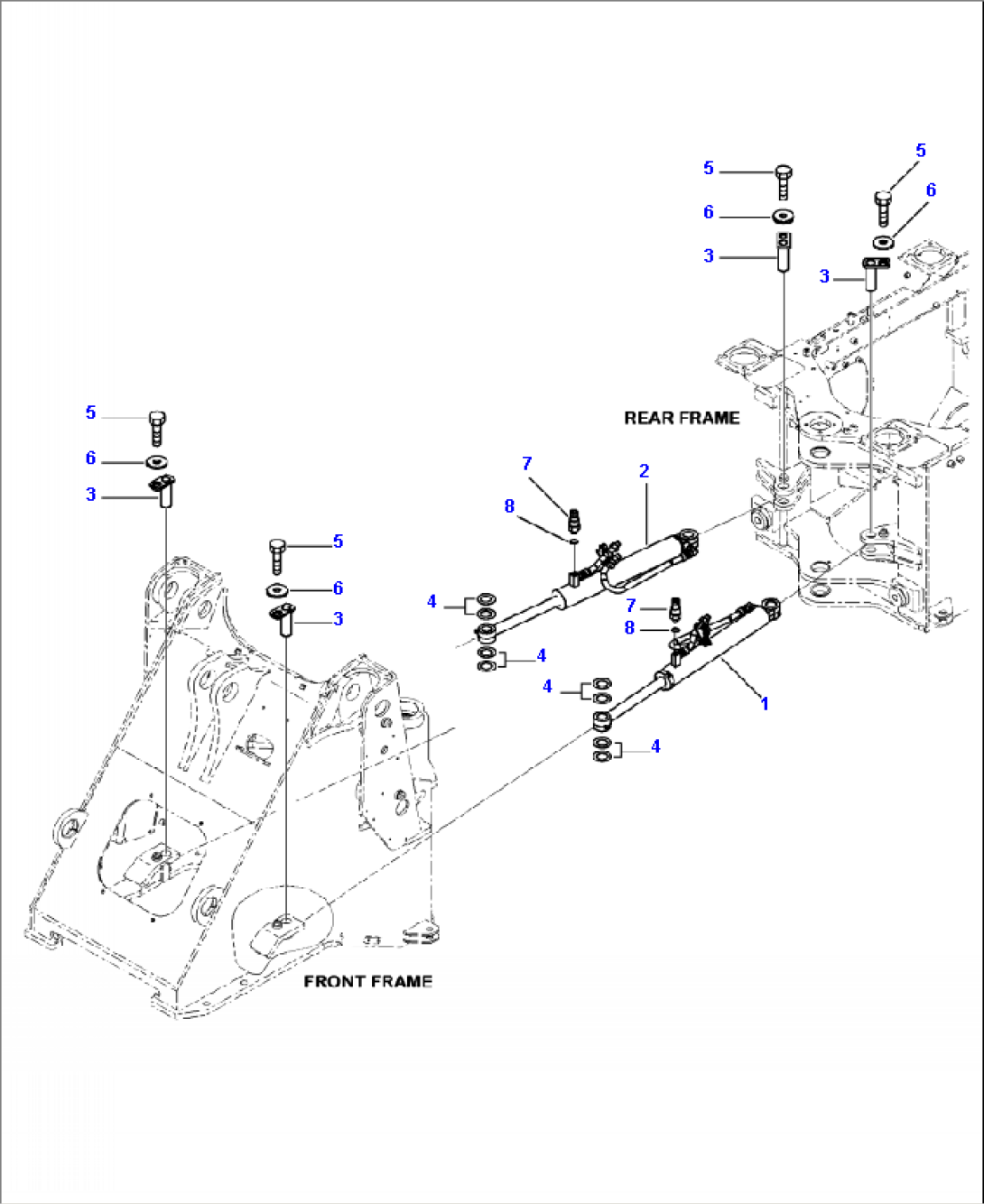

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CYLINDER ASSEMBLY (SEE FIG. J4140-02A0) | A76001-- | ||
| 2 | CYLINDER ASSEMBLY (SEE FIG. J4140-03A0) | A76001-- | ||
| 3 | 418-46-42260 | PIN | A76001-- | |
| 4 | 419-46-12280 | SHIM, 1.0 MM | A76001-- | |
| 419-46-12290 | SHIM, 0.5 MM | A76001-- | ||
| 5 | 01010-81220 | BOLT | A76001-- | |
| 6 | 175-54-34170 | WASHER | A76001-- | |
| 7 | 799-101-5220 | NIPPLE | A76001-- | |
| 8 | 07002-11023 | O-RING | A76001-- |
