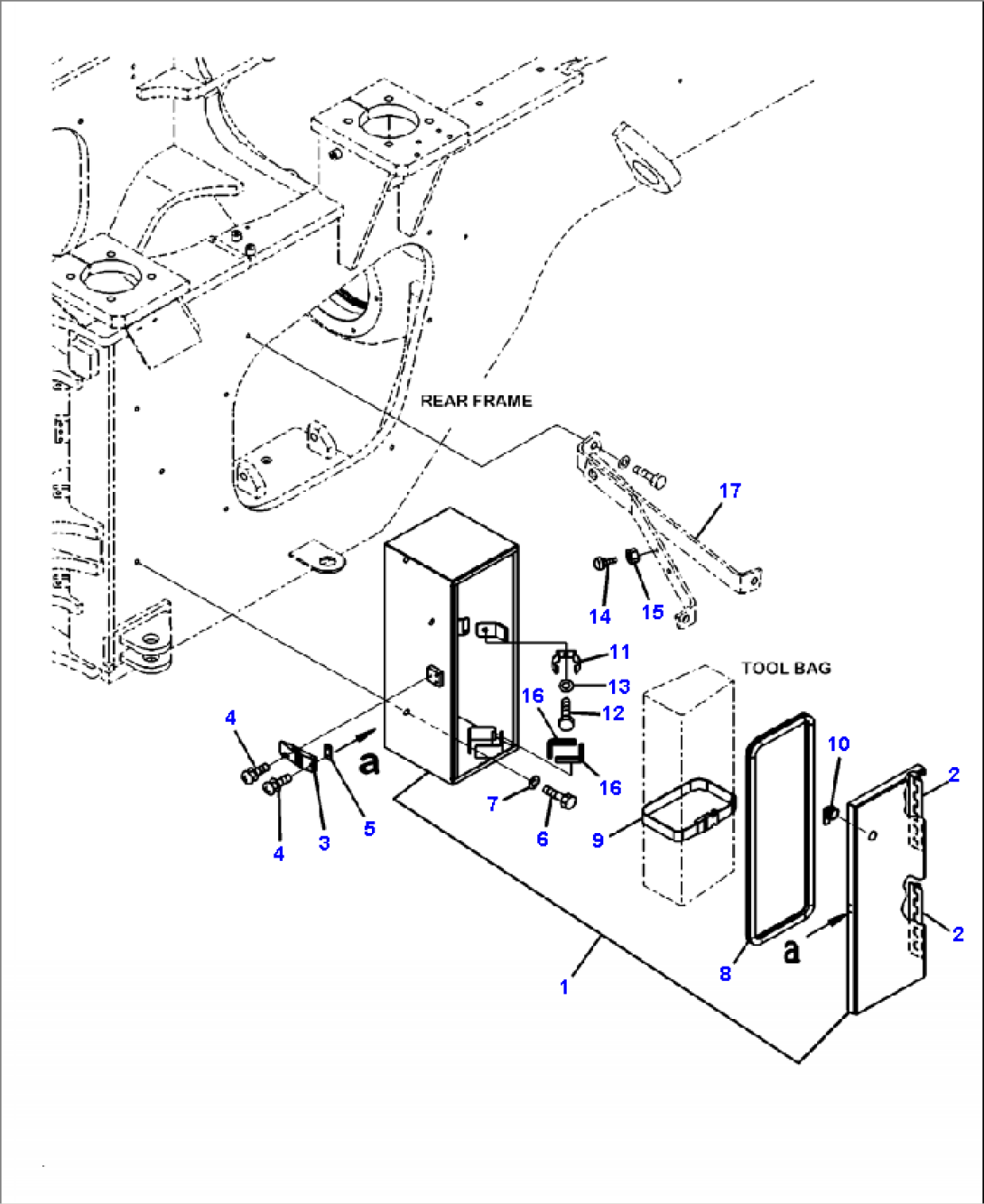

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-46-44391 | TOOL BOX | A47001-- | |
| 2 | 424-54-14120 | HINGE | A47001-- | |
| 3 | 421-09-12322 | HOLDER | A47001-- | |
| 4 | 01023-70412 | SCREW | A47001-- | |
| 5 | 419-09-11440 | PLATE | A47001-- | |
| 6 | 01010-81235 | BOLT | A47001-- | |
| 7 | 01643-31232 | WASHER | A47001-- | |
| 8 | 424-46-44320 | SEAL | A47001-- | |
| 9 | 423-54-42790 | BAND | A47001-- | |
| 10 | 205-60-71220 | LOCK ASSEMBLY | A47001-- | |
| 11 | 417-54-21460 | SPRING | A47001-- | |
| 12 | 01010-80816 | BOLT | A47001-- | |
| 13 | 01643-30823 | WASHER | A47001-- | |
| 14 | 203-54-63830 | STOPPER | A47001-- | |
| 15 | 01580-11008 | NUT | A47001-- | |
| 16 | 421-46-44410 | FINISHER | A47001-- | |
| 17 | BRACKET ( SEE FIG. M4310-03A0 ) | A47001-- |
