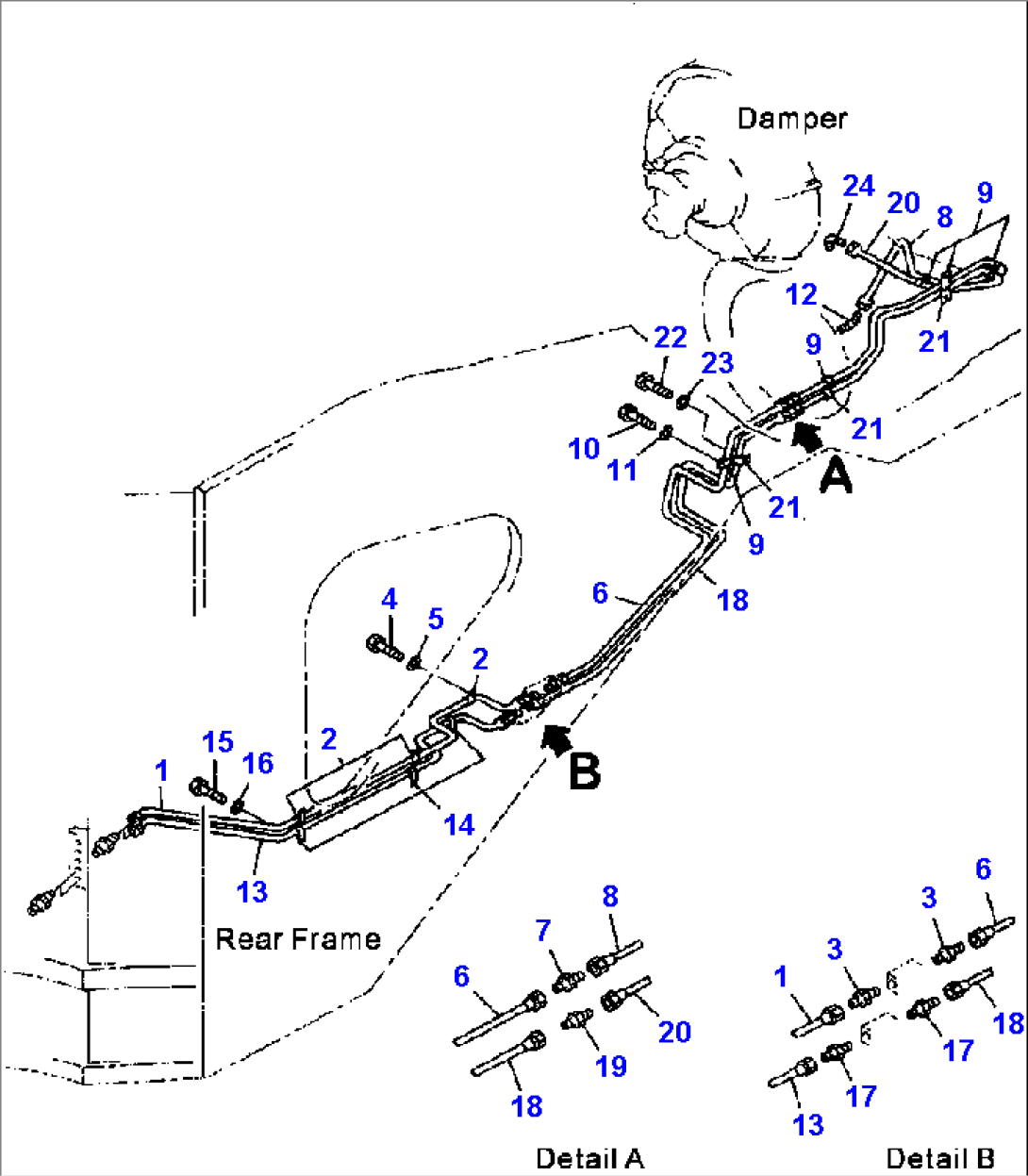

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-46-16143 | TUBE | A50001-- | |
| 2 | 425-70-13120 | CLIP | A50001-- | |
| 3 | 07214-70710 | CONNECTOR | A50001-- | |
| 4 | 01010-51020 | BOLT | A50001-- | |
| 5 | 01643-31032 | WASHER | A50001-- | |
| 6 | 427-46-16331 | TUBE | A50001-- | |
| 7 | 427-46-16410 | CONNECTOR | A50001-- | |
| 8 | 427-46-26110 | TUBE | A50001-- | |
| 9 | 425-70-13120 | CLIP | A50001-- | |
| 10 | 01010-51020 | BOLT | A50001-- | |
| 11 | 01643-31032 | WASHER | A50001-- | |
| 12 | 07217-70712 | ELBOW | A50001-- | |
| 13 | 427-46-16153 | TUBE | A50001-- | |
| 14 | 425-70-13120 | CLIP | A50001-- | |
| 15 | 01010-51020 | BOLT | A50001-- | |
| 16 | 01643-31032 | WASHER | A50001-- | |
| 17 | 07214-70710 | CONNECTOR | A50001-- | |
| 18 | 427-46-16361 | TUBE | A50001-- | |
| 19 | 427-46-16410 | CONNECTOR | A50001-- | |
| 20 | 427-46-26120 | TUBE | A50001-- | |
| 21 | 425-70-13120 | CLIP | A50001-- | |
| 22 | 01010-51020 | BOLT | A50001-- | |
| 23 | 01643-31032 | WASHER | A50001-- | |
| 24 | 07217-70712 | ELBOW | A50001-- |
