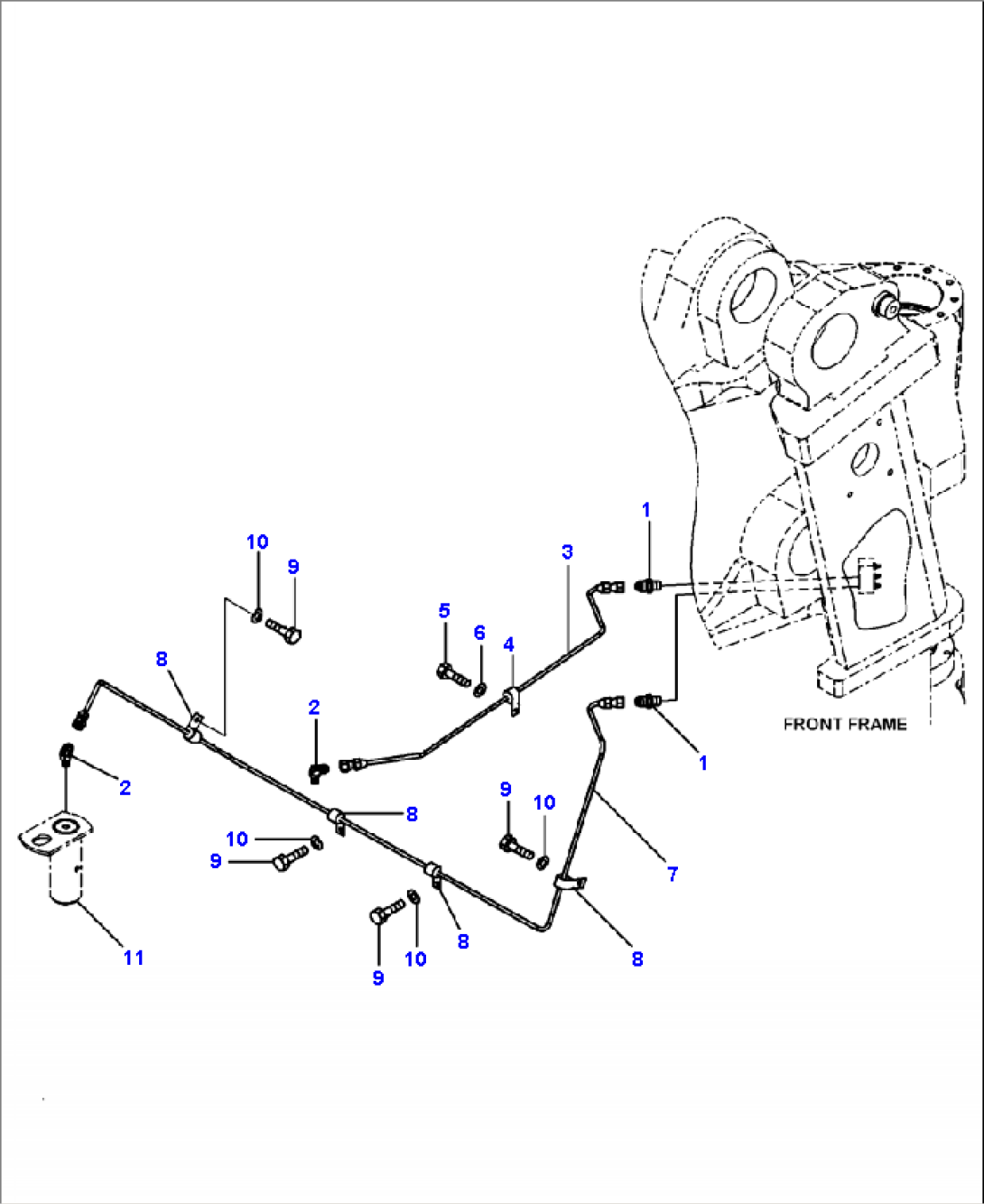

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-09-12110 | CONNECTOR | A47001-- | |
| 2 | 421-09-12540 | ELBOW | A47001-- | |
| 3 | 421-46-36222 | TUBE | A47001-- | |
| 4 | 04434-50612 | CLIP | A47001-- | |
| 5 | 01010-81016 | BOLT | A47001-- | |
| 6 | 01643-31032 | WASHER | A47001-- | |
| 7 | 421-46-46230 | TUBE | A47001-- | |
| 8 | 04434-50612 | CLIP | A47001-- | |
| 9 | 01010-81016 | BOLT | A47001-- | |
| 10 | 01643-31032 | WASHER | A47001-- | |
| 11 | PIN (SEE FIG. J4140-03A0) | A47001-- |
