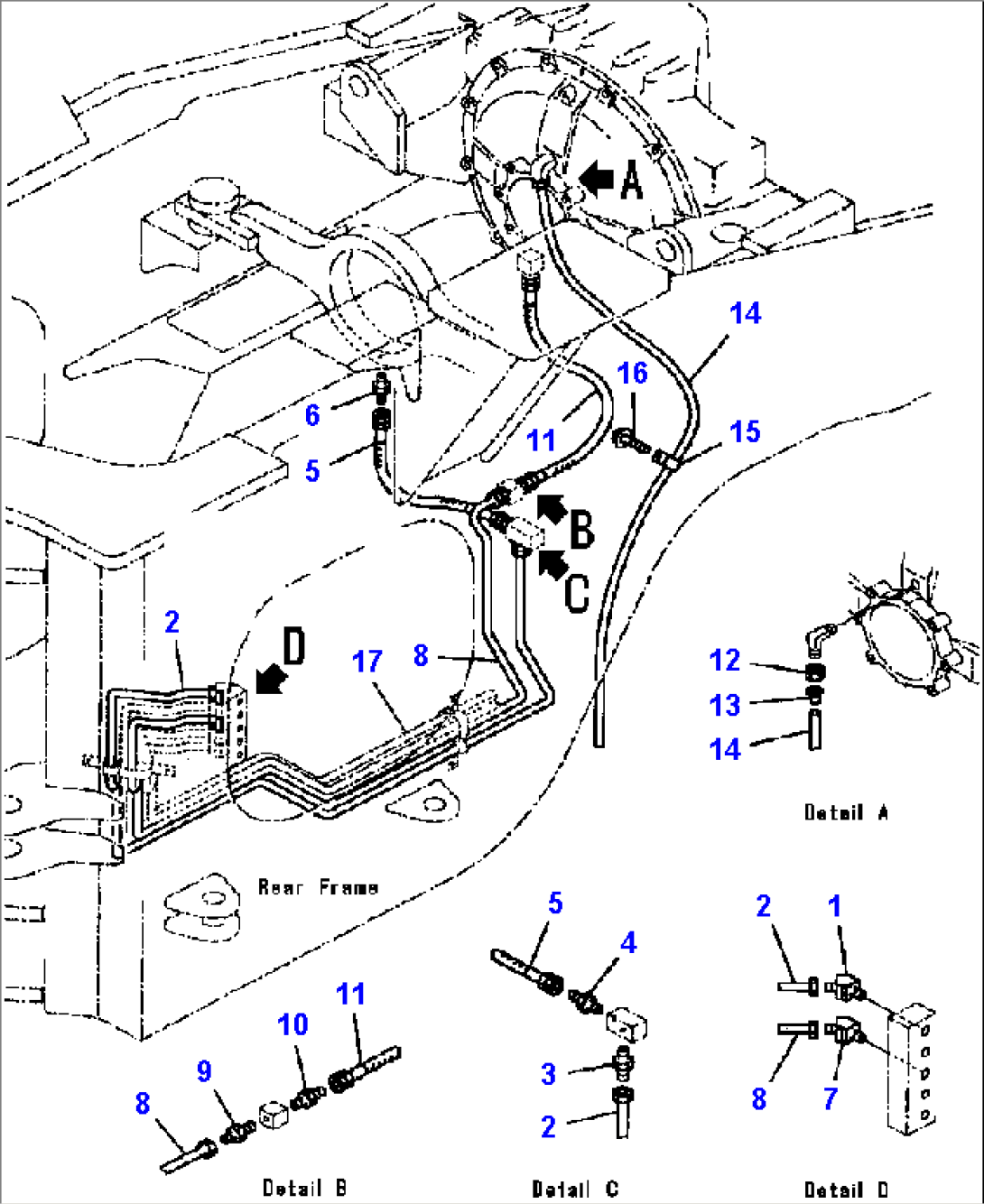

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-S95-2840 | ELBOW | A70001 -- | |
| 2 | 425-46-26220 | TUBE | A70001 -- | |
| 3 | 423-09-12110 | CONNECTOR | A70001 -- | |
| 4 | 425-46-18180 | NIPPLE | A70001 -- | |
| 5 | 425-46-28110 | HOSE | A70001 -- | |
| 6 | 21T-72-17690 | ADAPTER | A70001 -- | |
| 7 | 423-S95-2840 | ELBOW | A70001 -- | |
| 8 | 425-46-26230 | TUBE | A70001 -- | |
| 9 | 423-09-12110 | CONNECTOR | A70001 -- | |
| 10 | 425-46-18180 | NIPPLE | A70001 -- | |
| 11 | 21T-72-17740 | HOSE | A70001 -- | |
| 12 | 07832-00817 | NUT | A70001 -- | |
| 13 | 07831-00813 | SLEEVE | A70001 -- | |
| 14 | 07822-00810 | TUBE | A70001 -- | |
| 15 | 08036-01214 | CLIP | A70001 -- | |
| 16 | 01435-01016 | BOLT | A70001 -- | |
| 17 | TUBE (SEE FIG. J4710-04A0 ) | A70001 -- |
